HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
124
Appendix A Board & Wire Connections

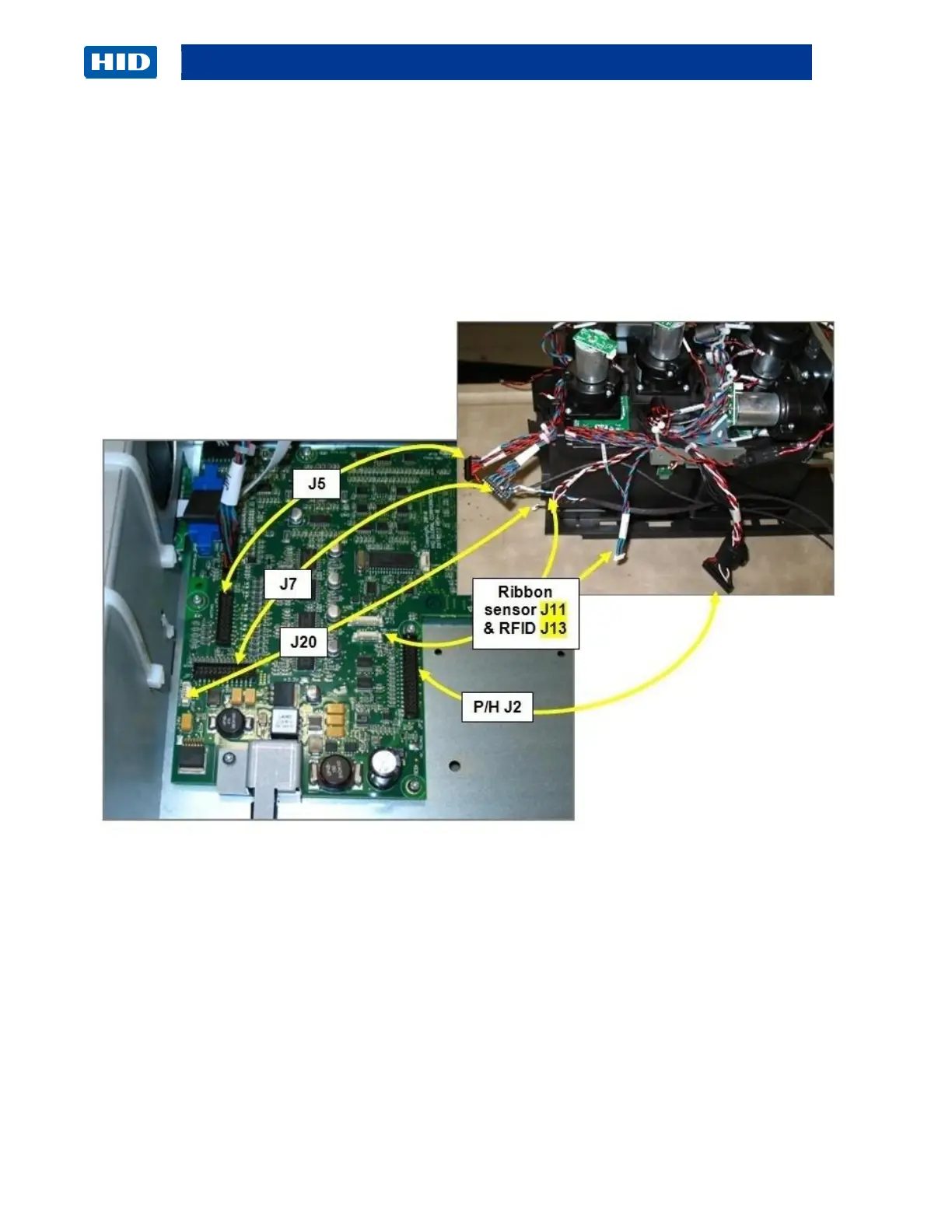

Mainboard (A940234) Cable Connection – Main Chassis
Image shown is Printer Main Chassis wire connections to the Mainboard.
