Fargo HDP8500 - Remove;Replace the Rear;Top Cover Assembly (D940089)

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
11

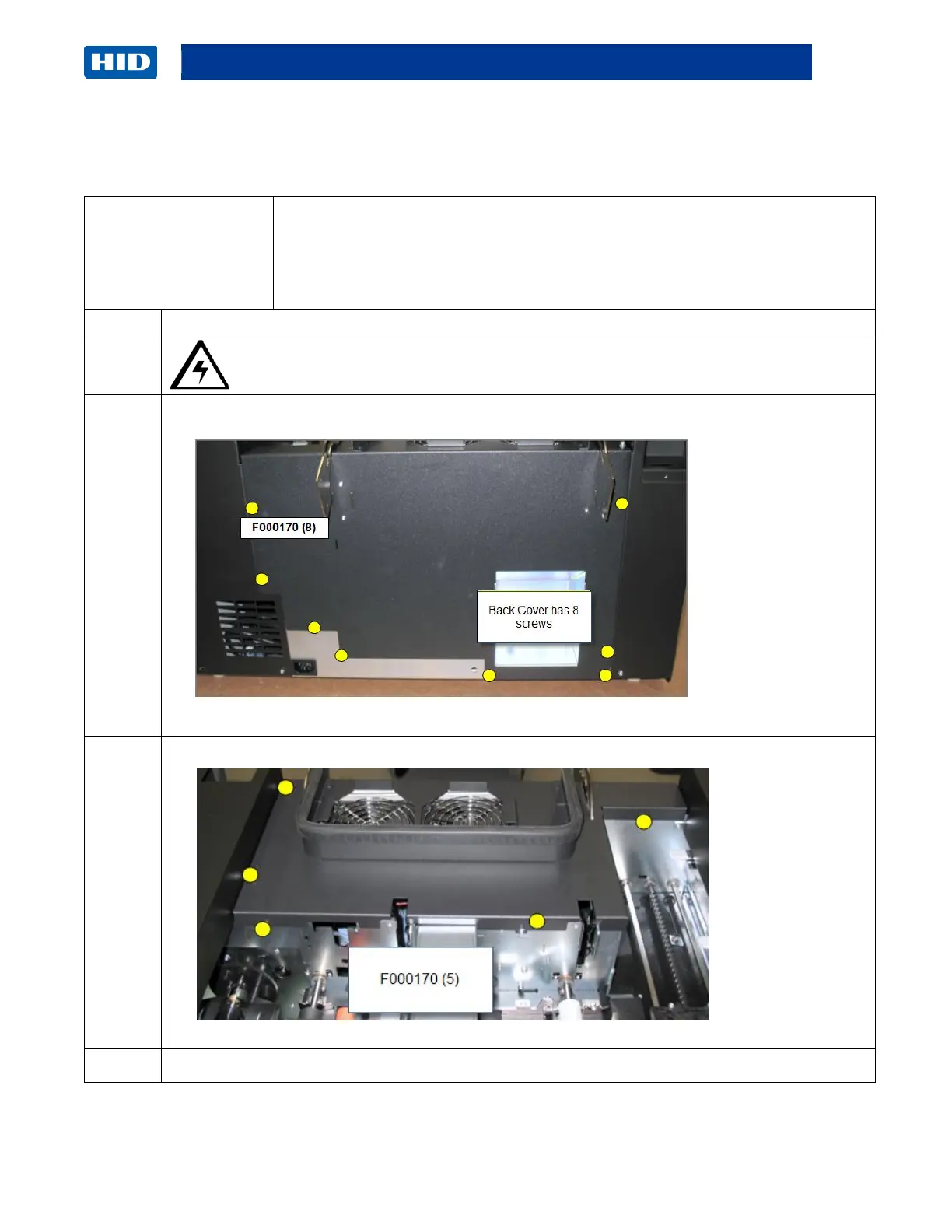

Remove/Replace the Rear/TOP Cover Assembly (D940089)
Tools needed: T10 (Torx )Driver
Estimated Time: 10 minutes
Important: This procedure can only be performed by authorized service
personnel.
Step
Procedure
1
Caution: Power off the Printer by unplugging the power cord from the Printer.
2
Remove the (8) screws (F000170) from the back side of the cover.
* When replacing the Rear Cover do not tighten this screw at this step.
3
Remove the (5) screws (F000190) from the top of the rear cover.
* When replacing the Rear Cover do not tighten this screw at this step.
4
Lift the cover up and back from the printer.
