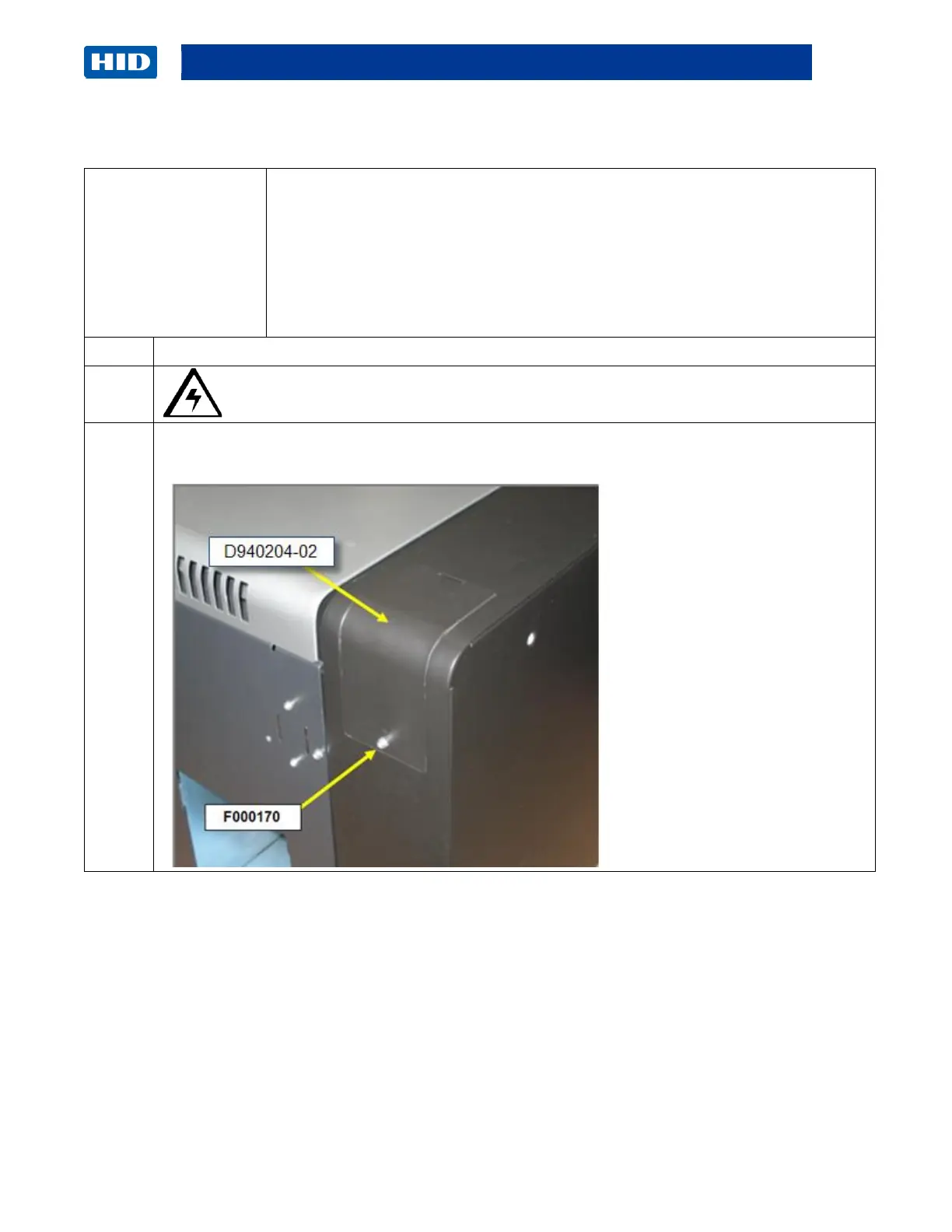

Remove/Replace the Cover Insert (D940204-02)
Tools needed: T10 Torx Driver
Estimated Time: 10 minutes
Important: This procedure can only be performed by authorized service
personnel.
Note: This is where the ANDON Light Upgrade is installed.
Caution: Power off the Printer by unplugging the power cord from the Printer.
Remove the (1) screws (F000170) T10 (Torx )Driver,
The upper tab fits into the frame slot
To Next Page
