6

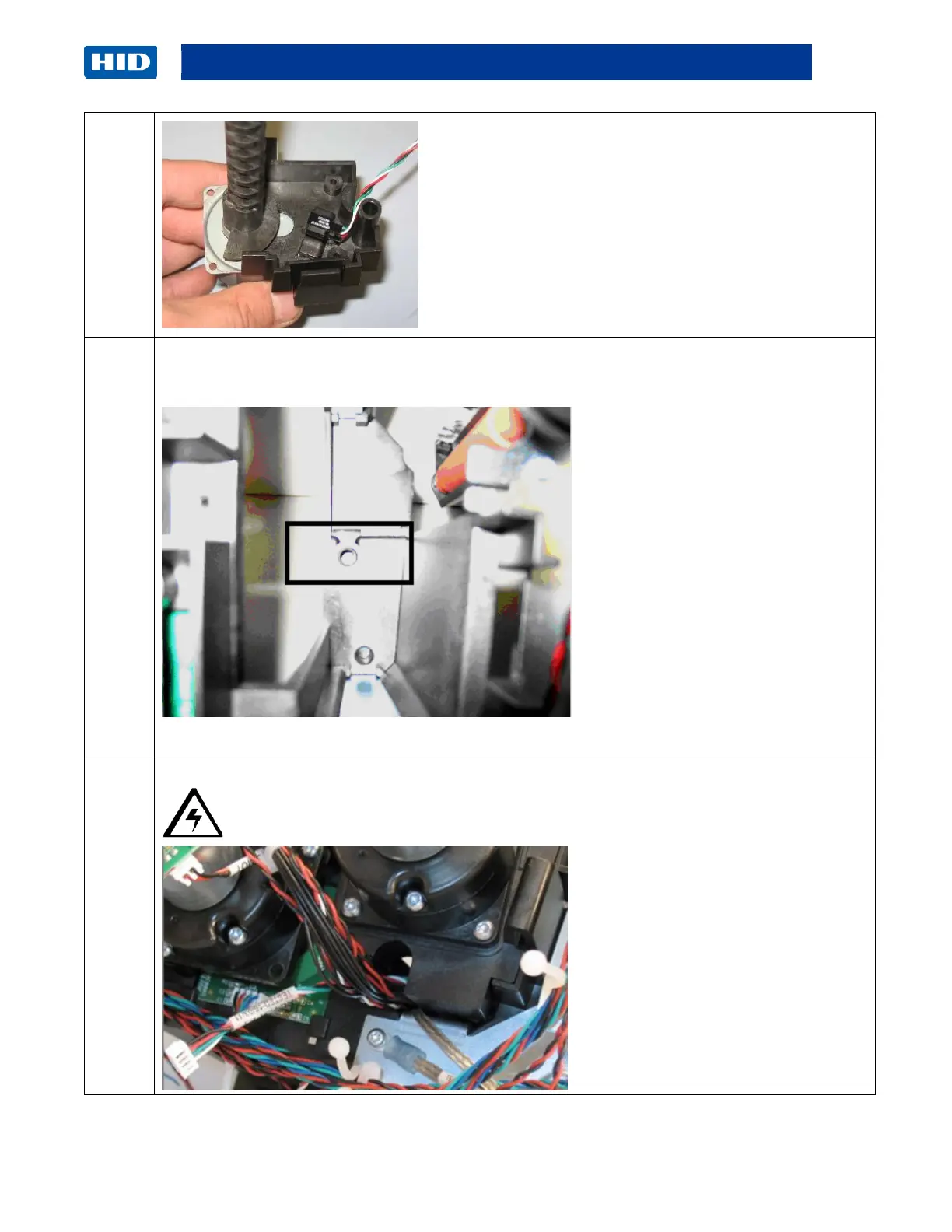

Replace the Headlift Motor.
Ensure the Shaft tab fits in to the hole provided in the Frame.
Note: Turn the shaft so the FLAG is within the sensor, then insert.
7
Reverse the instructions to re-assemble.
Caution: Do not pinch the wires. Note how wires are feed through.
