Step
Procedure
3

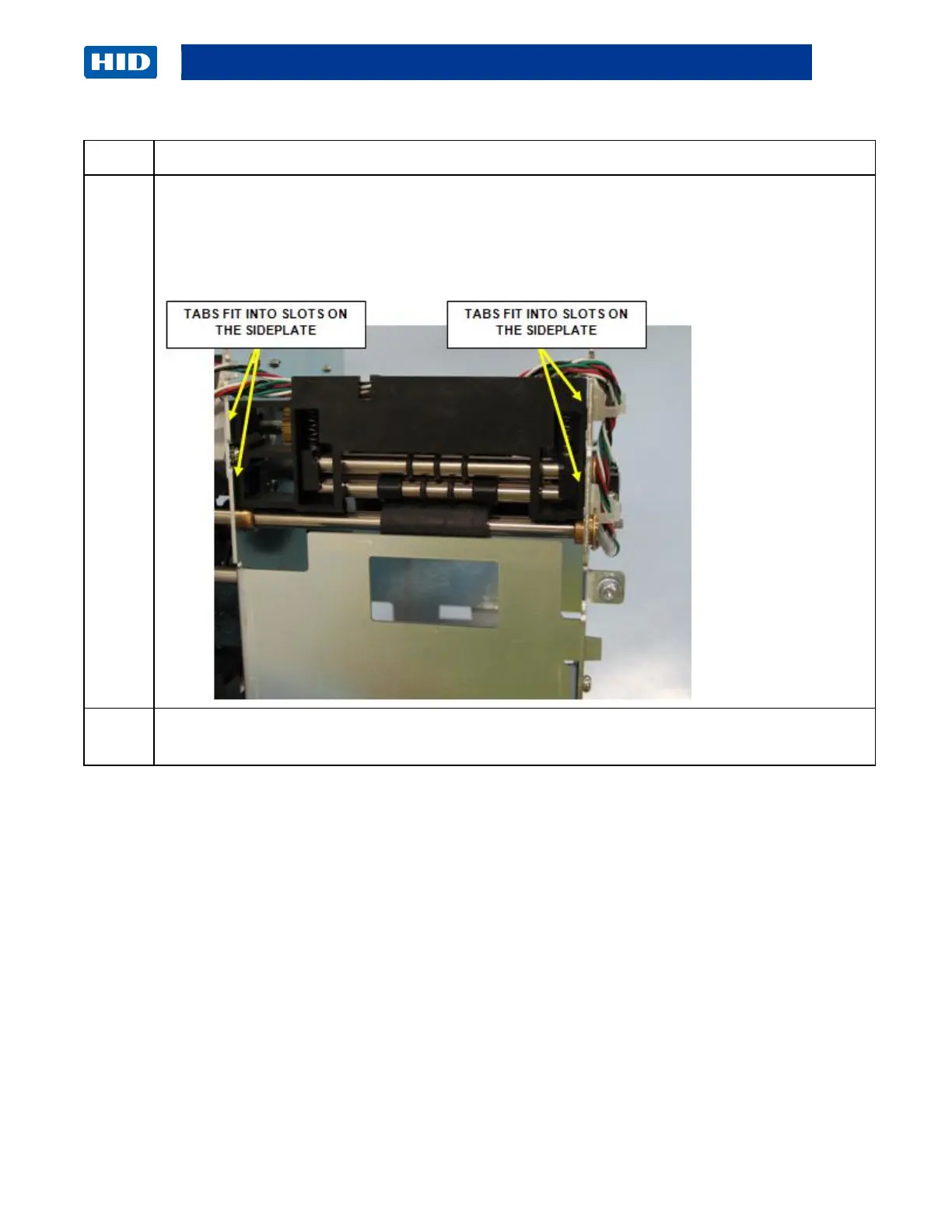

The Output Roller Assembly (D910404) clips into the two (2) slots on either side of the Frame.
Gently pull the Assembly from the Sensor side Frame just enough for the Assembly to be
pulled out from its slots.
It is not necessary to remove any other parts.
4
Reverse the instructions to re-assemble.
