Fargo HDP8500 - Flipper Output Roller Replacement

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
90

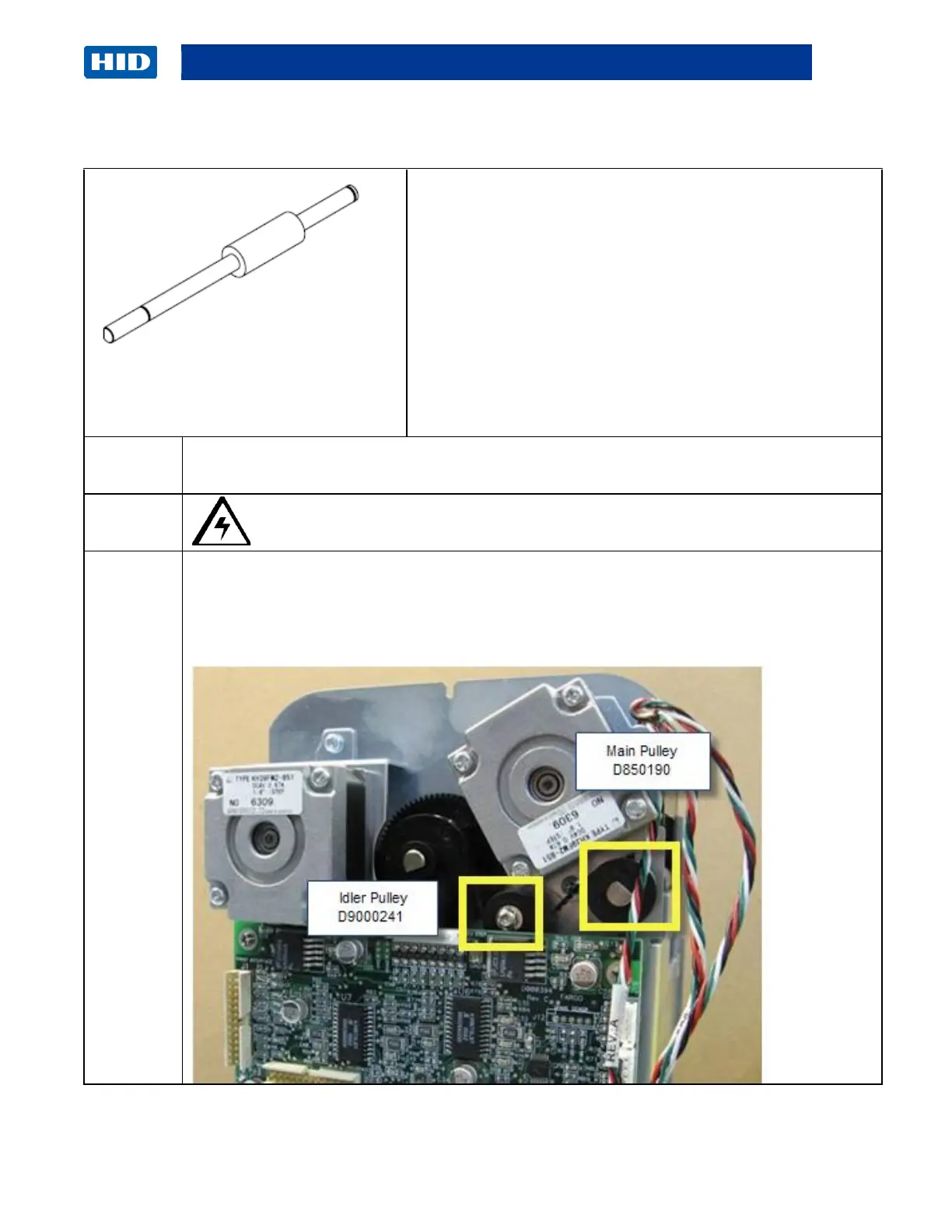

Remove/Replace the Flipper Output Roller (D900123)
Tools needed: Philip driver, E-Clip
Estimated Time: 30 minutes
Preparation: Remove Rear/Top Covers.
Remove the Front Panel
Remove the Output Cover.
Important: This procedure can only be performed by
authorized service personnel.
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the Lower Idler Pulley screw/washer to release the belt and have access to the
Roller Main Pulley.
CAUTION: Do not touch the board with the Screwdriver.
This board (4 corner screws ) may be removed for better access.
