Step
Procedure
3

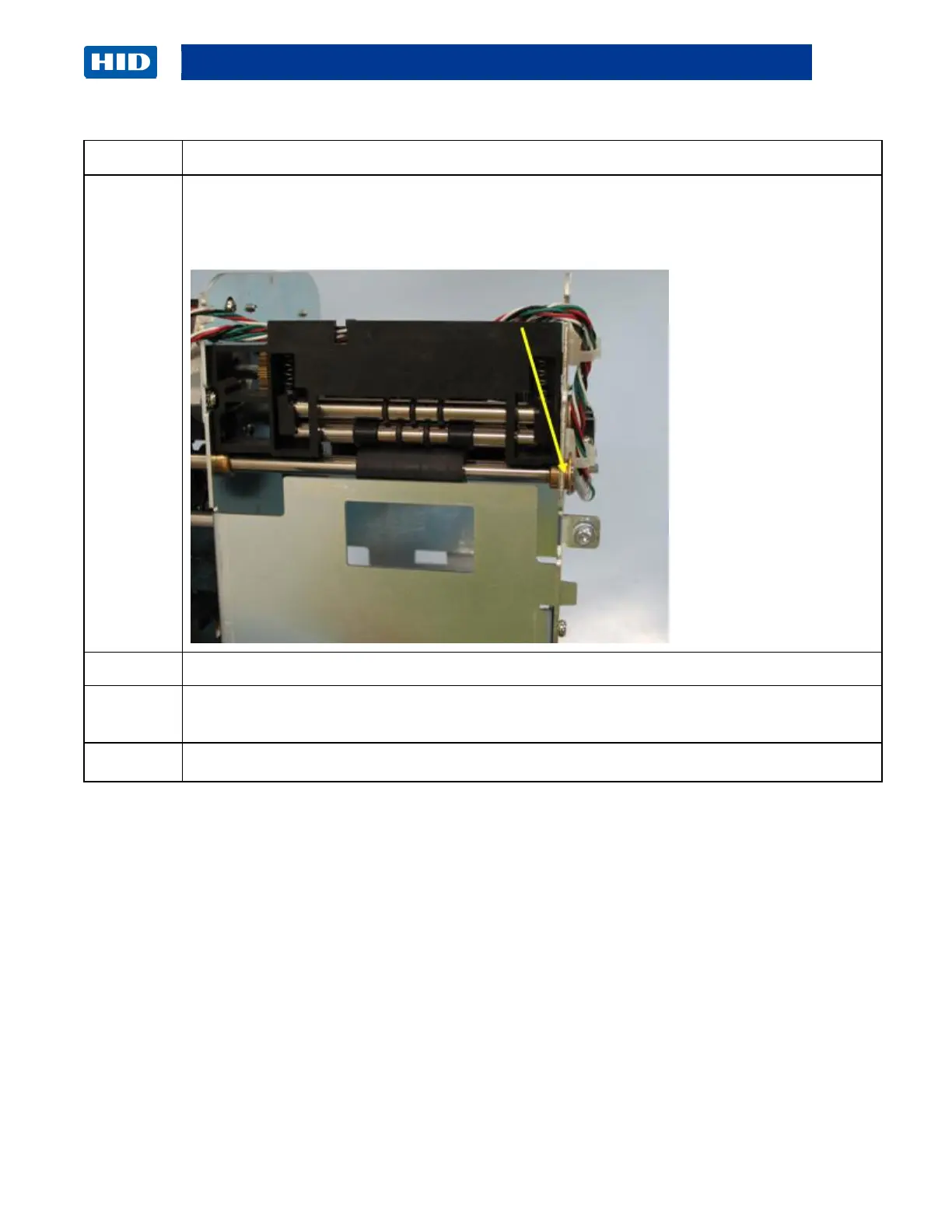

Remove the E-Clip from the Sensor side of the Flipper Table Shaft and the bushing
(760343).
NOTE: the bushing has a flat side that fits into the frame.
4
Remove the E-Clip from the Motor side and the bushing.
5
Remove the Output Roller Assembly (D910404) from the Motor side.
NOTE: Roller shaft is longer on the Motor side.
6
Reverse the instructions to re-assemble.
