HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
27
Step
Procedure
9

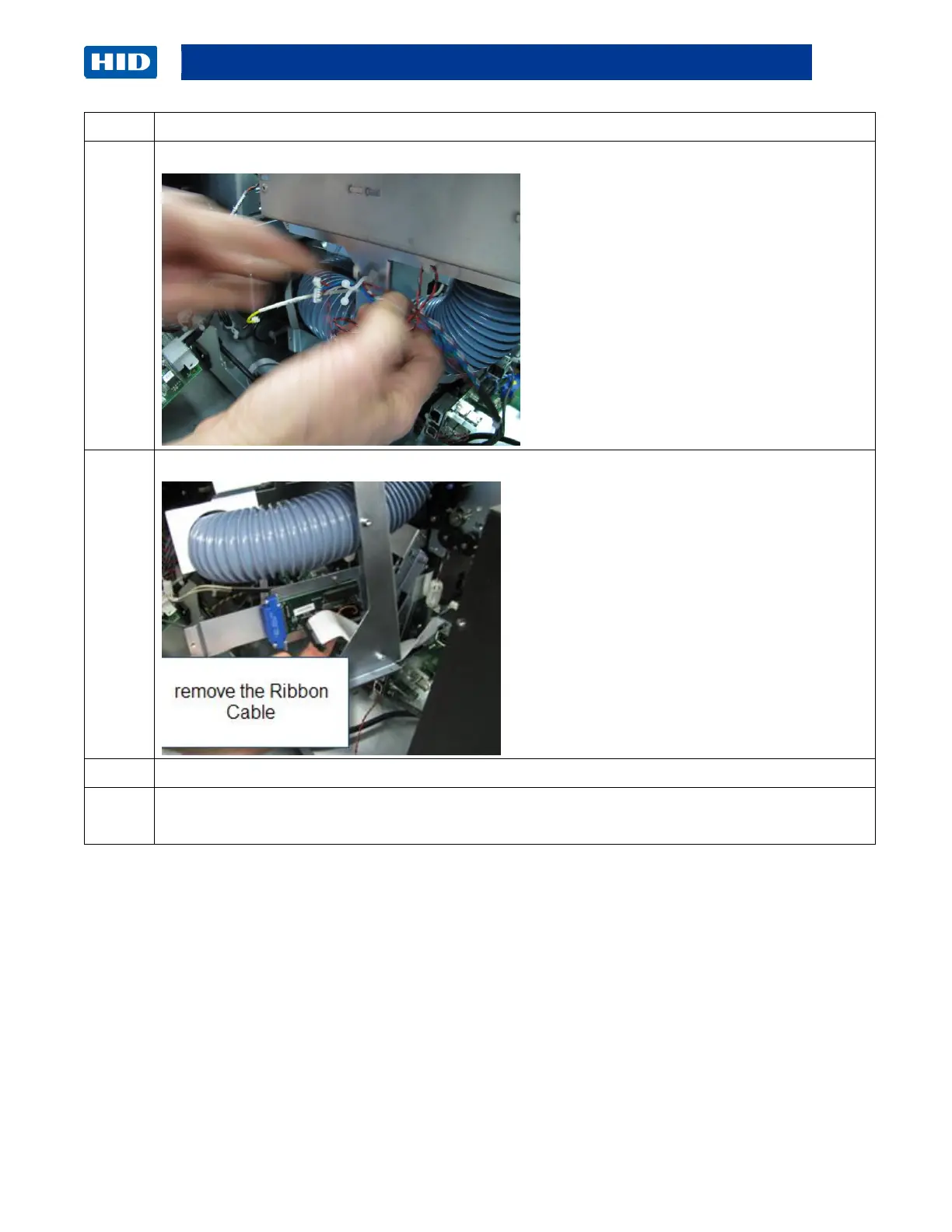

Disconnect the wires from the tie wrap on the Fan Box.
10
Disconnect the Ribbon Cable from the D000445 Board ( attached to the Fan Box Riser)
11
Remove the FAN BOX and BRACKET as one piece.
12
Reverse the instructions to re-assemble.
Refer to Appendix A for Cable Connection diagram.
