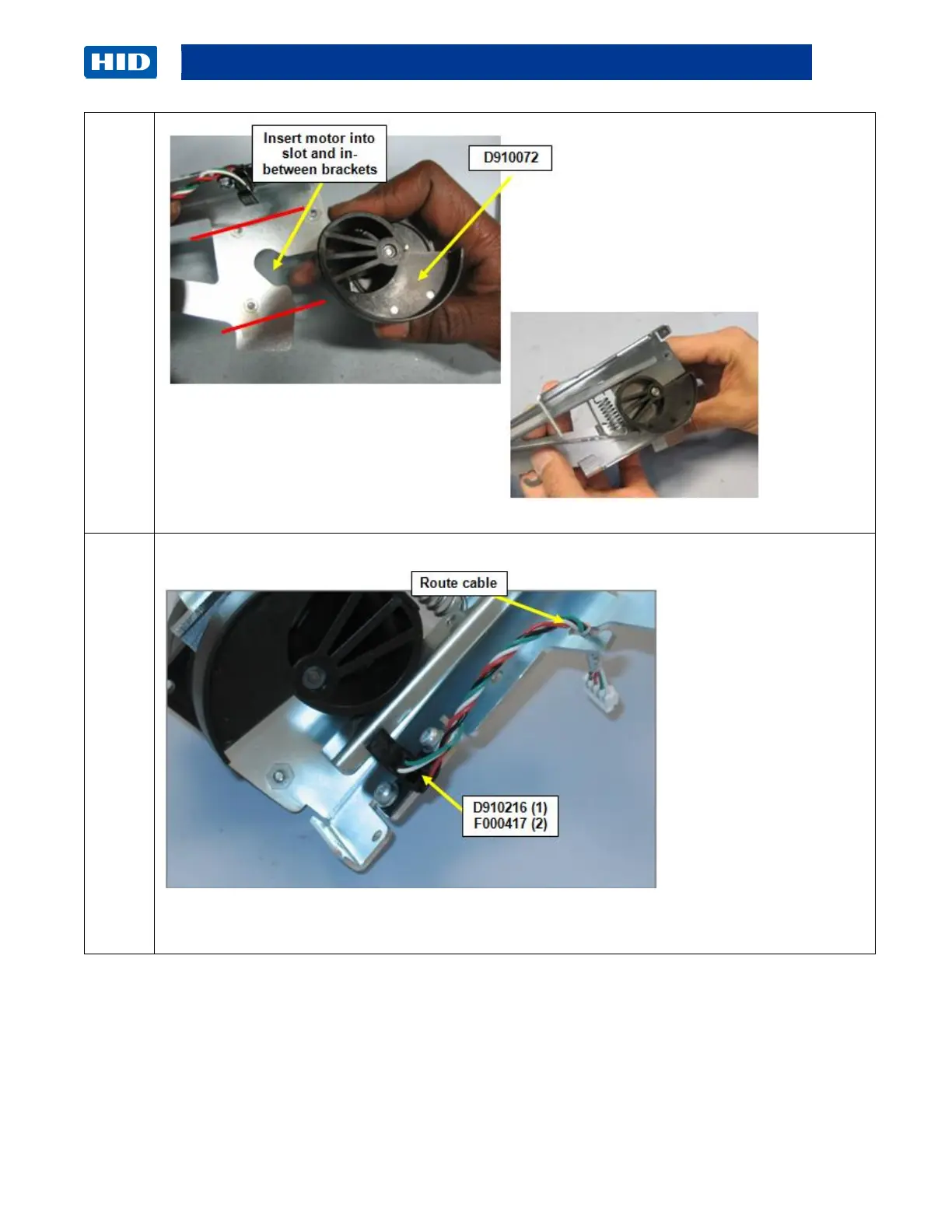

Replace the 3 screws on the Motor.
3
Remove 2 screws (F000417) to remove and replace the Lift Sensor (D910216)
Be careful of the Sensor when removing and replacing the Motor Cam.
Move the Cam to the side to clear the Sensor.
