Step
Procedure
7
The self adjusting Spring (F000332) will fall out. (Note: This will be replaced when the new
Motor is installed.)
8

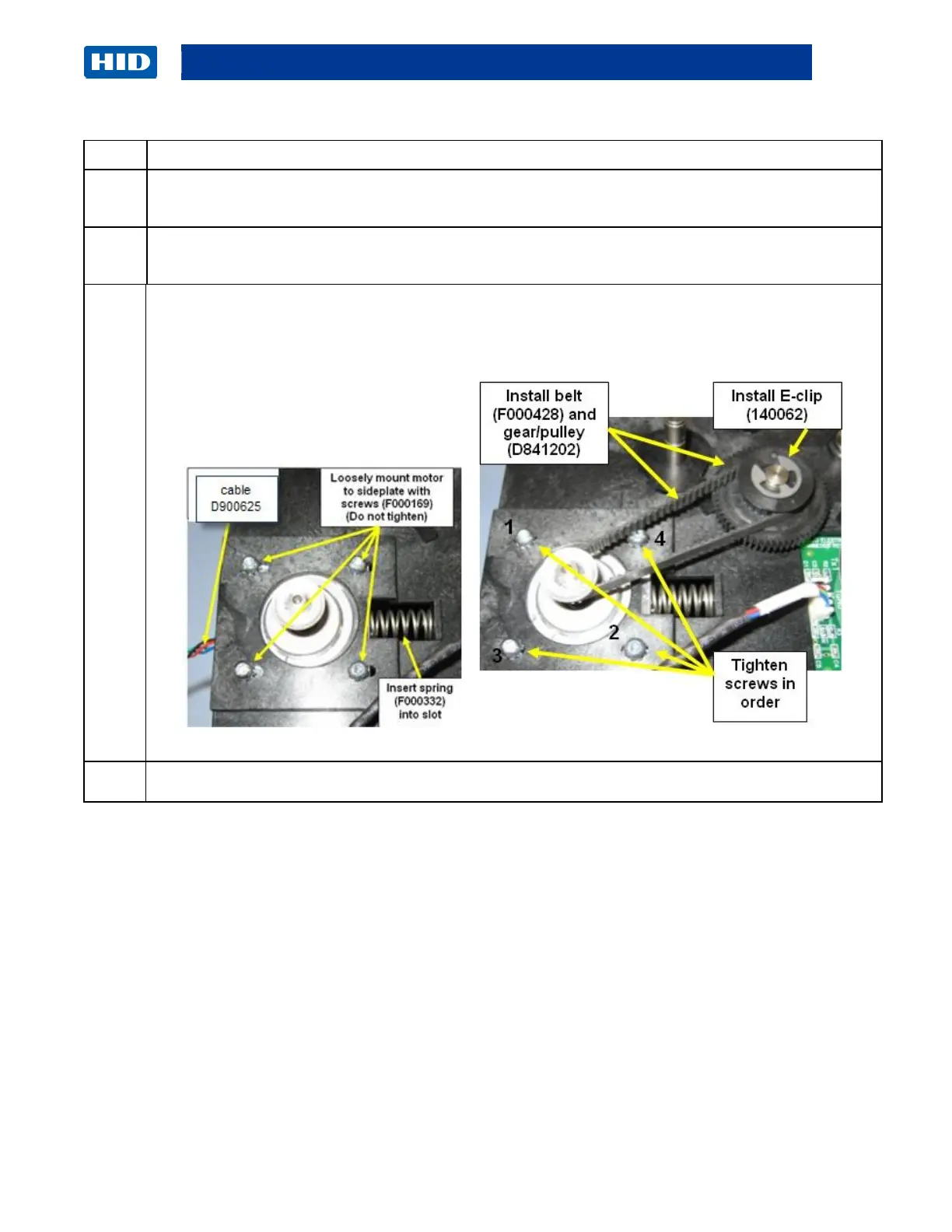

Install the new Motor. Loosely install the four (4) screws. Work the Belt (F000428) back onto the
Motor Shaft.
9
a. Insert the self adjusting Spring (F000332) into the hole (provided from the front).
b. Tighten the four (4) screws (F000169). Allow the self-adjusting spring to hold the Motor in
place.
10
Reverse the instructions to re-assemble.
