Step
Procedure
3

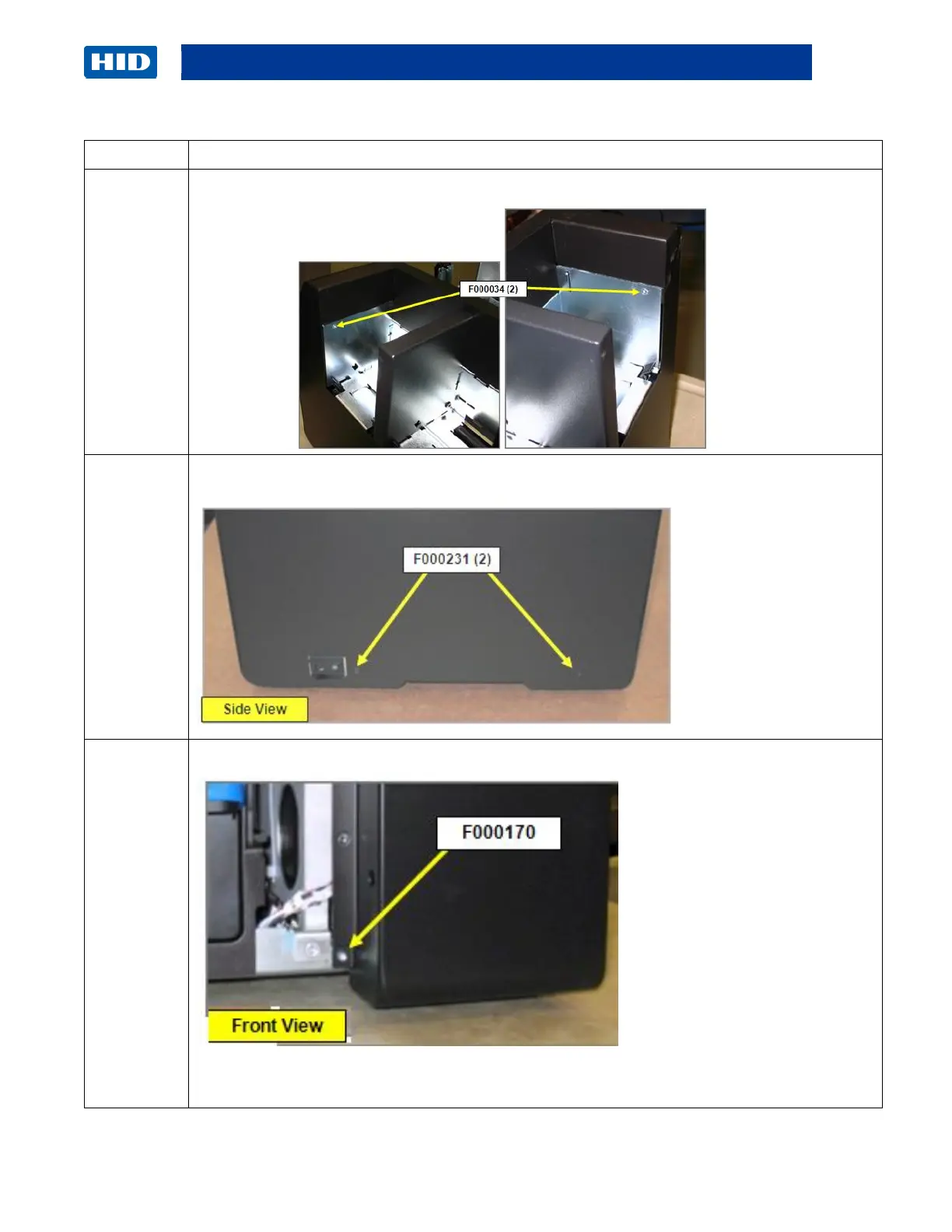

Remove (2) screws ( F000034) located in the inside hopper. ( Philip driver)
4
Remove (2) screws ( F000231) from the bottom SIDE cover. (Philip driver)
5
Remove (1) screw(F000170) from the bottom FRONT cover. (T10 driver)
Note: Cable Routing. Do not pinch cable.
(continued next page)
