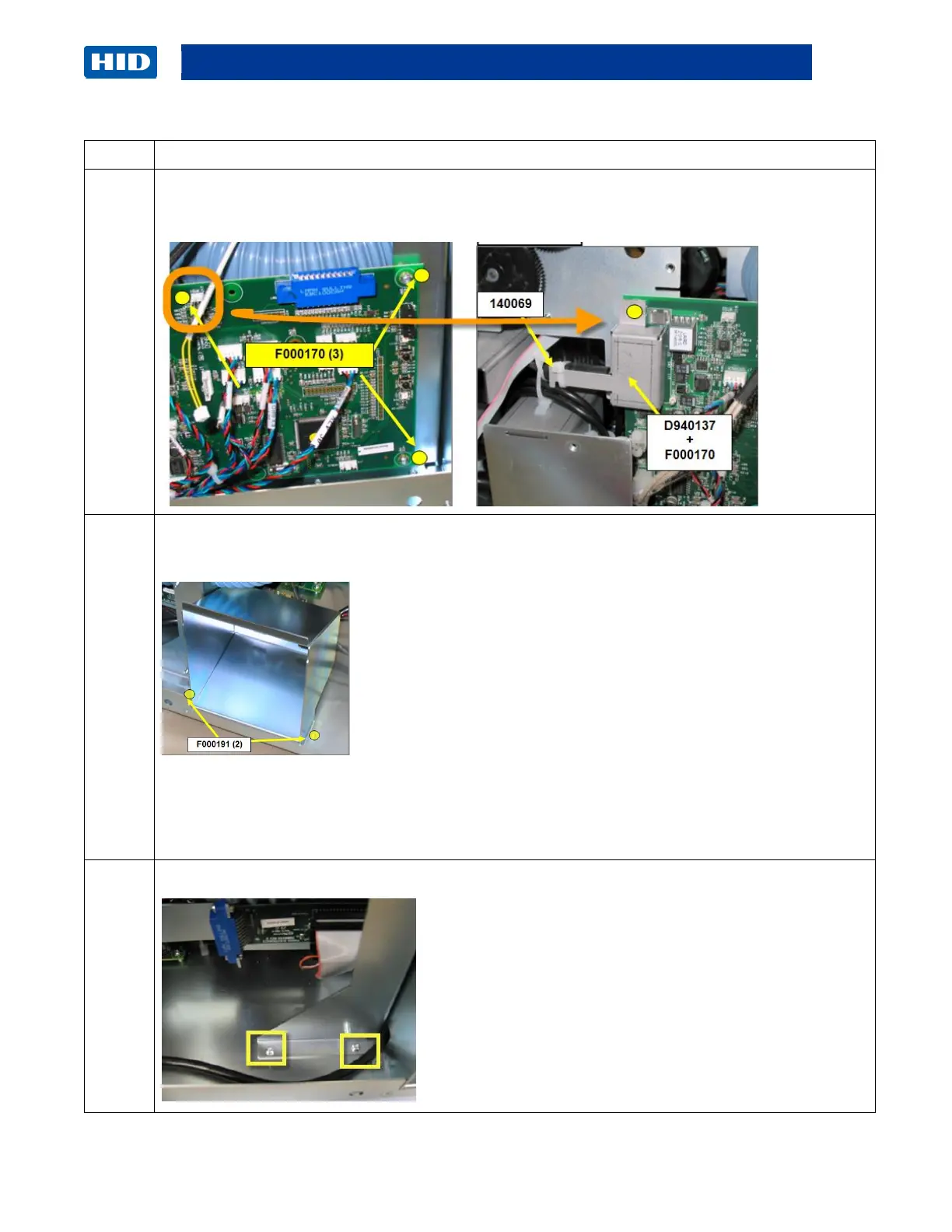

Step
Procedure
3
Remove the 3 screws holding the Auxiliary Board (A940221-10) to the frame.
Unplug the power connection 140069
4
Remove the Ethernet/USB box.
Remove two screws from the BOX base.
Pull the box forward and slide to the RIGHT then OUT.
Doing this will release the box from the PCB board (Ethernet/ USB Connection ) directly
behind the box.
5
Remove 2 screws from the Fan Bracket located at the base.
