Fargo HDP8500 - Page 40

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
40
Step
Procedure
3

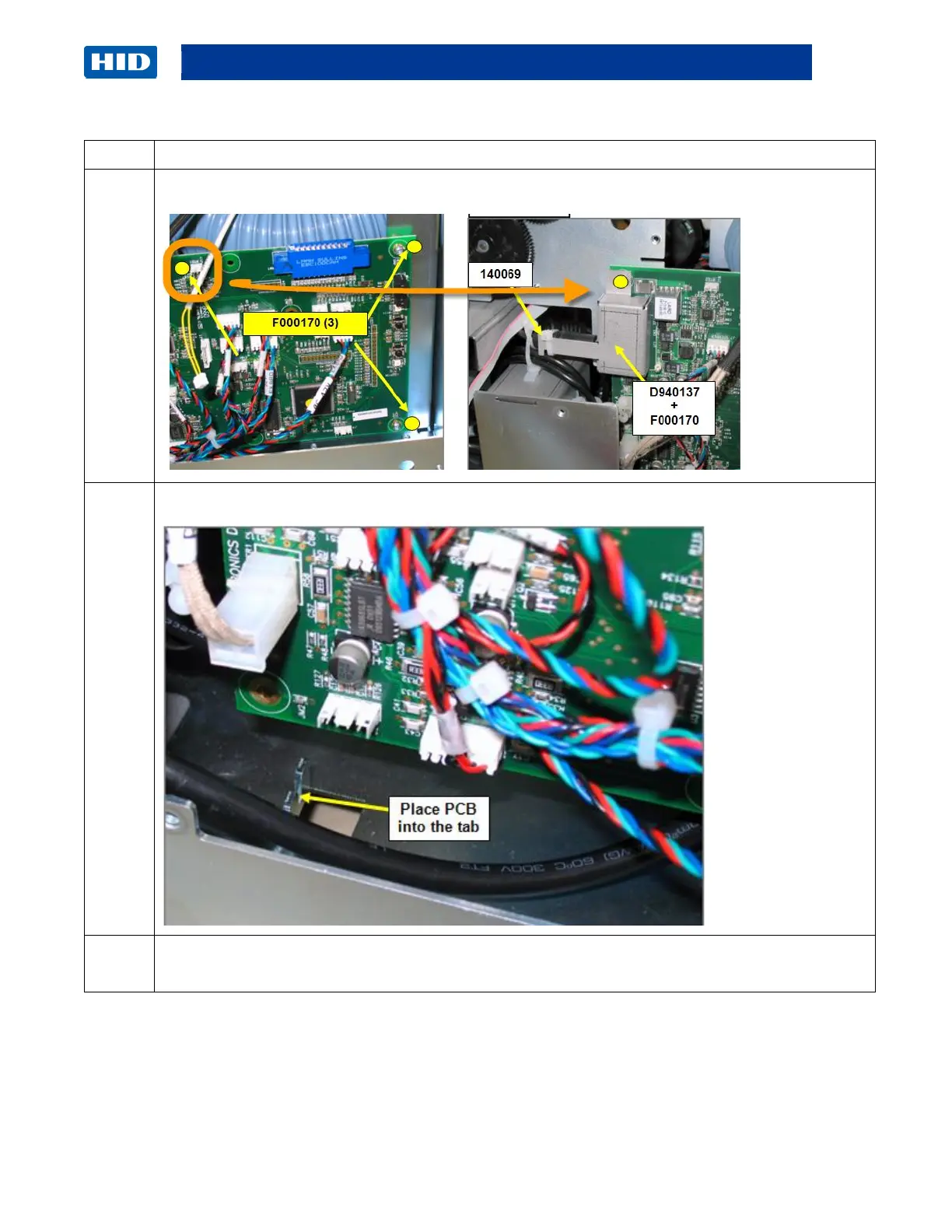

Remove the 3 screws holding the Auxiliary Board (A940221-10) to the frame.
4
When replacing the board insert the PCB into the tab of the base.
5
Reverse the instructions to re-assemble.
Refer to Appendix A for Cable Connection diagram.
