Step
Procedure
10

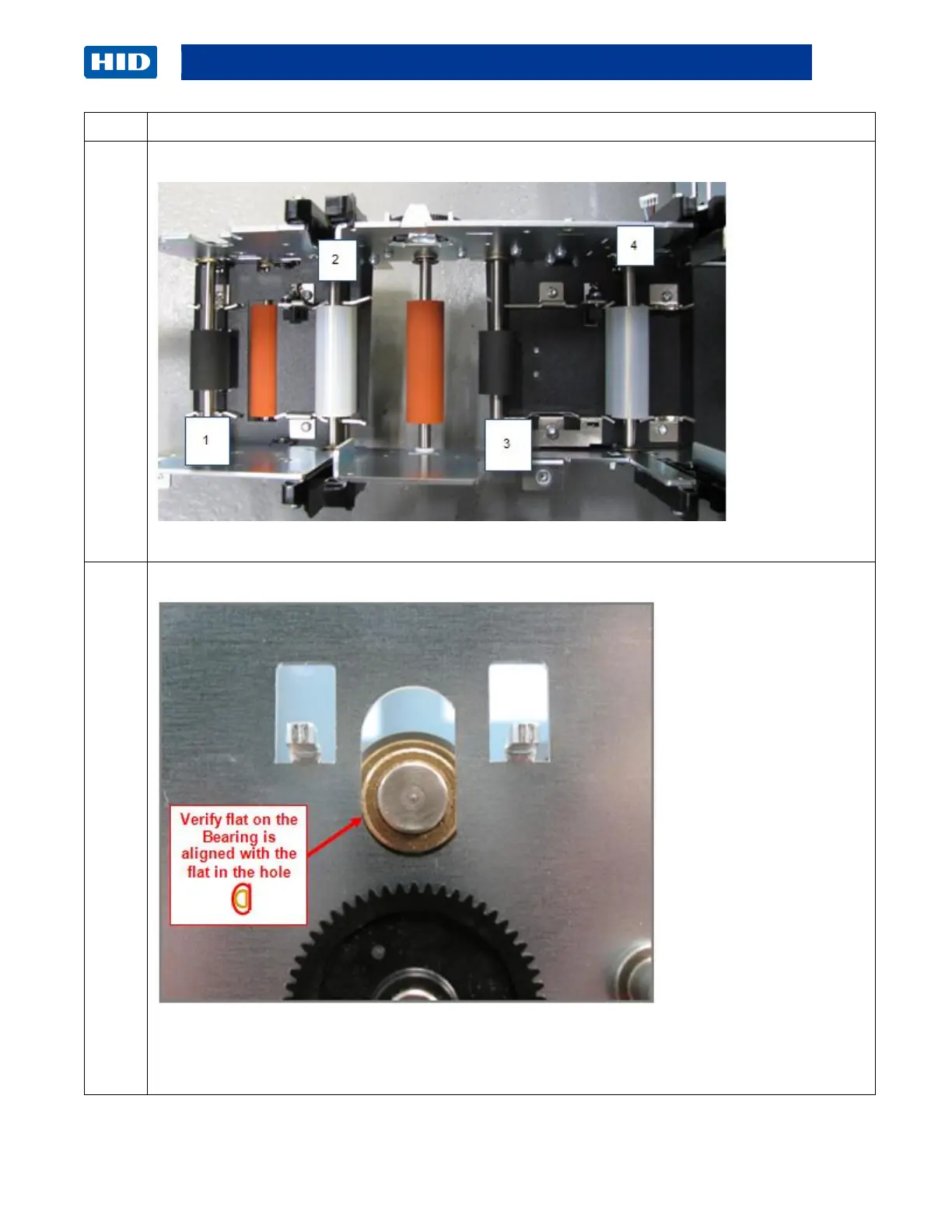

TO REPLACE TOP ROLLERS. All Rollers follow the same procedure.
Top View
11
Insert the D flat end into the grommet provided on the Sideplate.
Fit the Bearing and the SPRING on the other side of the Sideplate.
Attach as shown below.
(continued next page)
