Step
Procedure
3

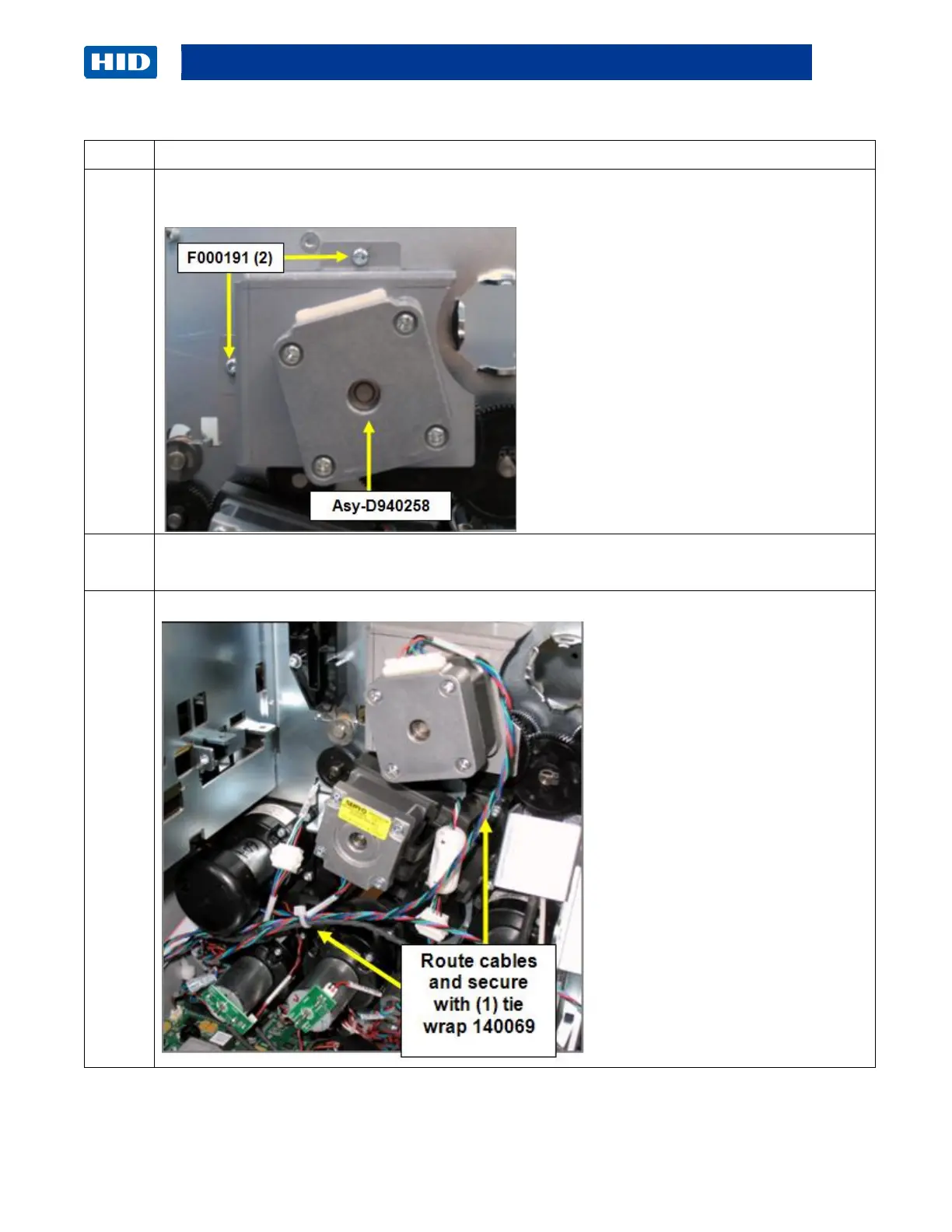

Remove 2 screws (F000191) from the Mount.
Lift out the Mount.
4
Replace if necessary
Reverse Assembly to complete the replacement procedure.
5
Cable Routing shown.
