HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
70
Step
Procedure
4

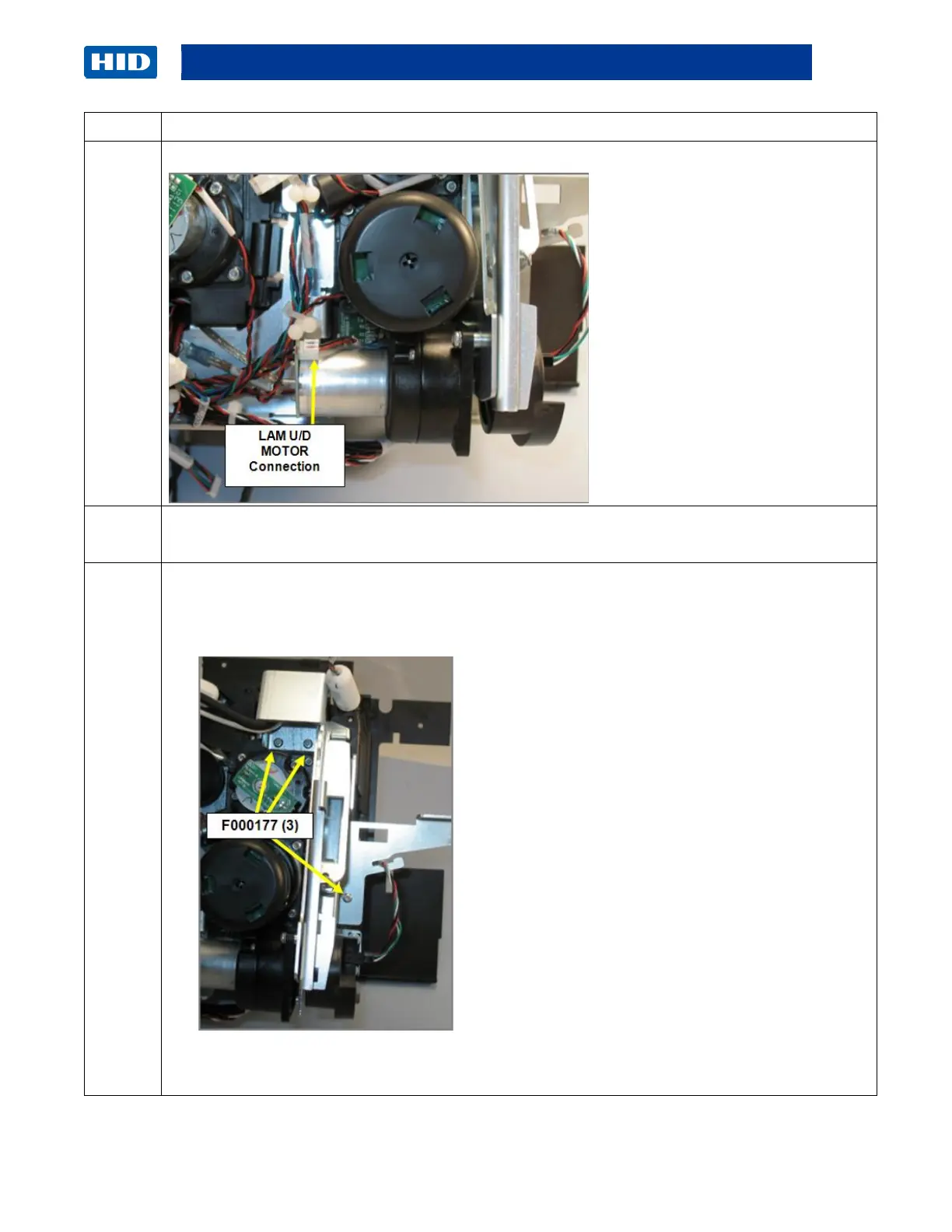

Disconnect the Lam Up/Down Motor Connection
5
Disconnect the Heater Wire 1 ((J3) and the RTD 1 (J17) from the Auxiliary Board
(A940221-10)
6
Remove the three (3) screws (F000177) that attach the Transfer Arm (D940009) to the Main
Chassis Frame.
Turn printer over to remove the bottom screw that holds the Transfer Arm to the base.
NOTE: The Transfer Arm bottom frame fits into a slot in the BASE.
There is one screw that holds the ARM to the BASE.
