Fargo HDP8500 - Page 78

HDP8500 Service Manual, PLT-01583, 1.1
© 2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
78
Step
Procedure
7

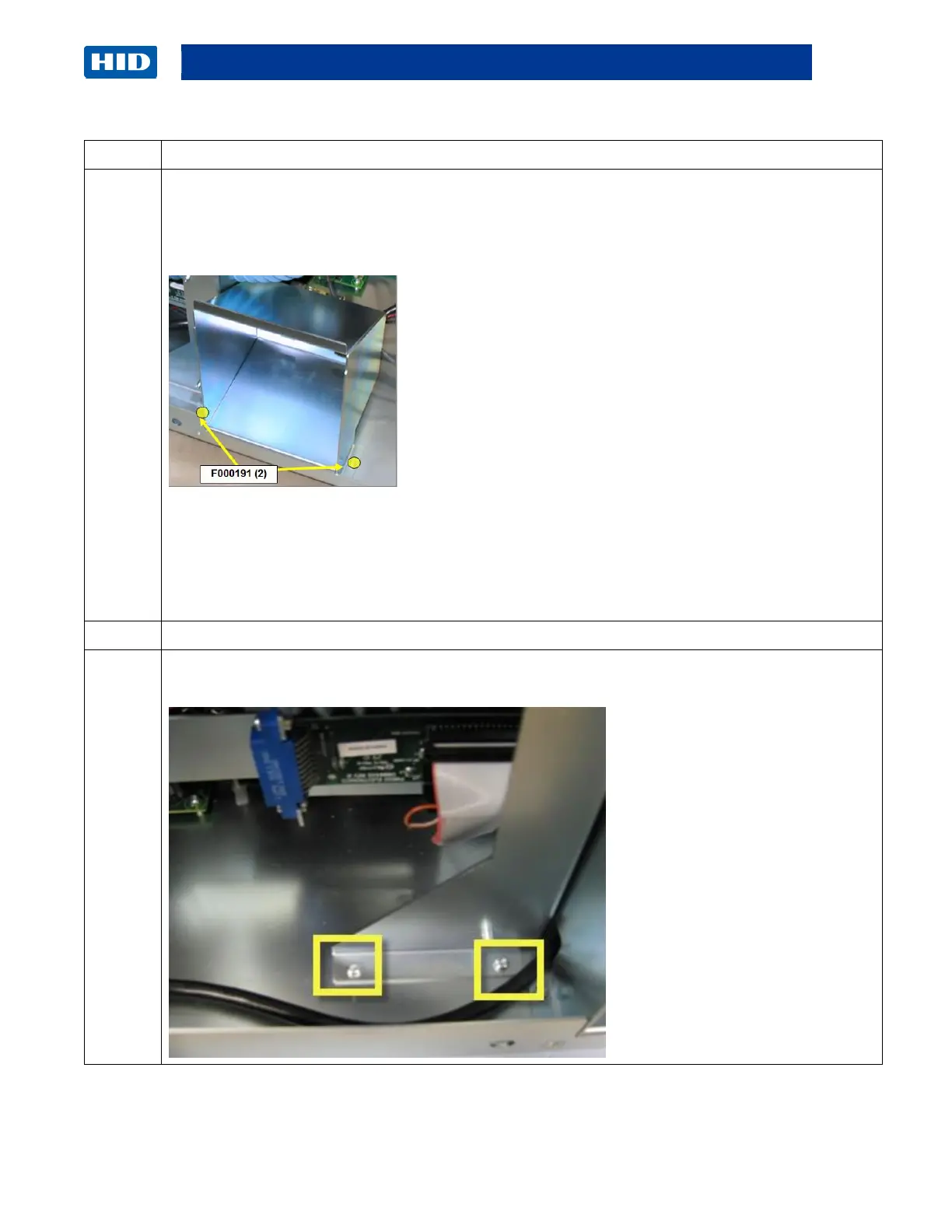

Remove the Ethernet/USB box.
Remove two screws from the BOX base.
Pull the box forward and slide to the RIGHT then OUT.
Doing this will release the box from the PCB board (Ethernet/ USB Connection ) directly
behind the box.
8
Remove the FAN BOX and BRACKET as one piece
9
Remove 2 screws from the Fan Bracket located at the base.
