Chapter 5: Parts and their Functions
Cover of the automation interface for automated applications. Remove to
get access to the automation interface of the FARO Laser Scanner. For
more information, please read the FARO Laser Scanner automation
interface manual. Cover the automation interface if it is not needed or not
in use.
Type label.
Cooling fan openings - please keep these openings uncovered to ensure
proper cooling of the scanner.
) Battery compartment cover release mechanism.
5.2 Power Dock Battery Charger

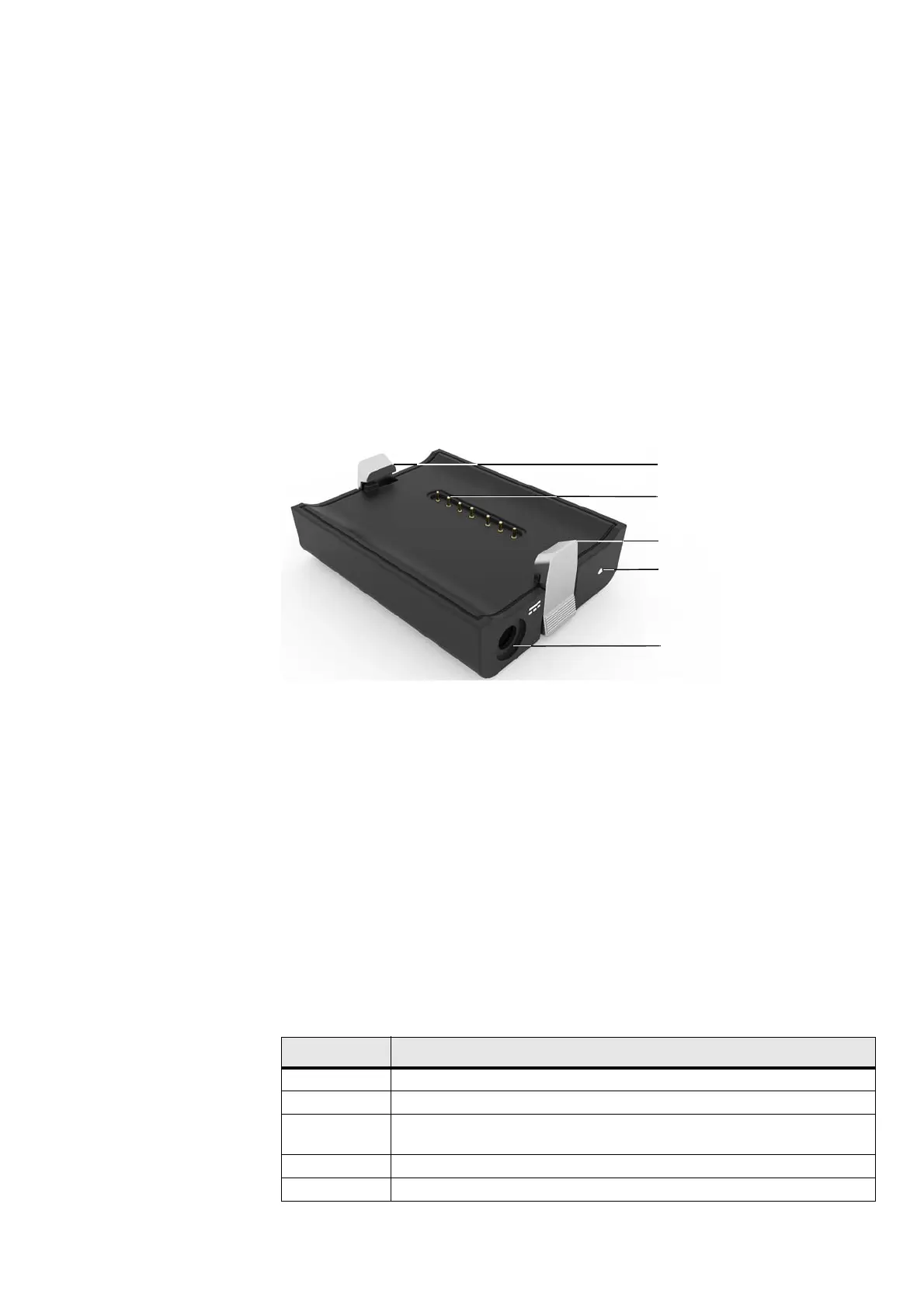

Figure 5-8: Power Dock Battery Charger
Safety clamps. To insert the battery, drag downwards.
Connectors
Power socket
Power LED - for LED specifications please see the table below.
5.2.1 LED behavior when charging cradle connected to power source
When the charging cradle is connected to the scanner or power source, its
LED displays the same status as the scanner LED.
Color State
Cyan Battery charging, state of charge is above 90% (charge done)
Orange Battery charging
Orange
flashlight
Battery charging, state of charge less than 10%
Red Unknown power source. Battery and AC adapter are not detected
Red flashlight Battery deep discharge
