FARO
®
Laser Scanner Manual
21
Chapter 6: Getting Started

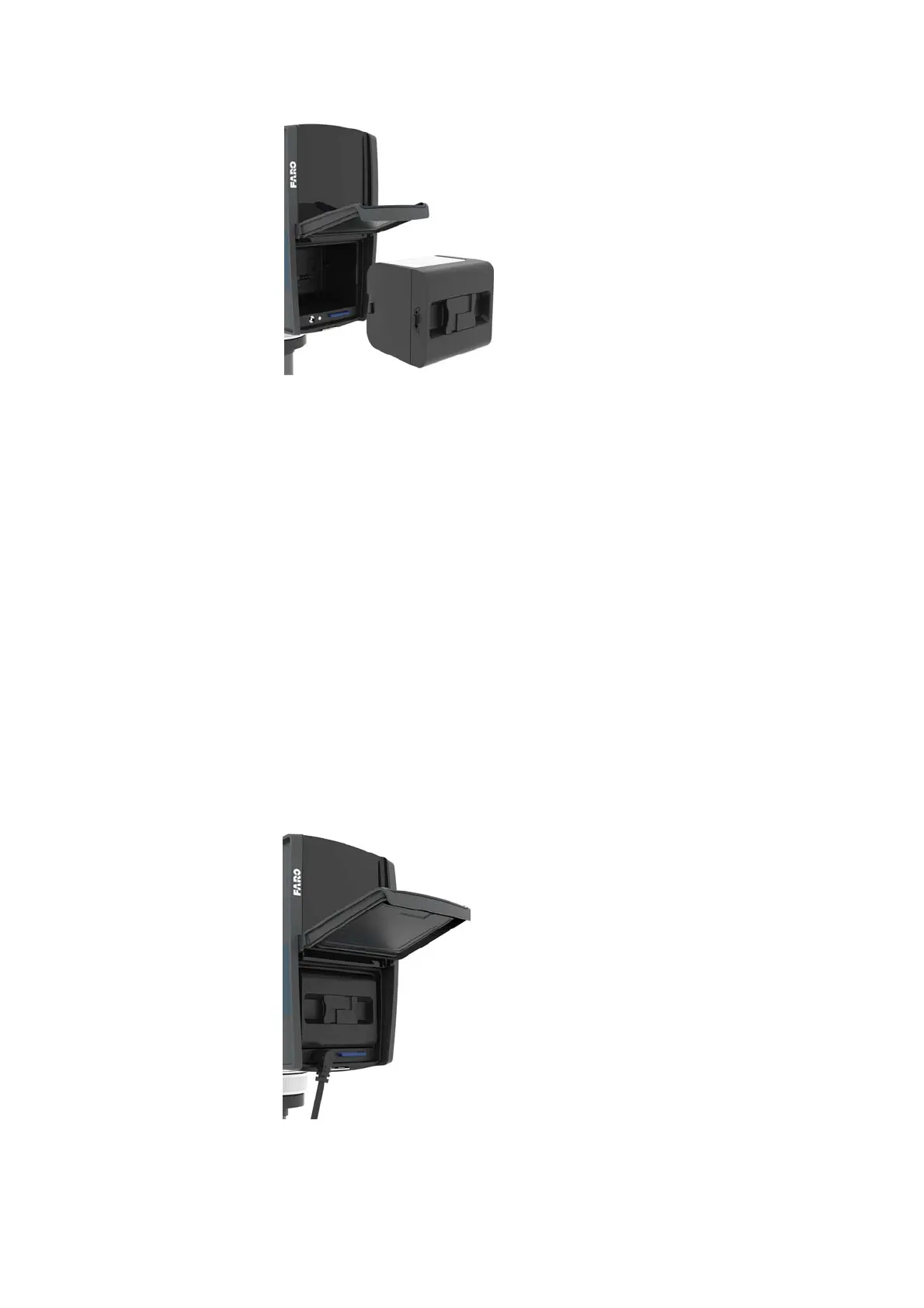

Figure 6-9: FARO Laser Scanner with Battery
3. Connect the cable of the power supply unit to the power socket of the
FARO Laser Scanner. If you forcibly insert the plug in a wrong direction, the
plug and the FARO Laser Scanner can be damaged.
4. Connect the AC power cable to the power supply unit as well as to a power
outlet. Check the input voltage on the type label before connecting.
5. If the FARO Laser Scanner is turned off, the LEDs of the scanner will start
blinking blue while charging. The LEDs will stop blinking and will illuminate
to constant blue when the battery is fully charged.
6. If the FARO Laser Scanner is turned on, you can check the charging state
of the battery in the scanner's user interface under
Home > Manage >
General Settings > Power Management. For more information, see Power
Management
on page 90.
7. When charging is finished, remove the cable of the power supply unit and
close the battery compartment cover.
Figure 6-10: Power Supply connected to FARO Laser Scanner
