FARO
®
Laser Scanner Manual
26
Chapter 6: Getting Started

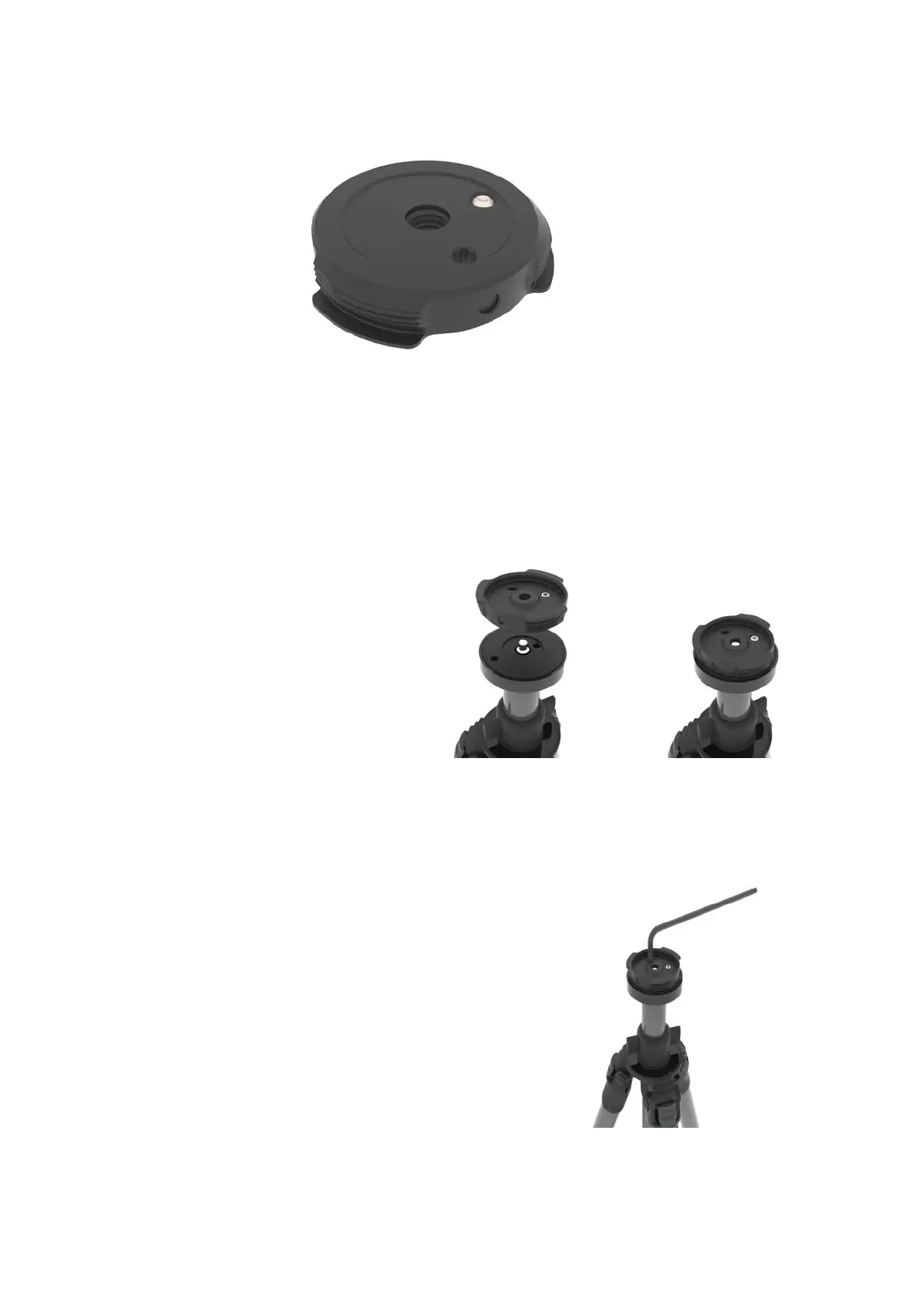

1.Ensure that the set screw
is recessed. It must not stick
out of the surface facing the
platform of the tripod. If it
sticks out of the surface, use
the S3 hex key to recess it.
2. Mount the
base plate on
the tripod,
using the
central 3/8”
threaded stud
of the tripod.
Tighten it
manually.
3. Put the 3/16” hex key into
the hexagonal recess on the
base plate and use it as a
lever to tighten the base
plate firmly.
