Technical data 101

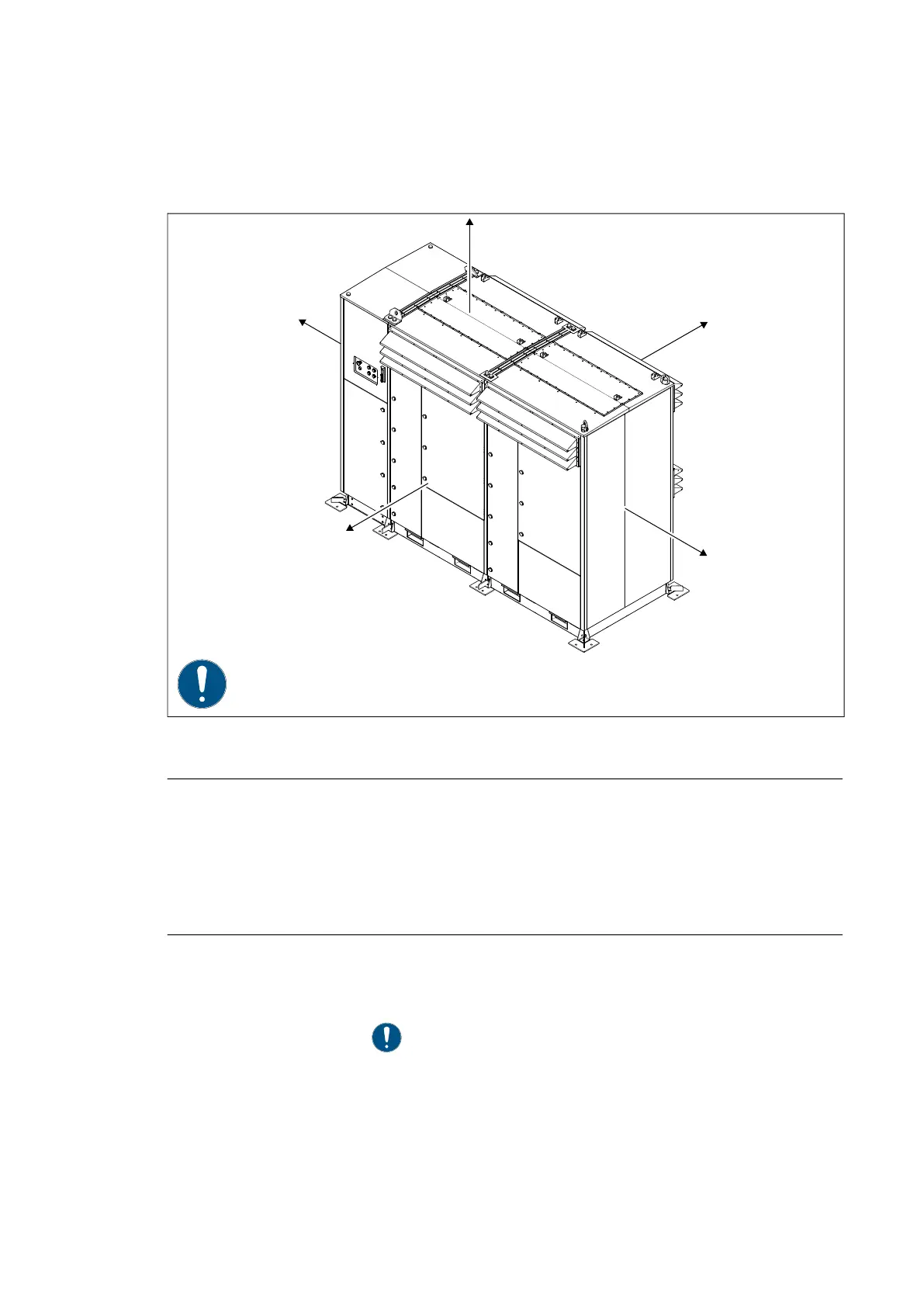

Free space requirements
For cabinet dimensions, refer to Dimension drawings on page 117.
Cooling data
Max. cooling air flow
• Main circulation: 8000 m
3
/h (4720 ft
3
/min)
• LCL: 2000 m
3
/h (1180 ft
3
/min)
• Total: 10000 m
3
/h (5880 ft
3
/min)
Terminal and lead-through data for the AC power
connections
• Blind cable lead-throughs: Solid conduit plates in the cabling sections
instead of pre-assembled cable lead-throughs.
• Cable lead-throughs 18 pcs
• Cable outer diameter 8...67 mm/lead-through
Note: The standard delivery has solid conduit plates in the cabling
sections instead of preassembled cable lead-throughs. The conduit
assembly is customized in the field according to the actual cabling.
The used cable conduits must provide the same degree of protection
as the inverter and the installation must be done so that the base and
cabling section fulfill this requirement.
Note 3.
min. 1000 mm (40 in)
min. 1500 mm
(60 in) Note 2.
Note 1
min. 1500 mm
(60 in) Note 2.
Note 1: Sufficient free space to allow a technician to install the cables.
Note 2: Free space of at least 1.5 m (60 in) + emergency exit space.
Note 3: Sufficient free space (at least 2 m) and flat area for power module replacing.
