Planning the electrical installation 75
 Functional grounding unit

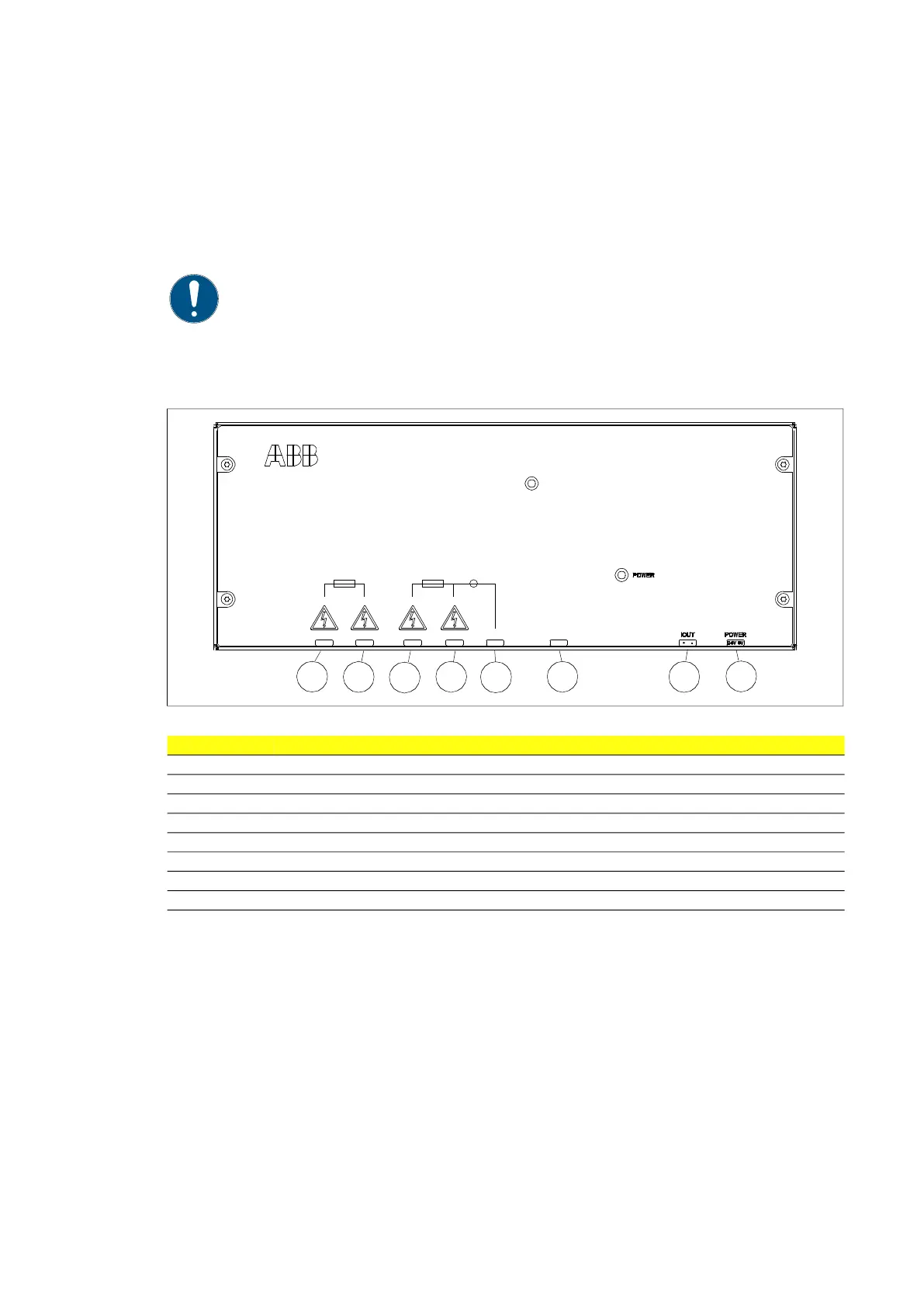

The MGND-01 is a functional grounding unit mounted to a DIN rail on the wall of the DC
section. With the MGND-01, functional grounding can be done from either the positive pole
or negative pole through a resistor. The MGND-01 has grounding current measurement
and fuse protection for excess grounding current. An external 1500 V DC contactor below
the MGND-01 is used to connect the grounding.
Note: The MGND-01 is not present in deliveries with the floating DC option
(+F314).
Software control for grounding is identical regardless of the grounding type. The following
descriptions and parameters are valid for all types of grounding.
For more information on grounding modes and settings, refer to the Firmware manual.
Connection Description
X4 PV array pole to be grounded
X3 To external grounding contactor
X7 From external grounding contactor
X10 Not connected
X5 Ground
X6 Status relay output
X2 Output signal, grounding current, 4–20 mA
X1 Auxiliary power input
1 2 1 2 1 2 1 2 1 2
GROUNDING OK
FUSE
X4 X3 X7 X5 STATUS PRO
X6 X2 X1
X10
RESISTOR MEASUREMENT
GROUNDING CURRENT
MGND-01
FUNCTIONAL GROUNDING UNIT
X4
X3
X7
X10
X5
X6
X2
X1
