Fimer PVS980-58 - Type Designation Labels; Inverter Label

42 Operation principle and hardware description
Type designation labels
 Inverter label

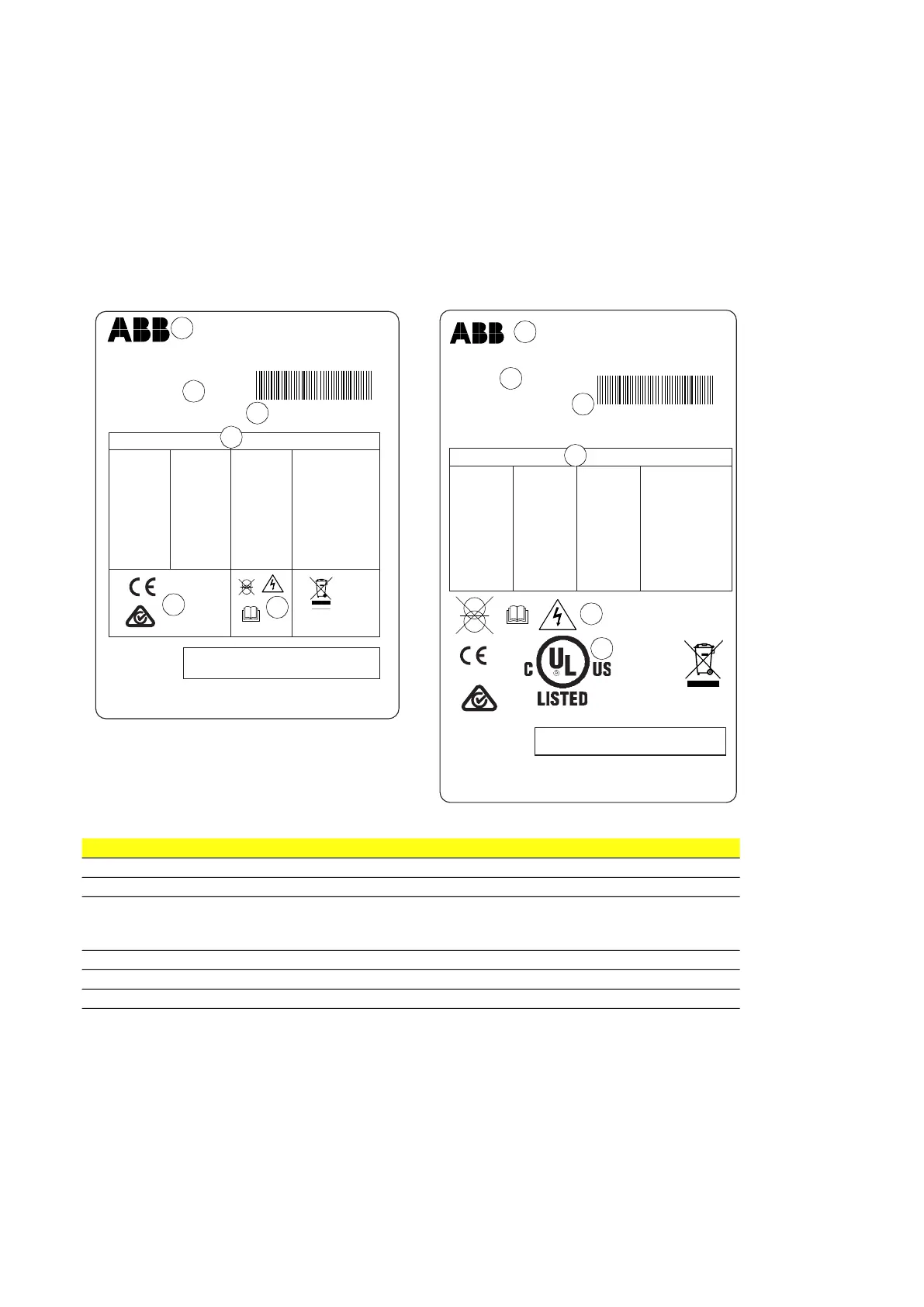

The type designation label of the inverter includes the ratings, certification marks, a type
designation and a serial number. The type designation label is attached to the front cover
of the inverter cabinet.
Air cooling
Type 3
-20...60°C
3AYN1873023-HAA
Protective Class: I
S/N:9185100736
fimer.com
Vmpp(50°C)
Sn (50°C)
In (50°C)
fn
Vn
Cos fii
Isc ac
Smax (35°C)
Imax (35°C)
Vdc range
Vdc max
Isc max
Idc max
50 kA
935 ...1100V
935 ...1500V
1500 V
4 kA
2400 A
2000 kVA
2200 kVA
3~660(+/-10%)V
1750 A
1925 A
50/60 (+/-10) Hz
0 ...1
DC Input AC Output
Photovoltaic Utility Interactive Inverter
PVS980-58-2000kVA-K
+K475+F253+12H382+F305+0F291+G417
+G430+C129+G397+P928+E203
E475166
DC voltage range and power depend on
the actual output voltage (Vn)
MADE IN INDIA
FIMER S.p.A
Via J.F Kennedy 26
20871 Vimercate (MB)
Italy
Air cooling
Photovoltaic Utility Interactive Inverter
PVS980-58-2000kVA-K
+K475+F296+F263+12H382+F300+F305+G415
+G417+P902
IP 66/56 (Outdoor)
-20...60°C
Vmpp(50°C)
Sn (50°C)
In (50°C)
fn
Vn
Cos fii
Isc ac
Smax (35°C)
Imax (35°C)
Vdc range
Vdc max
Isc max
Idc max
50 kA
935 ...1100V
935 ...1500V
1500 V
4 kA
2400 A
2000 kVA
2200 kVA
3~660(+/-10%)V
1750 A
1925 A
50/60 (+/-10) Hz
0 ...1
3AYN1873020-HAA
S/N:9184901571
DC Input AC Output
Protective Class: I
MADE IN INDIA
FIMER S.p.A
Via J.F Kennedy 26
20871 Vimercate (MB)
Italy
fimer.com
DC voltage range and power depend on
the actual output voltage (Vn)
No. Description
1. Type designation, refer to Type designation key on page 44.
2. Degree of protection and temperature limits
3. Serial number. The first digit of the serial number refers to the manufacturing plant. The next four
digits refer to the unit’s manufacturing year and week, respectively. The remaining digits are unique
to the unit.
4. Ratings of inverter
5. Warning and instruction symbols
6. Valid certification marks
3
1
5
4
2
6
3
1
5
4
2
6
IEC
UL
