Configuration
CM-3202-11-I Installation and User Guide Revision 100
June 2020
50
This document does not contain any export-controlled information.

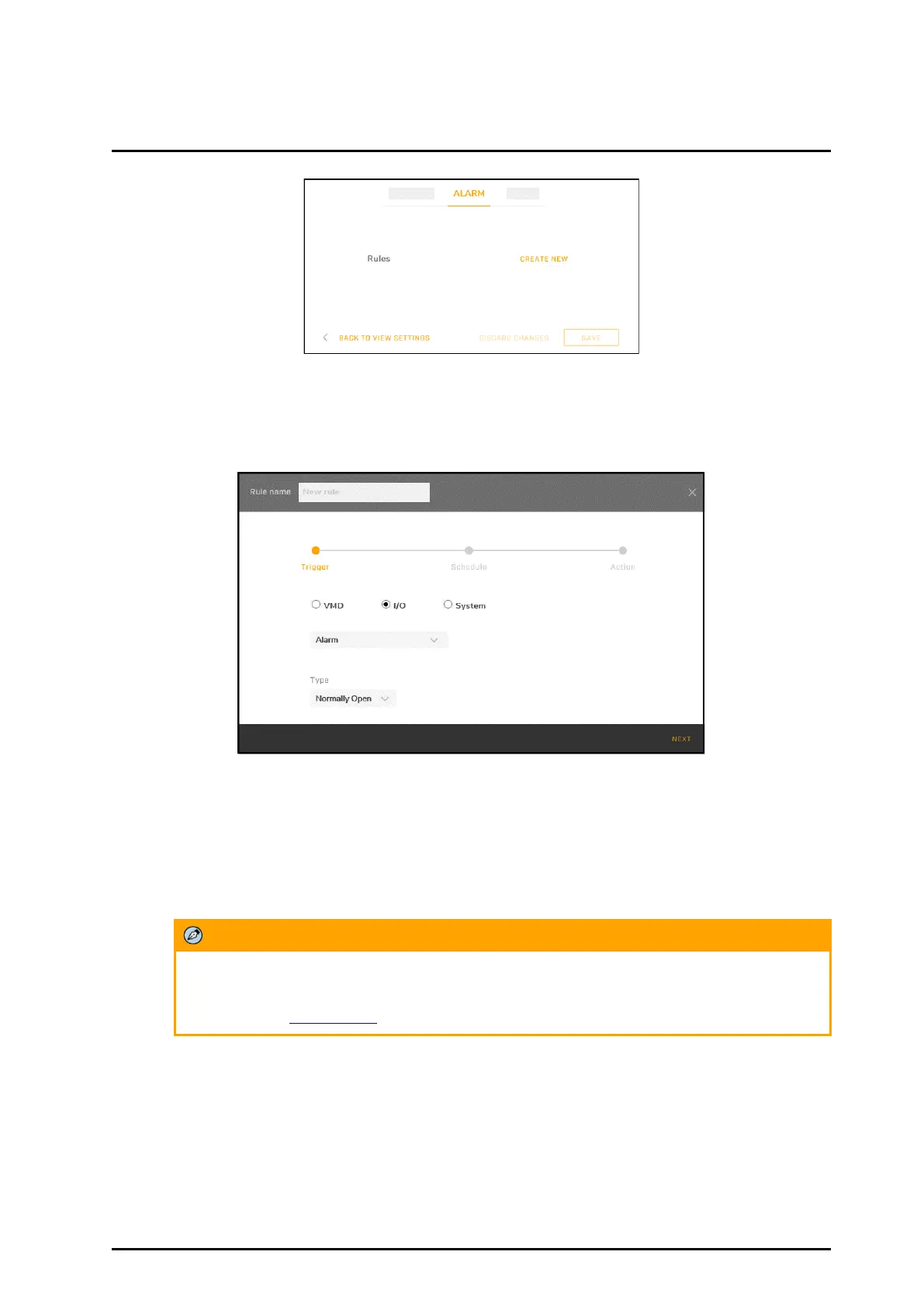

Figure 56: Alarm Page
By default, no alarm rules are defined and enabled.
To create an alarm rule
1. Click Create New. The rule configuration Trigger screen appears.
Figure 57: Rule Configuration Trigger Screen - I/O Trigger Selected
2. Rule name: Specify a unique and useful name for the rule.
3. Select the type of trigger event:
• VMD: Select whether camera Defocus, Motion detection, or Tampering triggers an alarm.
When Motion is selected, specify the tampering Sensitivity (1-100). When Tampering is selected,
specify the tampering Sensitivity (High, Mid, Low).
Note
If you are defining a Motion alarm rule, make sure a motion zone has been defined and
enabled on the Motion Page
.
• I/O:
o Select whether the Alarm input or the Audio input triggers an alarm.
o Type: Select whether the input is Normally Open or Normally Closed.
