• System: Select the type of system event that triggers an alarm:
o Network Loss
o Network Conflict
o Schedule: The camera triggers an alarm or alarms according to a specified schedule.
When selected, specify the alarm schedule Mode:
 Regular: The camera triggers an alarm at regular intervals. When selected,
specify the Trigger Interval (Sec), the frequency at which the camera triggers an
alarm, in seconds between 5-3600 (3600 = once per hour).
 Persist: The camera triggers a persistent alarm.
4. Click Next. The rule configuration Schedule screen appears.

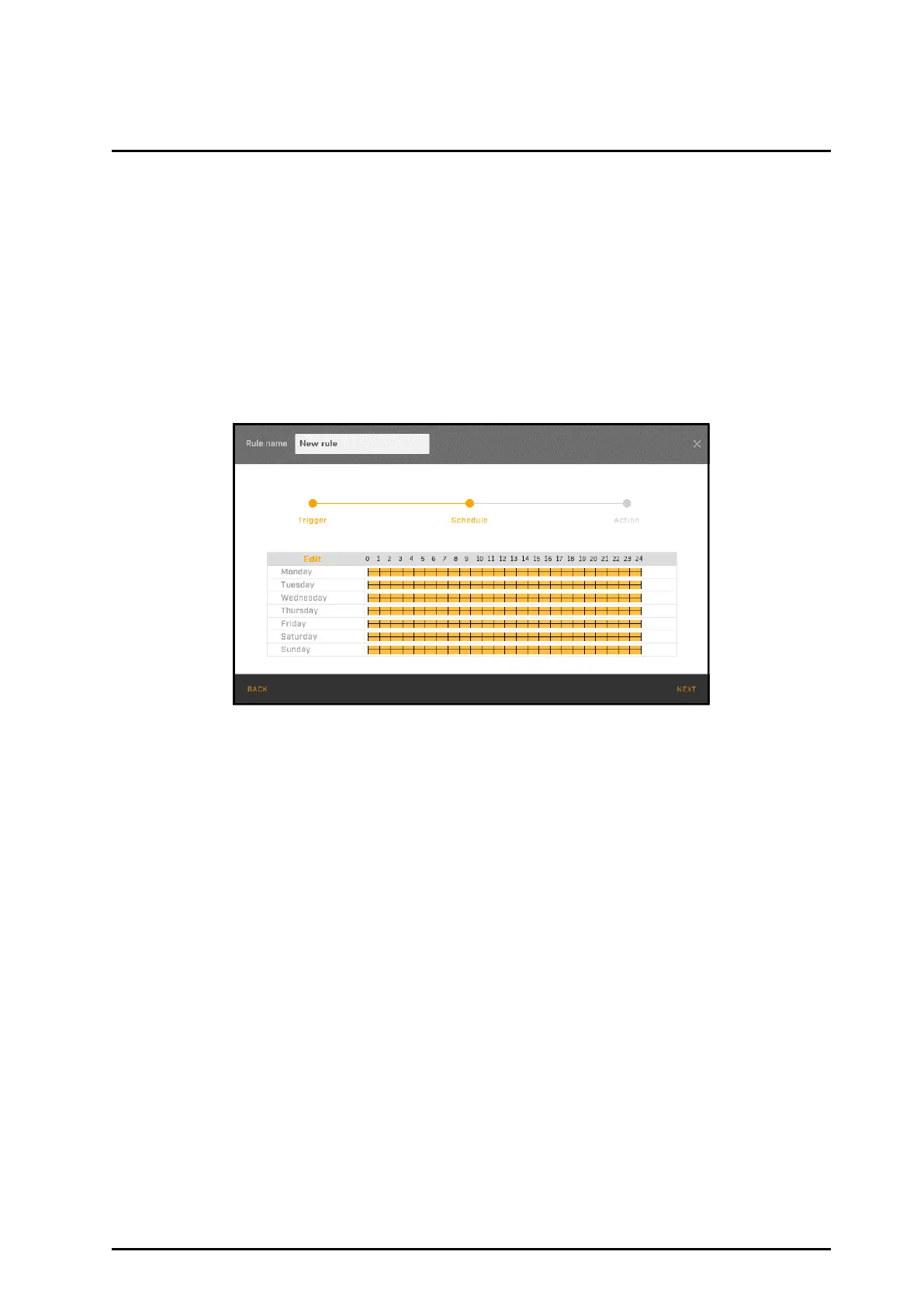

Figure 58: Rule Configuration - I/O Trigger Selected
5. By default, the alarm is armed all day, every day of the week. In the schedule, orange indicates
when the alarm is armed. To modify when the alarm is armed and whether the alarm triggers the
action defined for the rule, click Edit. The arming schedule setting screen appears.
