INSTRUMENTS AND CONTROLS

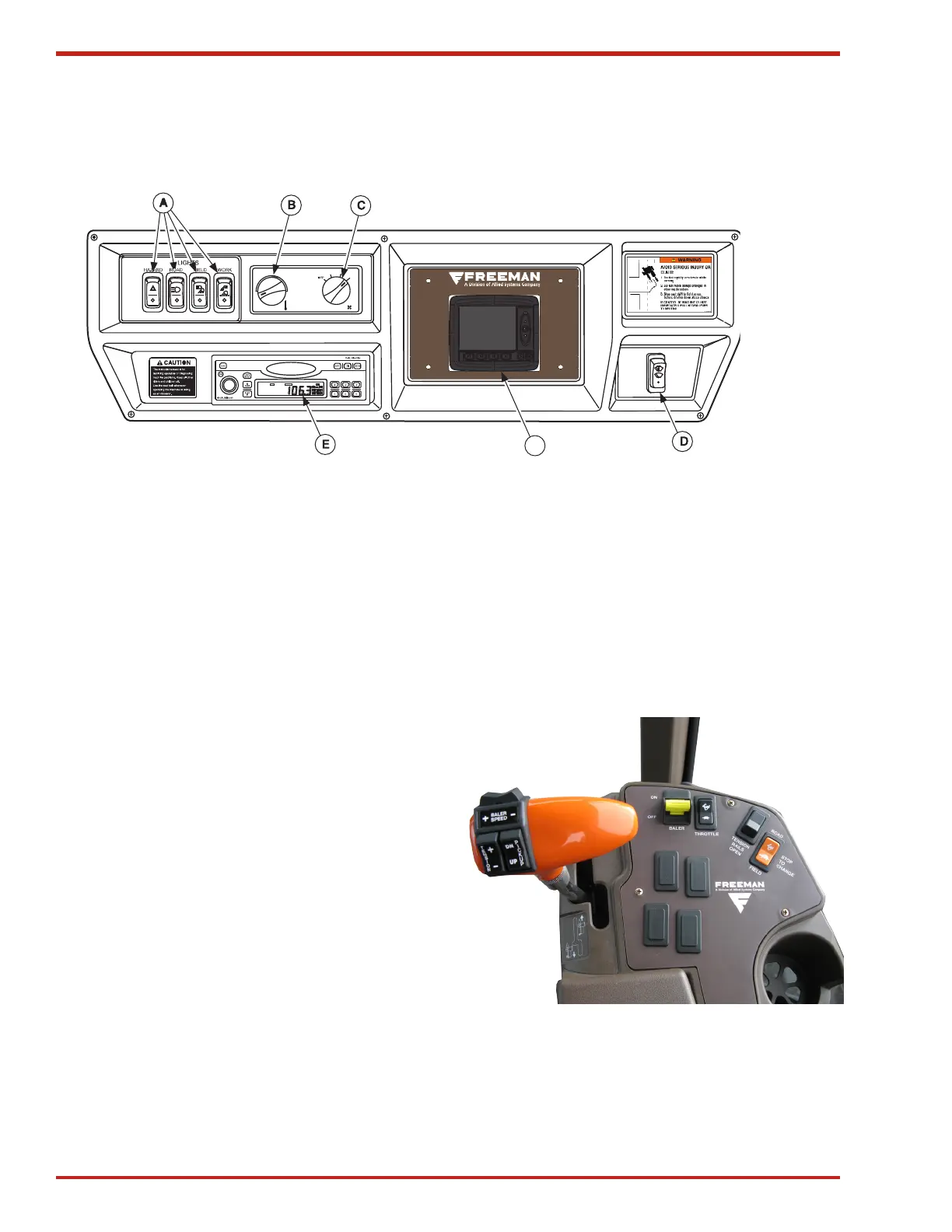

Figure 3. Overhead Controls
Control Switch Colors
Before operating the self-propelled baler for the
first time, become familiar with the controls and
switches. These controls and switches are color-
coded to help you quickly locate them when
operating the self-propelled baler.
• ORANGE Ground drive speed range
• YELLOW Baler drive engagement
• BLACK Operating adjustment and
engine speed
Figure 4. Armrest Control Panel
Overhead Instrument and Controls
F
A. Light switch controls
B. Temperature control
C. Blower motor speed
D. Windshield wiper control
E. AM-FM/weather band radio
F. In-cab monitor (ICM)
