Corner Post Monitors
(See Figure 11)
A. Warning Display Panel
12 displays with colors indicating existing
condition and an audible alarm for when
a serious condition exists (see "Warning
Display Panel" on page 21).
B. Fuel Gauge
Indicates fuel level (see "Fuel Gauge" on
page 22).
C. Engine Coolant Temperature Gauge
Indicates engine coolant temperature (see
"Engine Coolant Temperature Gauge" on
page 22).
D. Dual Digital Display
Indicates engine rpm, mph, or hours
depending on function selected. Display is a
dual display showing any combination of two
functions at the same time (see "Dual Digital
Display" on page 22)
E. Function Select
Selects the desired function to be displayed.
Operator can select which function to
display in the upper digital display or the
lower digital display (see "Operating Dual
Digital Display" on page 22).
A
B
C
D
E
n/min
n/min
FUEL
TEMP

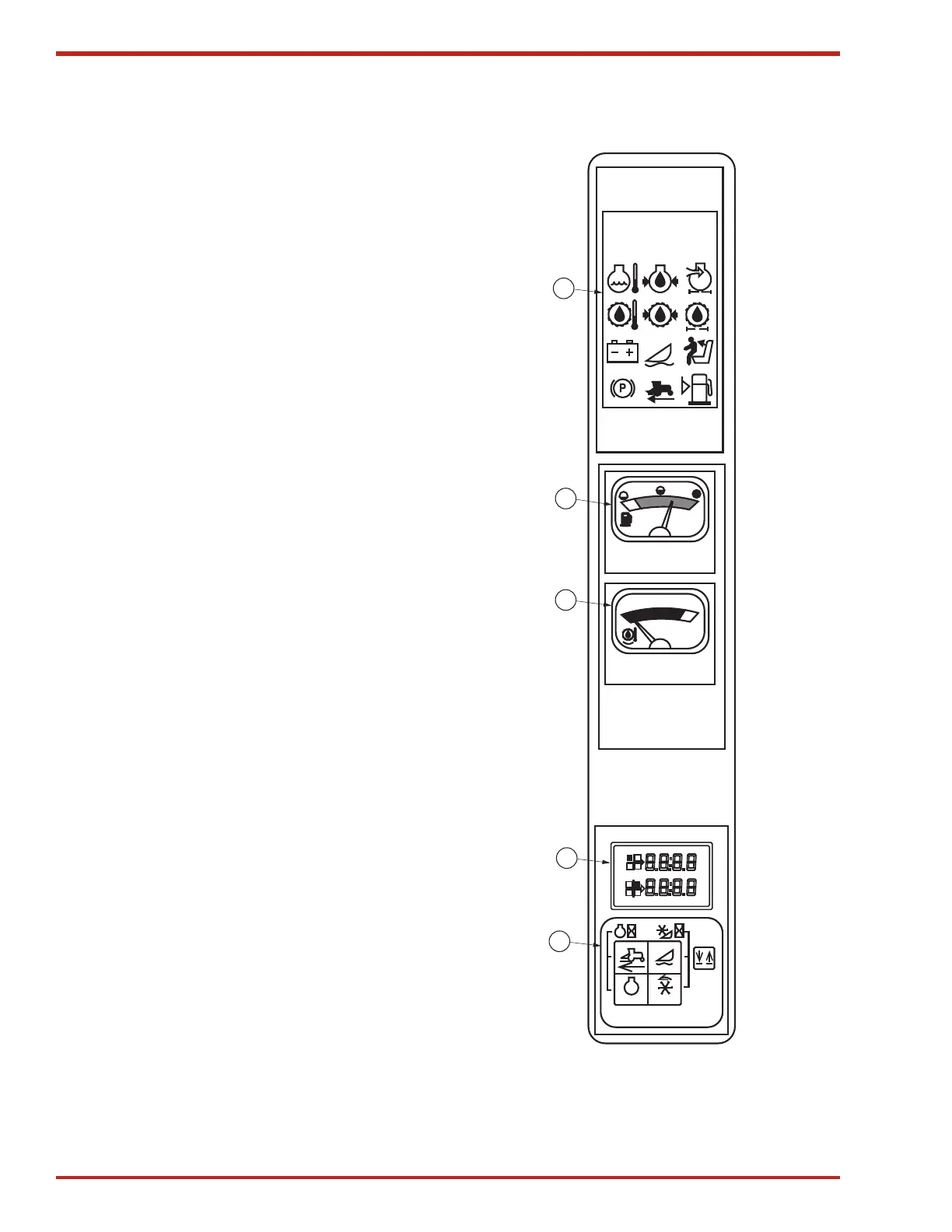

Figure 11. Corner Post Monitors
