INSTRUMENTS AND CONTROLS

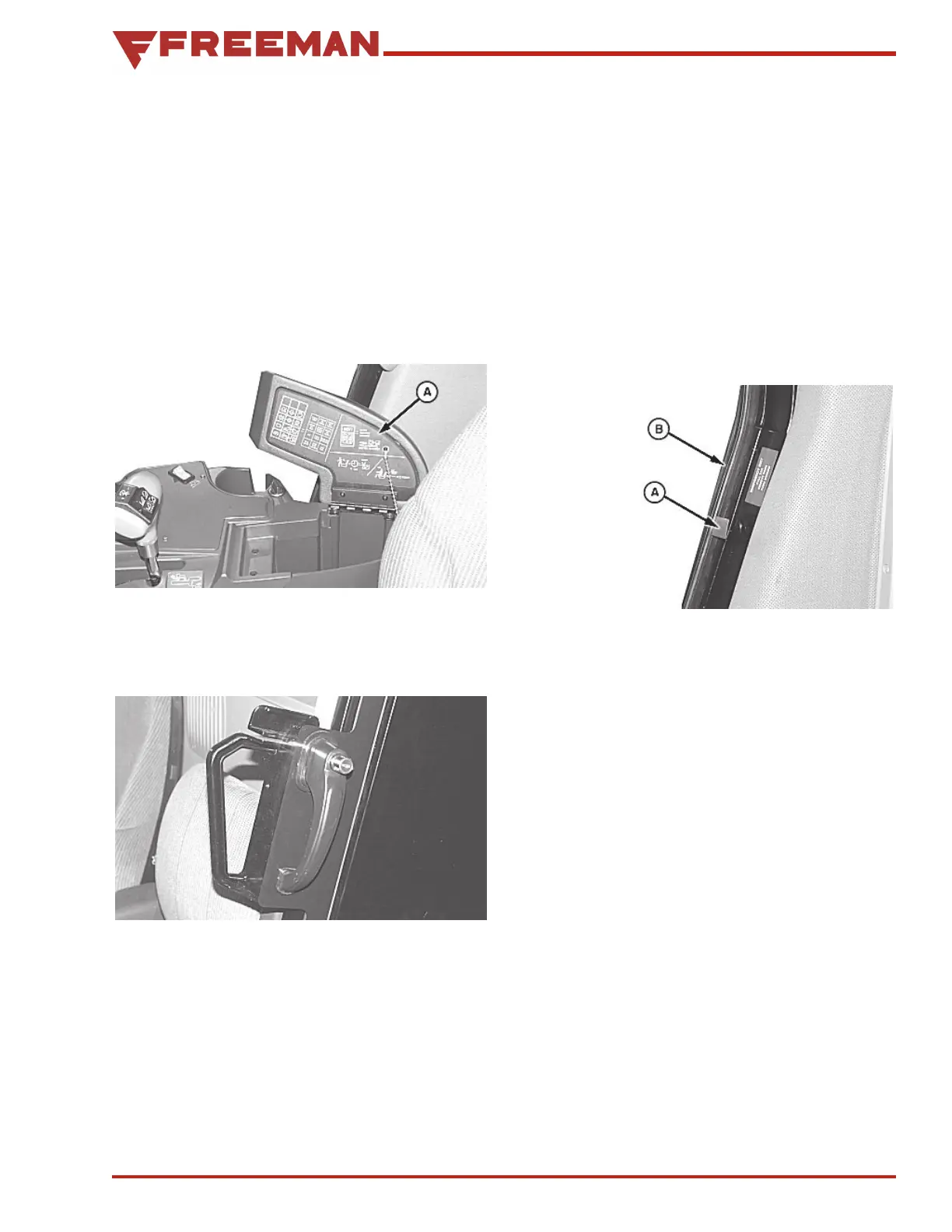

Cab Storage Box & Decal
The decal (A) shows the following information (see
Figure 30):
• Identifies function of lights in warning display
panel.
• Service interval reset procedure.
A. Decal
Figure 30. Storage
Cab Door Lock
This lock uses the ignition key (see Figure 31).
Figure 31. Door Lock
Emergency Exit (Right-Hand Cab Window)
Pull tab (A) to begin removal of rubber rope (B).
Continue to pull until rope (see Figure 32) is
removed from around right-hand cab window. The
window can now be pushed out and allowed to
fall free.
A. Ta b
B. Rope
Figure 32. Emergency Exit
