76
Rev 4/2018
SETTINGS AND ADJUSTMENTS
C
A
D
B

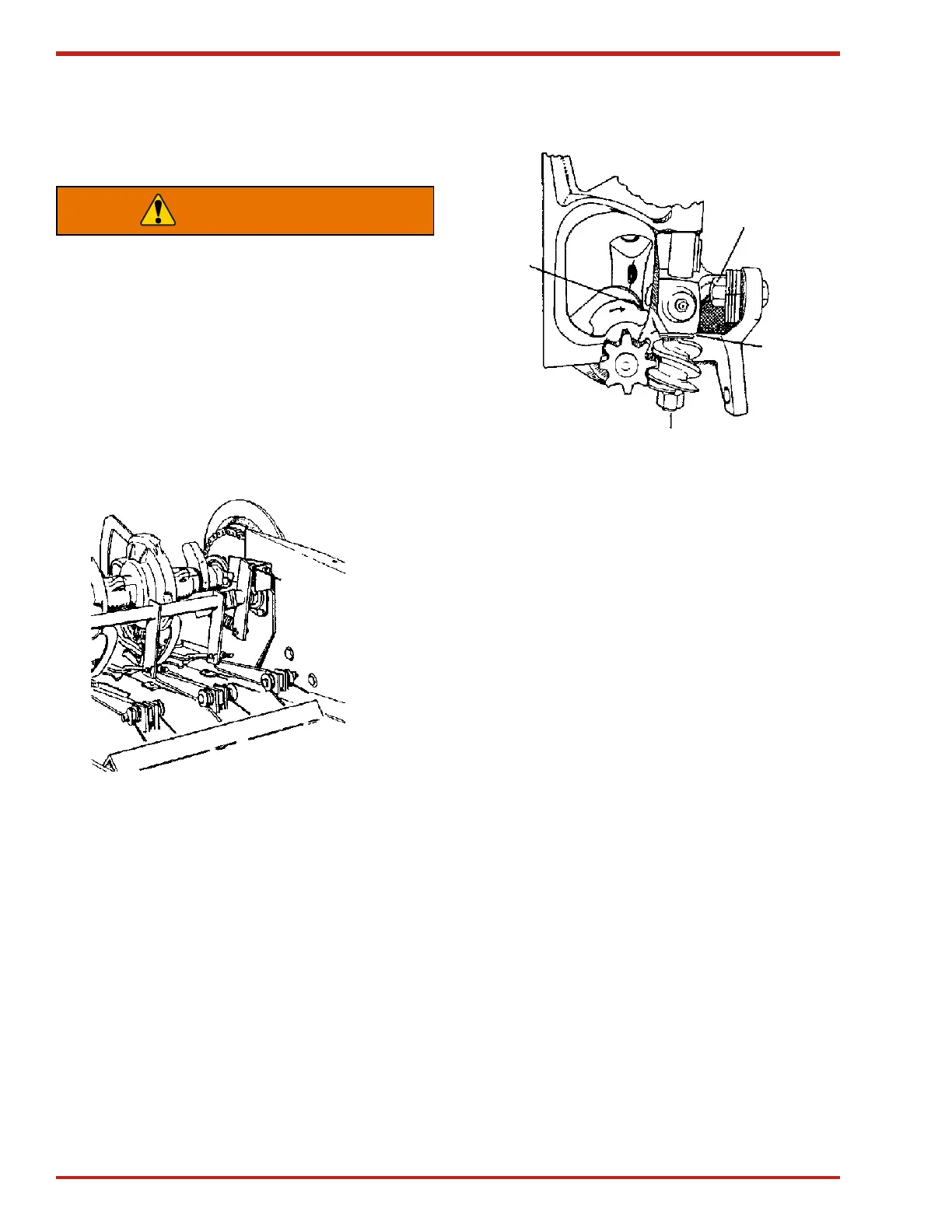

Figure 115. Knotter
A. Nut
B. Spacer Washers
C. Bolt
D. Cleaner
Make adjustments on bolt (C) in 1/6 of one turn
increments. Proper adjustment is achieved when
the knot ter is producing a clean and smooth knot.
Twine Disc
Be sure the twine disc cleaner is free. Adjust the
twine disc notch so the left-hand side of the notch
is even with the cleaner (D) (see Figure 115). Do
this by loosening nut (A) several turns. Tap the nut
end of the shaft to loosen the worm. After the disc
is set, turn the worm against the spacer washers
(B) (see Figure 115), and tighten the nut. After the
knotter has com pleted one cycle check the notch
setting again.
Knotter Adjustment
WARNING
Always shut baler off when in specting,
adjusting, lubricating, or servicing the baler.
Twine Holder
The twine holder holds the twine in the twine disc
while the bale is being made and tied. The pres-
sure is regulated by bolt (C) (see Figure 115).
Adjust the twine holder only as tight as necessary
to pre vent the twine from pulling from the disc and/
or producing bow knots.
Stop Bolt
Figure 114. Stop Bolt
