Rev 4/2018
73
SETTINGS AND ADJUSTMENTS
3. The clutch pawl (A) must have approximately 1/2"
clearance at (C ) when depressed. The clutch pawl
roller should have 1/8" clearance at (D) when the
notch in the clutch disc is not near the clutch pawl
roller. Adjust with bolt (B) (see Figure 104).
D
A
C
B

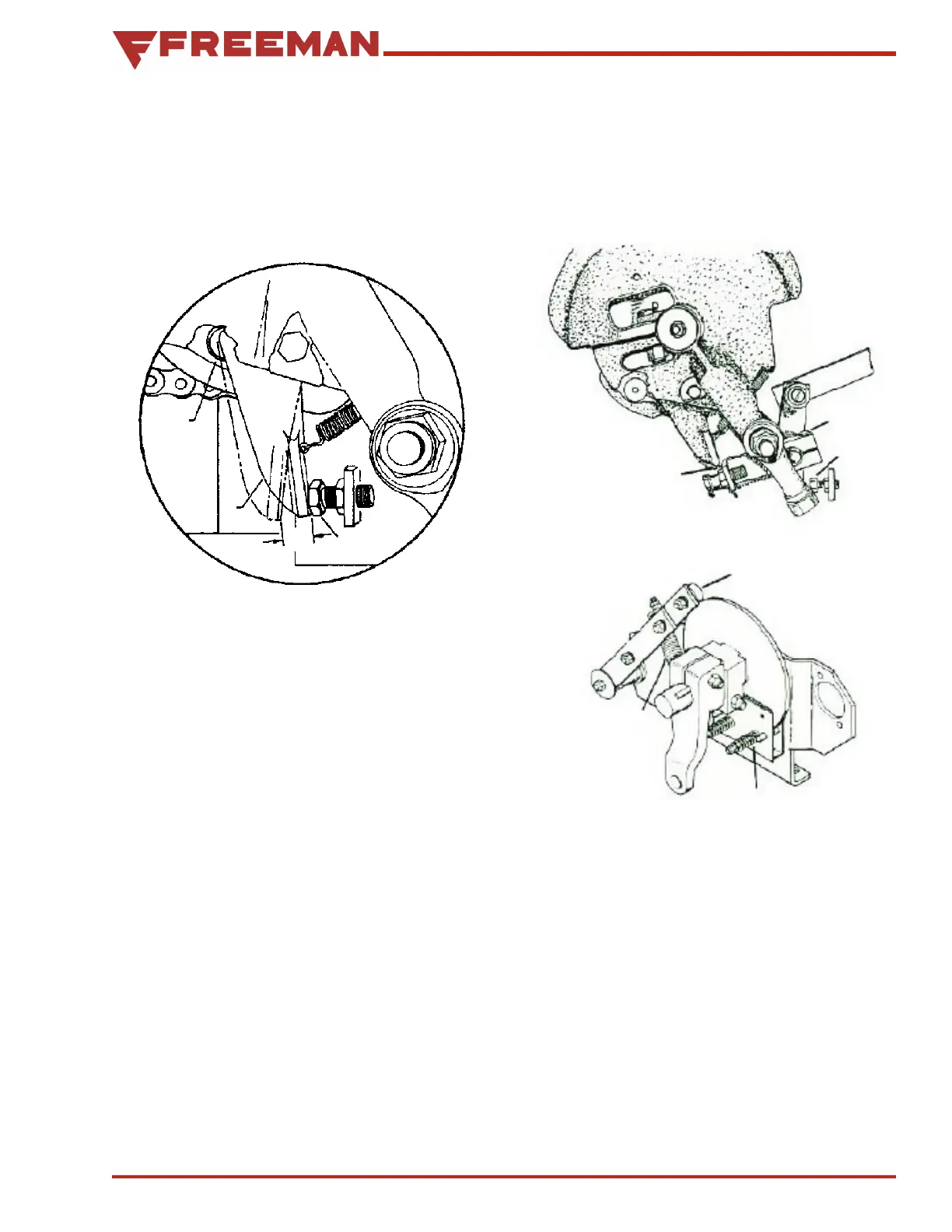

Figure 104. Clutch Pawl
4. Trip the knotter clutch and rotate the clutch. The
clutch pawl must have 1/8" clearance from the stop
lever at (B). Adjust with stop bolt (G) (see Figure
105).
Knotter Brake
Adjust the brake shoe tension springs so that the
springs are fully depressed, (A) (see Figure 106).
B
A
G
Figure 105. Tying Holder Bolt
A
B
Saddle Lever
Spring
Figure 106. Saddle Lever Spring
The saddle spring is properly adjusted when roller
(B) is in the notch and there is 1/2" of adjusted
tension on the sad dle lever spring (see Figure 106).
