Rev 4/2018
69

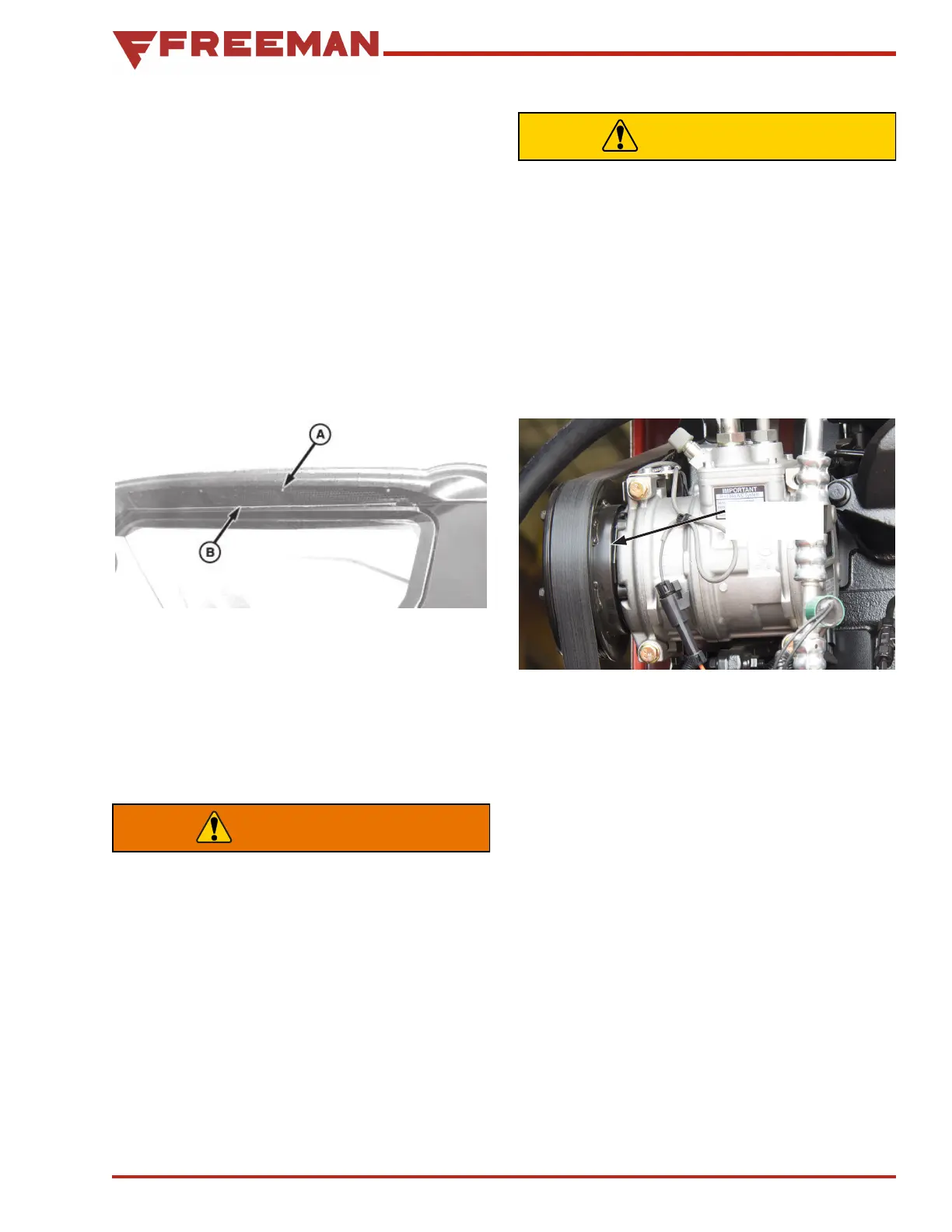

Cleaning Air Intake Panel
Clean this panel only when it looks plugged (see
Figure 94). Air is brought in through the left-hand
side panel only. The right-hand side panel does
not provide cab air.
1. Remove six screws (A) and remove panel (B).
2. Clean with compressed air or water.
3. Install panel and screws.
A. Screw (6 used)
B. Panel
Figure 94. Air Intake Panel
Cleaning Condenser
See Engine Manufacture's Operator's Manual.
Checking Compressor and Drive Belt
WARNING
To prevent injury, never service baler while
it is running. Engine must be off and key
removed.
1. Turn off engine and remove key.
2. Inspect serpentine drive belt. If worn, see
Engine Manufacture's Operator's Manual.
CAUTION
Do not start engine.
3. Turn ignition switch to RUN, turn cab fan switch
on and place temperature knob to coldest
setting.
4. Check compressor pulley (A) for magnetism
by placing a metallic object next to it. If area
is not magnetic, contact your Freeman dealer.
5. Turn ignition switch to OFF position and remove
key.
Compressor
Pulley
Figure 95. Compressor
High Pressure Switch
A high pressure condition can result from insuf-
ficient air flow across the condenser. When this
happens, the high pressure switch shuts off the
compressor (see Figure 96).
1. Turn off engine and remove key.
2. Clean condenser and cab air filters.
3. Check recirculating blower.
4. Check for a worn or broken serpentine engine belt.
5. Check compressor clutch and magnetism at
compressor pulley with air conditioning switch on.
