Rev 4/2018
85
Pickup
When the pickup is in the baling position, be sure
the pick up fingers clear the ground by at least one
inch. Do not rotovate the ground with the pickup
fingers. The pickup height may be adjusted by the
pickup lift link (see Figure 1344). Turn adjusting
nuts until pickup teeth are one inch off the ground.
Tighten adjusting nuts.
FRONT
Pickup Lift Link
Adjusting Nuts

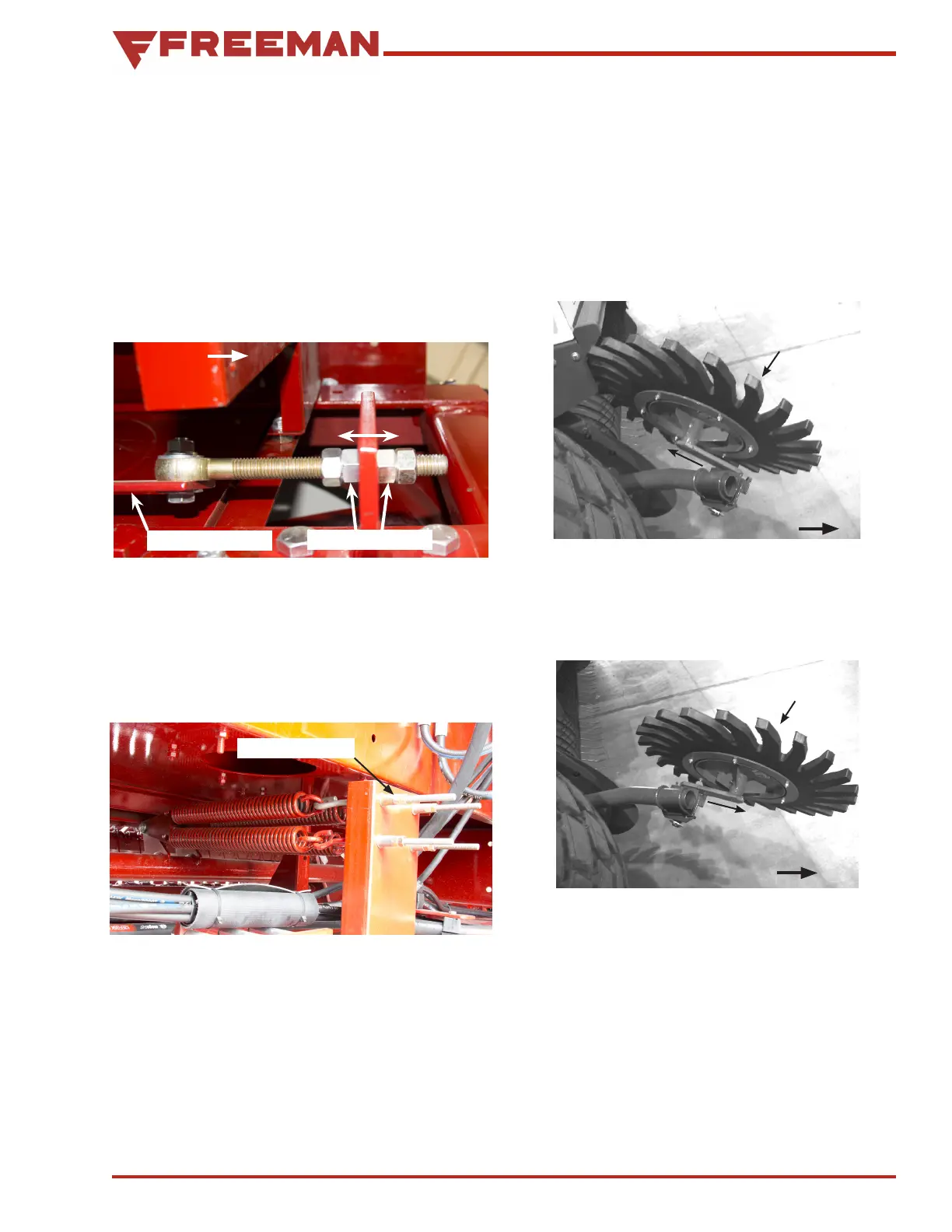

Figure 134. Pickup Lift Link
Adjust the balance springs (see Figure 1355), located
behind the pickup under the baler, so the pickup may
be lifted with one hand, or approximately 35 pounds of
force, with the hay saver wheel in the baling position
(see Figure 137).
Adjusting Nuts
Figure 135. Balance Springs
SETTINGS AND ADJUSTMENTS
Hay Saver Wheel
The hay saver wheel should be in the raised posi-
tion when transporting the baler (see Figure 136).
Once the baler is in the hay field, change the Hay
Saver Wheel to the baling position (see Figure
137).
FRONT
Hay Saver
Wheel
Figure 136. Road Position
FRONT
Hay Saver
Wheel
Figure 137. Baling Position
To Next Page
