Observe Lubrication Symbols
Follow hourly (C) intervals on lubrication symbols
(A) and (B) (see Figure 142).
LUBRICATION SYMBOL (A) Lubricate with Multi-
purpose Lithium base #2, EP grease or equivalent
SAE multipurpose grease (unless otherwise speci-
fied).
OIL SYMBOL (B) Lubricate with SAE 30 or heavier
oil.
10
50
A
B
C

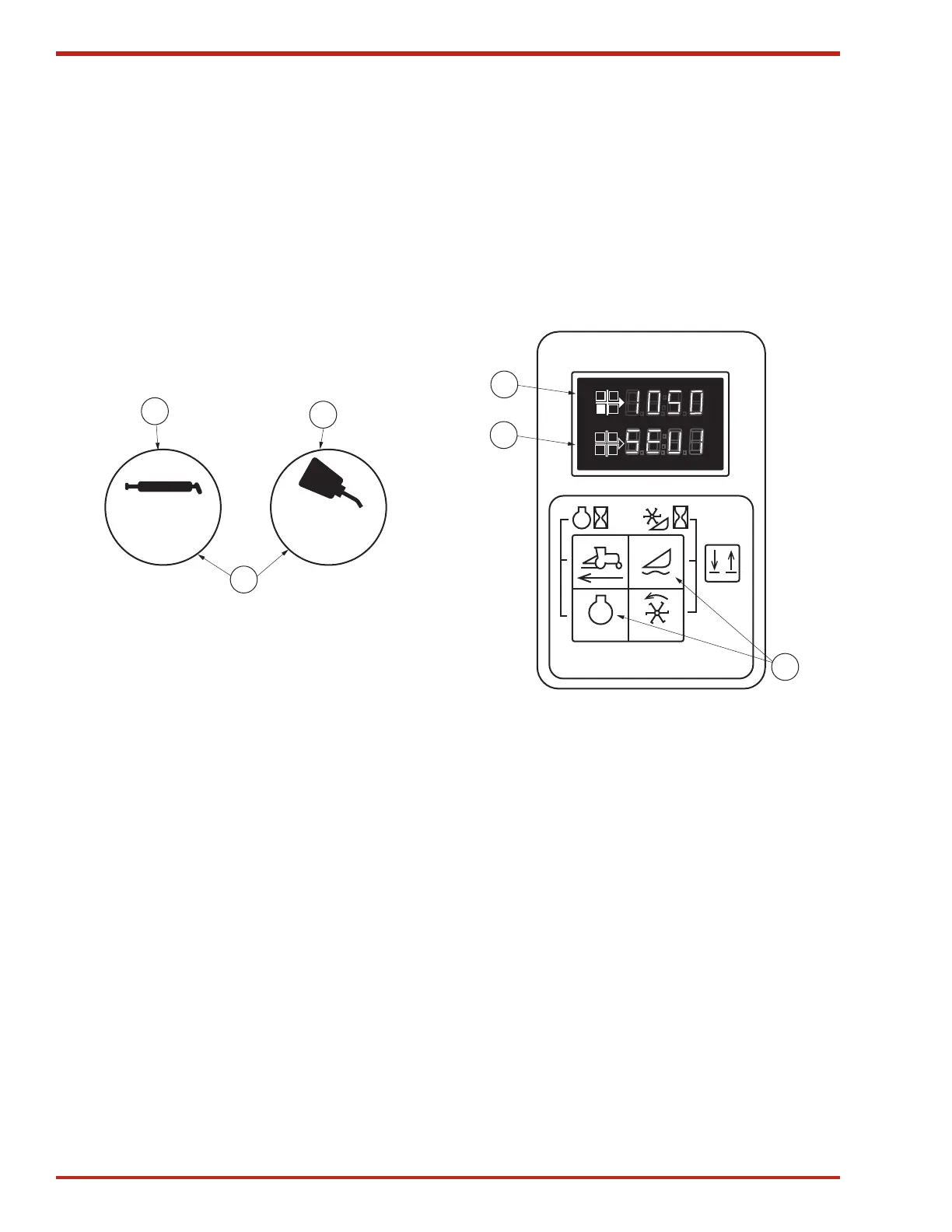

Figure 142. Lubricant Symbols
Service Interval Display
Use operating hours display as a guide when
performing the required service interval on the
baler.
Every 50 hours of engine operation, the charac-
ters “SEV 1” will appear on the lower tachometer
display (B) indicating service is needed (see Figure
143).
NOTE: For resetting the tachometer after
service completion, see the decal on the
inside of the armrest compartment cover (see
Figure 30 on page 29).
After completing the service, reset the tachom-
eter by pressing the ENGINE RPM and TENSION
PRESSURE switches (C) simultaneously and
turning the key to “ON” (third position).
The service interval timer can also be reset if
service is performed between 45 and 50 hours but
not prior to 45 hours. If “SEV 1” appears, pressing
any of the four switches will suppress the message
until the next time the ignition switch is turned on.
n/min
n/min
A
C
B
A. Upper display
B. Lower display
C. Engine RPM & tension pressure buttons
Figure 143. Service Interval Display
