INSTRUMENTS AND CONTROLS
Light Control Switches
(See Figure 20)
A. HAZARD: Flashing amber/red in front and
flashing amber/red in rear of machine. The
hazard lights will come on automatically
when the orange ground speed switch is in
the ROAD position.
B. ROAD: Four headlights, front and rear red
lights, and rear amber flashing lights.
NOTE: When the Field/Road Speed Switch
is in the ROAD position, the machine's lights
will automatically go to the ROAD setting,
regardless of the light switch positions.
C. FIELD: Six headlights and rear red lights.
D. WORK: First Position - Left rear work light.
Second Position - Right & left rear work
lights.

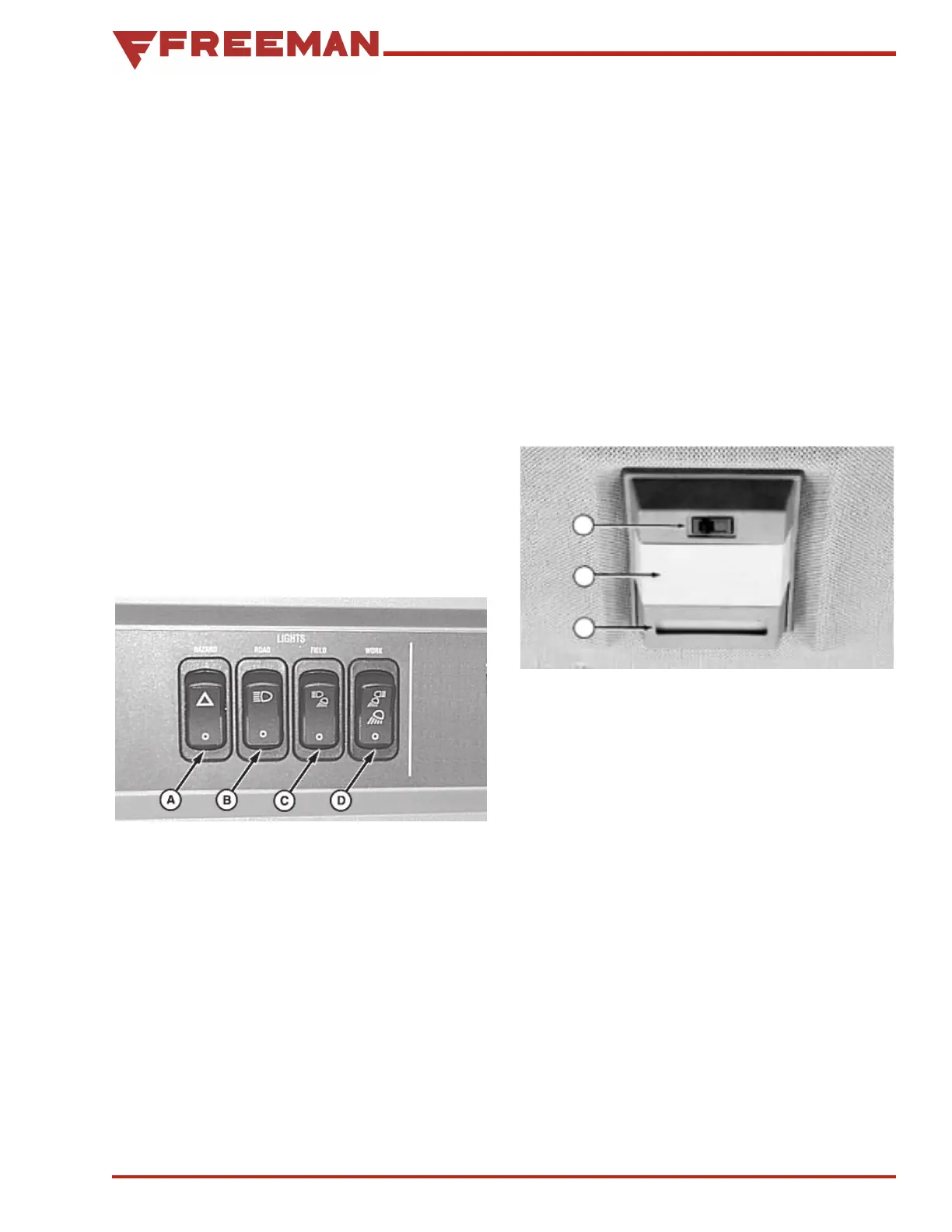

Figure 20. Light Control Switches
Cab Interior Lights
(See Figure 21)
E. Front Console and Armrest Console Light.
This is a green light for use while baling at
night. Field or Road lights must be on for
the Console light to illuminate.
F. Dome Light
G. Dome Light Switch:
Left = Console Light
Center = Off
Right = Dome Light
E
F
G
Figure 21. Interior Lights
