1.1 Main Components 13
1 Basic Operation
1.1 Main Components
The following provides a brief description of the components of the DocuScan C4250/
C3200 A (hereinafter referred to as "the scanner").
Note
• The components that are specific to only one of the models (DocuScan C4250/DocuScan C3200 A) are
noted with a model name.

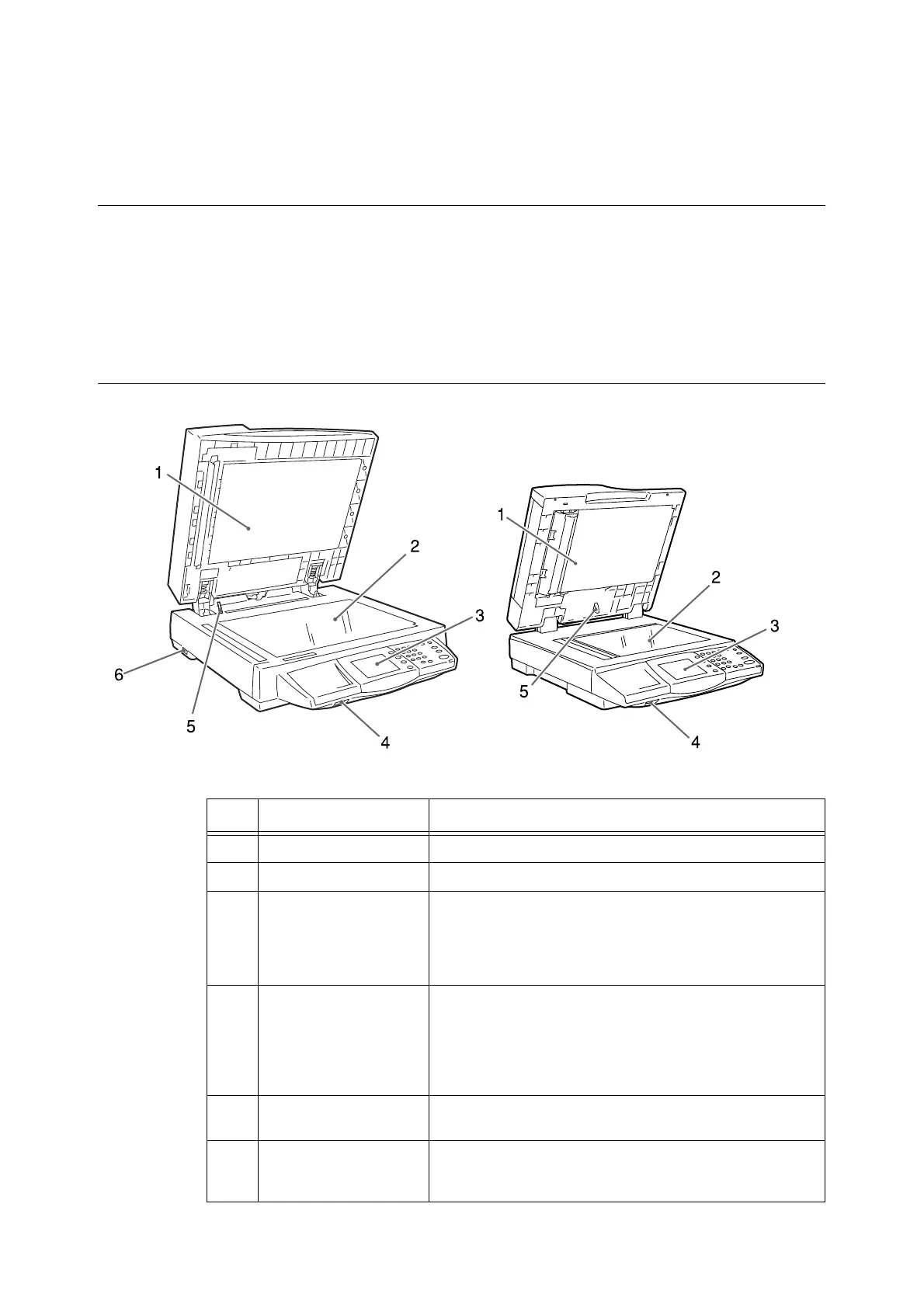

Front View
No. Name Function
1 Document feeder cover Holds documents in place.
2 Document glass Place documents here.
3 Control panel The feature buttons, indicator lamps, and touch panel display are
placed here.
Refer to
• "Control Panel (P. 16)"
4 USB Connector Connects a USB flash memory to the scanner.
Note
• The USB interface of the scanner supports USB 2.0 (Hi-
Speed).
• USB hubs cannot be connected.
5 Document feeder cover
sensor
Detects the size of documents loaded.
6 Carriage lock
(DocuScan C4250 only)
Locks or unlocks the carriage (read head). When in a locked
position, it locks the carriage in place to prevent it from shaking
when moving the scanner.
DocuScan C3200 ADocuScan C4250
