14 1 Basic Operation

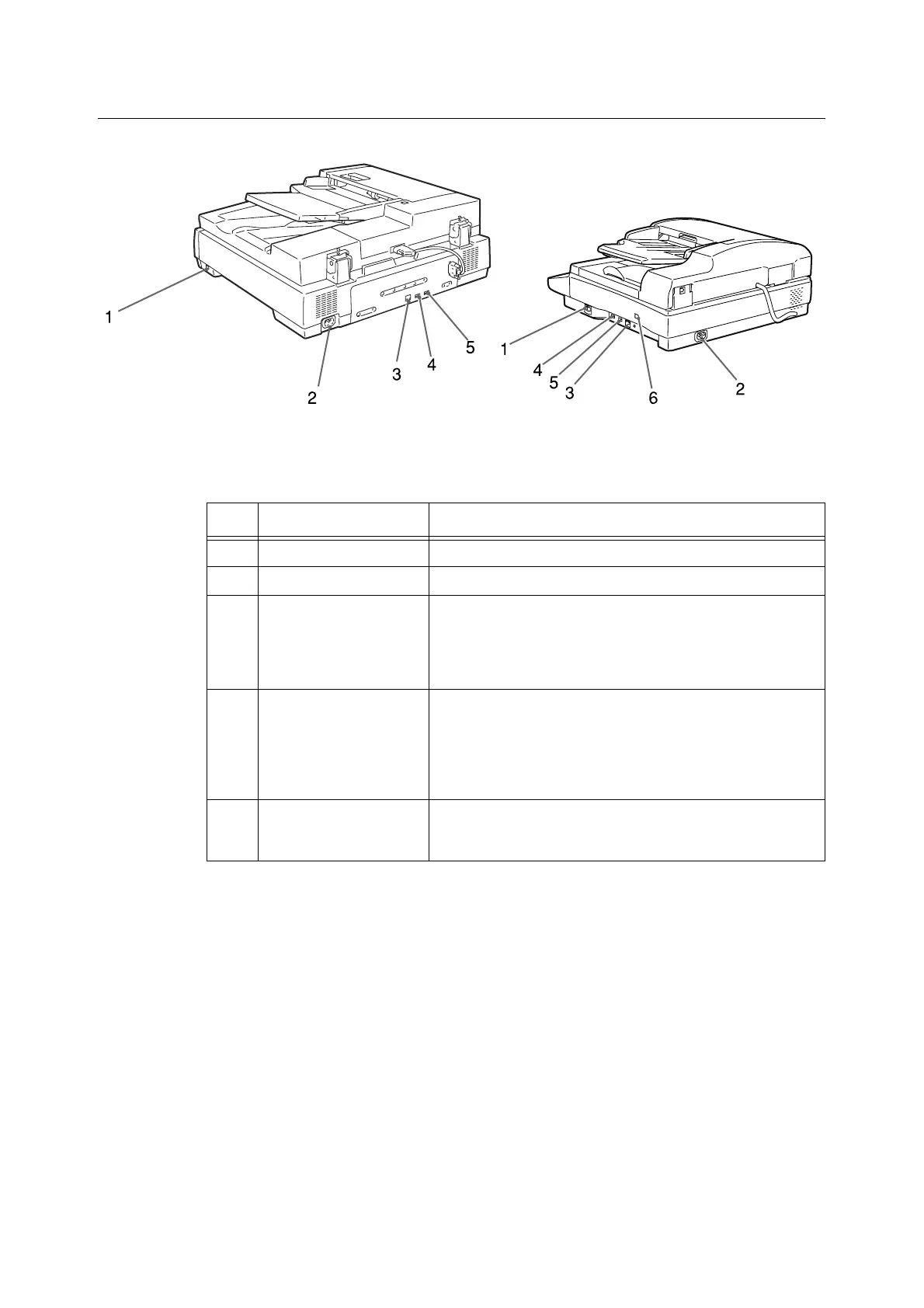

Right/Rear View
No. Name Function
1 Power switch Switches the scanner on/off.
2 Power cord connector Connects a power cord to the scanner.
3 Ethernet interface con-
nector
Connects a network cable to the scanner.
Note
• The Ethernet interface of the scanner supports 100BASE-TX/
10BASE-T.
4, 5 USB connector Connects a USB cable to the scanner.
Note
• The USB interface of the scanner supports USB 2.0 (Hi-
Speed).
• USB hubs cannot be connected.
6 Carriage lock
(DocuScan C3200 A only)
Locks or unlocks the carriage (read head). When in a locked
position, it locks the carriage in place to prevent it from shaking
when moving the scanner.
DocuScan C3200 ADocuScan C4250
