9.2 Cleaning the Scanner 223

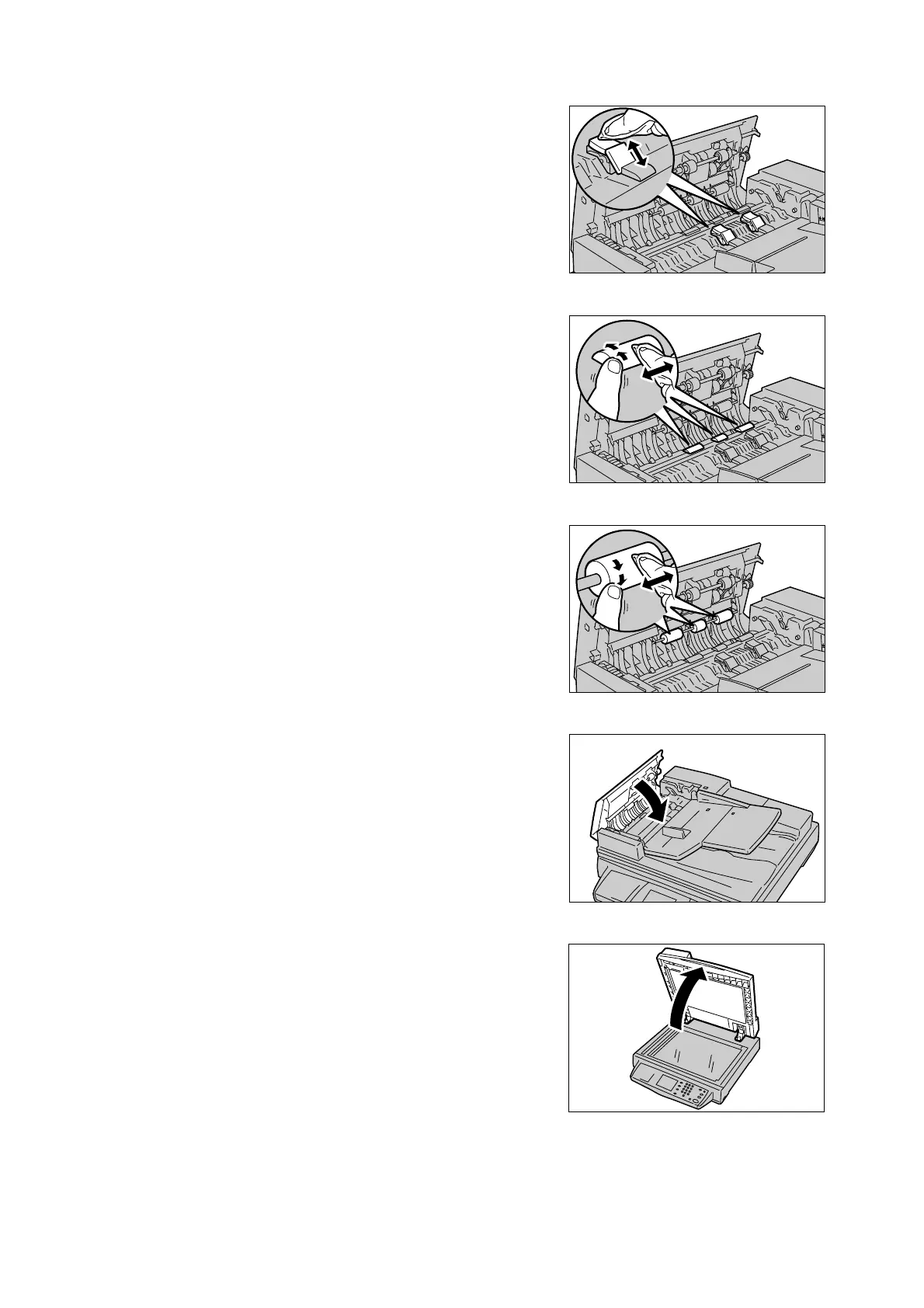

4. Clean each retard pad as illustrated. (There
are two retard pads.)
5. Clean the front rubber of each retard pad in
the direction of the arrow.
6. Clean each registration roller 1 as you
rotate it towards the direction of the arrows.
(There are three registration rollers 1.)
7. Clean each registration roller 2 as you
rotate it towards the direction of the arrows.
(There are three registration rollers 2.)
8. Close the left cover of the document feeder
until it clicks into place.
9. Lift the document feeder cover.
To Next Page
