Fujitsu Airstage V series User Manual

Trouble shooting 28

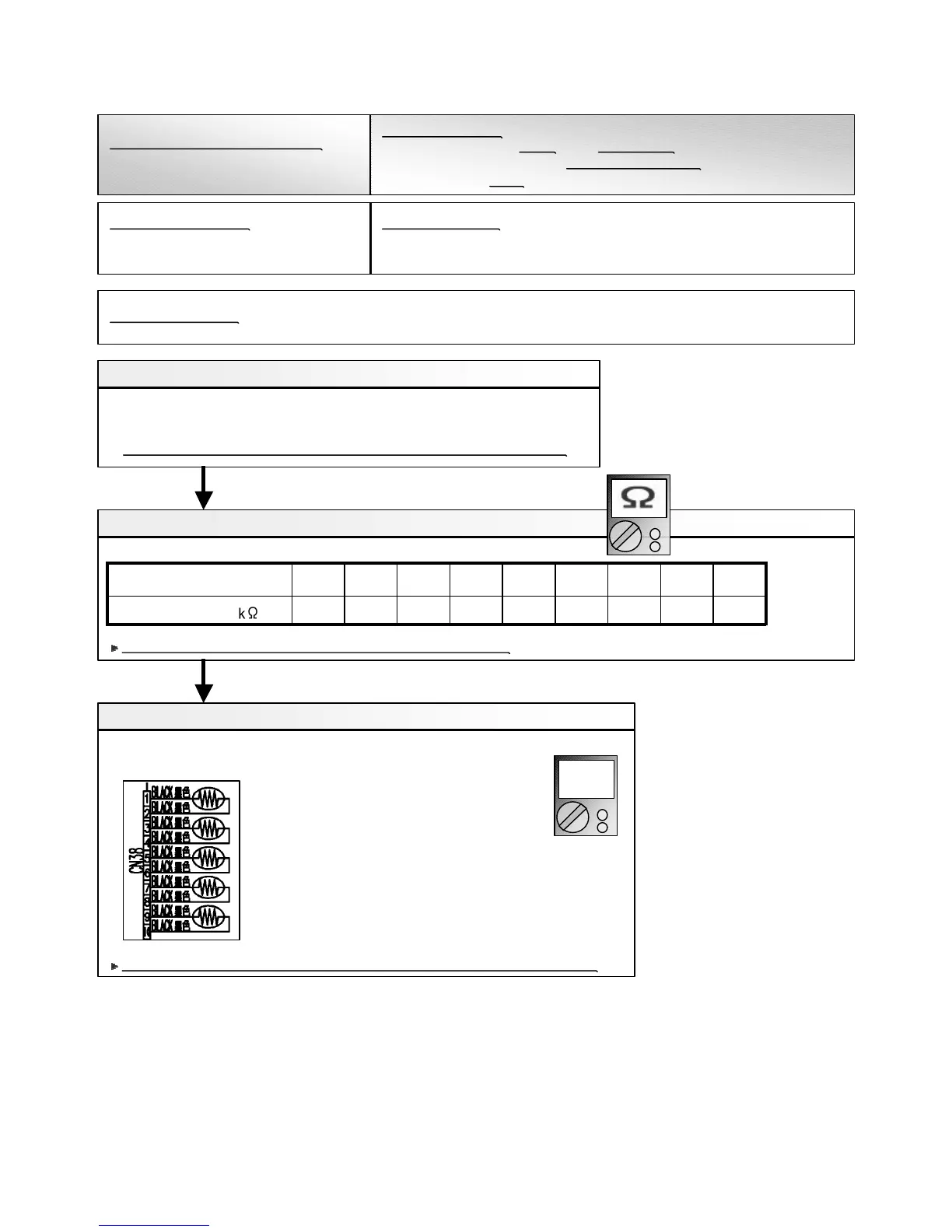

OUTDOOR UNIT Error Method:
RCV Liquid Surface Sensor 3
(Higher Limit) Error
Indicate or Display:
Outdoor Unit : LED1 Flash, LED3 7 Times Blink
Indoor Unit : Operation LED Lighted Continuously (Normal Operation)
ERROR CODE : E : 00
Detective Actuators:
Outdoor Unit Controller PCB circuit
RCV Liquid Surface Detection Thermistor
Detective details:
RCV Liquid Surface Detection Thermistor 3 (Higher Limit) is detected as either
SHORTED or OPEN.
OK
Forecast of Cause : 1. Connector connection failure 2. Thermistor failure 3. Controller PCB failure
Check Point 1 : Check connection of Connector
p Check if connector is loose or removed
p Check erroneous connection
p Check if thermistor cable is open
>>Reset Power when reinstalling due to removed connector or incorrect wiring.
OK
Check Point 2 : Remove connector and check Thermistor resistance value
Thermistor Characteristics (Rough value)
If Thermistor is either open or shorted, replace it and reset the power.
Check Point 3 : Check voltage of Controller PCB (DC5.0V)
Make sure circuit diagram of each indoor unit and check terminal voltage at Thermistor (DC5.0V)
Outdoor Unit Schematic(CN38)
If the voltage does not appear, replace Controller PCB and reset the original address.
DC
RCV Liquid Surface Thermistor 1(CN38:1-2)
RCV Liquid Surface Thermistor 2(CN38:3-4)
RCV Liquid Surface Thermistor 3(CN38:5-6)
SC Heat Exchanger Gas Outlet Temp. Thermistor(CN38:7-8)
Heat Exchanger Temperature Thermistor 1 (CN38:9-10)
Resistance Value ( )
Temperature (°C)
4.9
25.0
6.1
20
3.9
30
7.79.712.416.120.927.5
15.0105.00-5.0-10
06-39
(No error display)
