2-1-3 WIRED, SIMPLE REMOTE CONTROLLER CIRCUIT BOARD
MODEL : UTB - PB
MODEL : UTB - RA

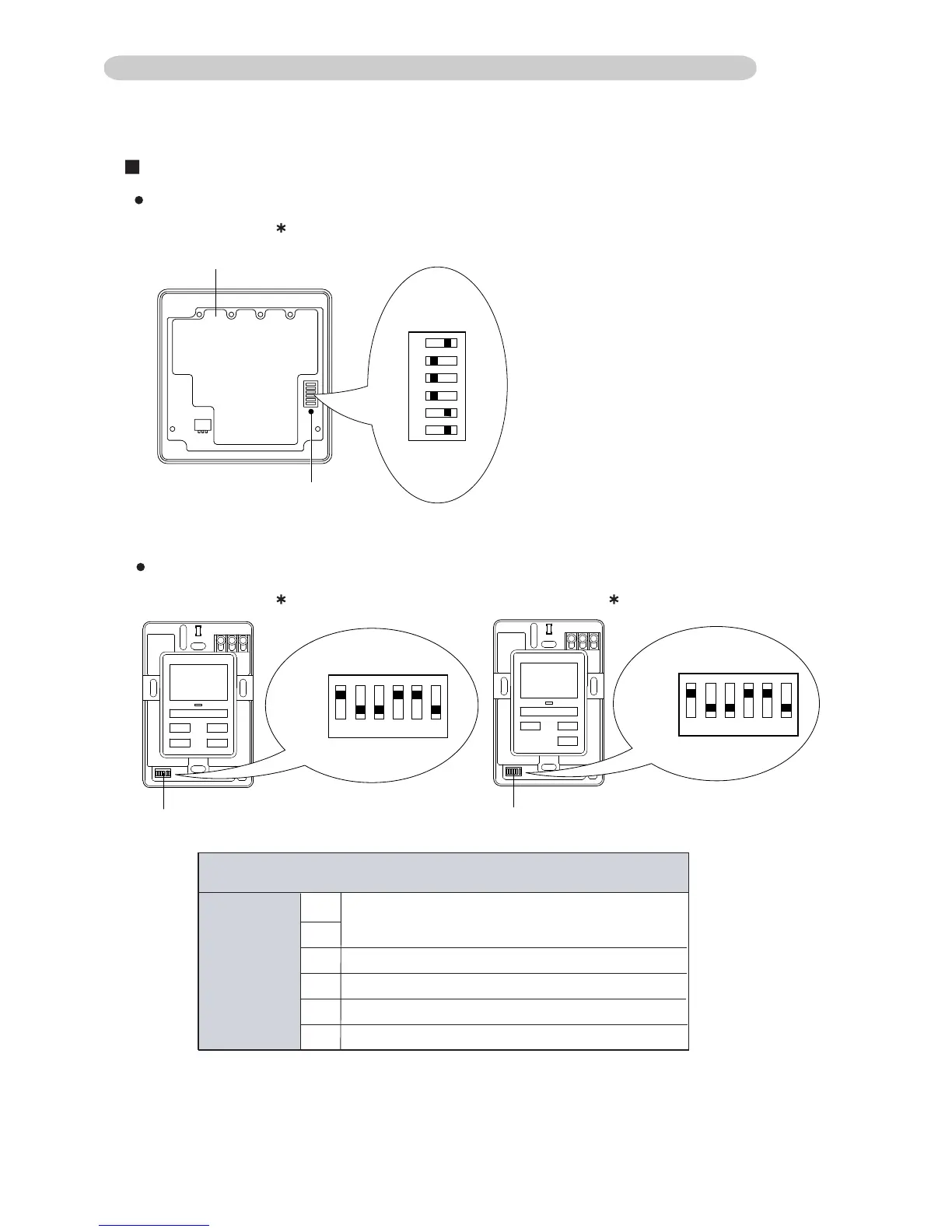

SWITCH POSITION
Wired remote controller
Simple remote controller
DIP Switch
Front case (back side)
ONOFF
1
2
3
4
5
6
ON
OFF
1 2 3 4 5 6
DIP switch
ON
OFF
1 2 3 4 5 6
DIP switch
Wired, simple remote controller
DIP SW
Dual remote controller setting
Group control setting
Model setting
Auto changeover setting
1
2
3
4
5
6
Memory backup setting (Wired remote controller only)
MODEL : UTB - UB
