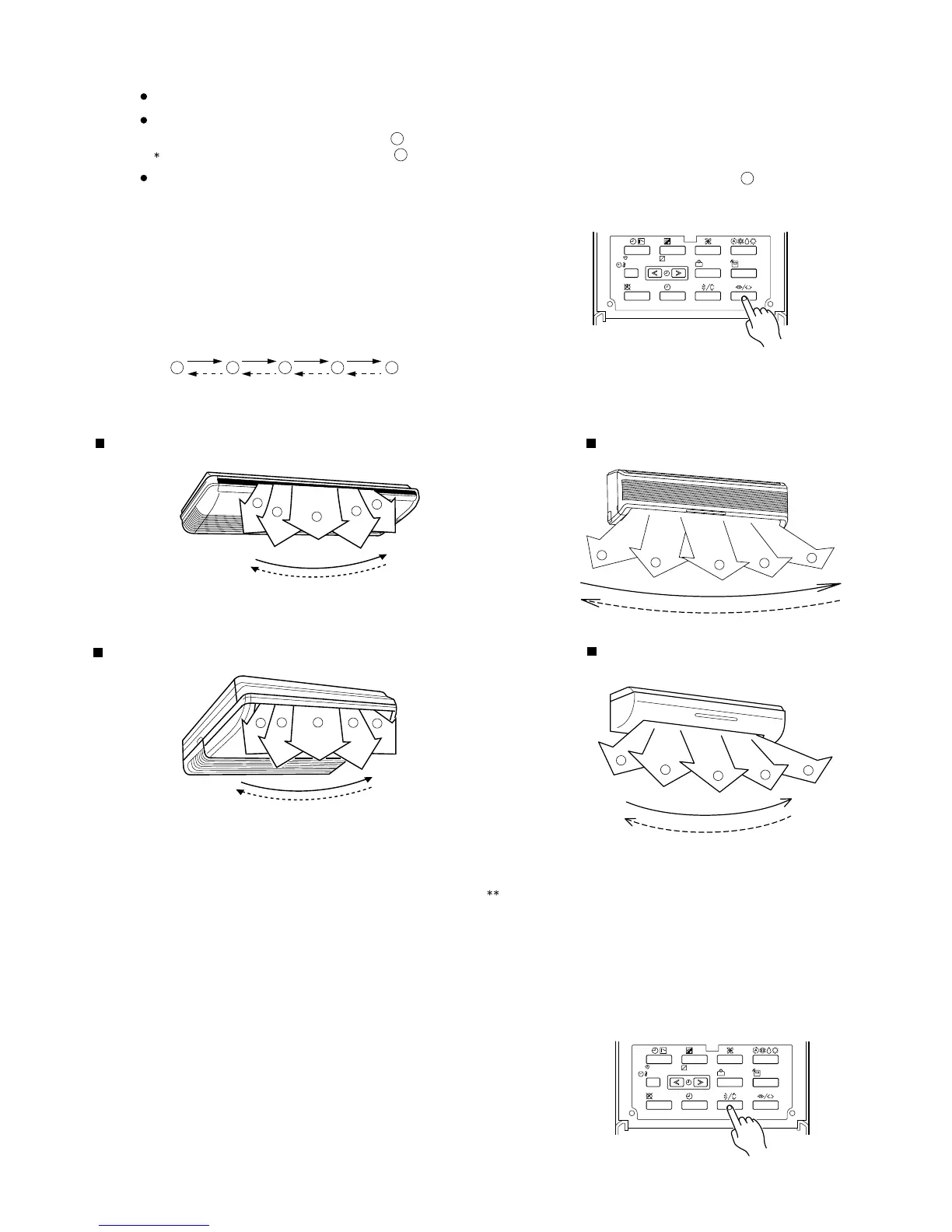

Horizontal Air Direction Adjustment
This instructions are applicable to "LARGE CEILING TYPE",
"UNIVERSAL FLOOR/CEILING TYPE", "WALL MOUNTED TYPE"
and "CEILING WALL TYPE".
Press the HORIZONTAL AIR FLOW DIRECTION SET button.
Each time the button is pressed, the air direction range will
change as follows:
The remote controller's display does not change.
LARGE CEILING TYPE
UNIVERSAL FLOOR/CEILING TYPE
WALL MOUNTED TYPE
Example : When set to horizontal air direction.
Use the air direction adjustments within the ranges shown above.
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
During Cooling mode : Horizontal flow
During Heating mode : Downward flow
During AUTO mode operation, for the first minute after beginning operation, airflow will be horizontal ,
the air direction cannot be adjusted during this period.
(2) SWING OPERATION
Instructions relating to "the indoor unit's indicator lamp" ( ) are applicable to "LARGE CEILING TYPE", "UNIVERSAL
FLOOR / CEILING TYPE", "CASSETTE TYPE", "WALL MOUNTED TYPE","COMPACT WALL MOUNTED TYPE" and
"CEILING WALL TYPE".
Begin air conditioner operation before performing this procedure.
To select Vertical airflow SWING Operation
This instructions are applicable to "LARGE CEILING TYPE", "UNIVERSAL FLOOR/CEILING TYPE",
"CASSETTE TYPE", "WALL MOUNTED TYPE", "COMPACT WALL MOUNTED TYPE" and "CEILING WALL TYPE".
1
4
1
1 2 3 4 5
1
3
4
5
2
05-05
1
2
3
4
5
1
2
3
4
5
CEILING WALL TYPE
Press the VERTICAL SWING button for more than two seconds.
The remote controller's VERTICAL SWING lamp (orange) **and
indoor unit's SWING indicator lamp (VERTICAL SWING)
(orange) will light up.
In this mode, the UP/DOWN air direction flaps will swing automat-
ically to direct the air flow both up and down.
Example : When set to vertical swing.
DAY OFF
DELETE SET
ENERGY
SAVE
SET BACK
DAY
CLOCK ADJUST
THERMO
SENSOR
DAY OFF
DELETE SET
ENERGY
SAVE
SET BACK
DAY
CLOCK ADJUST
THERMO
SENSOR
1
3
4
5
2
To Next Page
