2-4-4 Central Remote Controller / PC Controller
1. Input
Indoor units which stored into Central R.C. or PC controller can be operated
or stopped by this input.
CN9
Ch1
Indoor
Unit
(1) Control input (All on / All off)
All ON
CN9
(RED)
DipSW2-1
Input select
Central remote controller
PC controller
Input select can be set in environmental set up.
(Please refer to PC Controller's setting manual.)

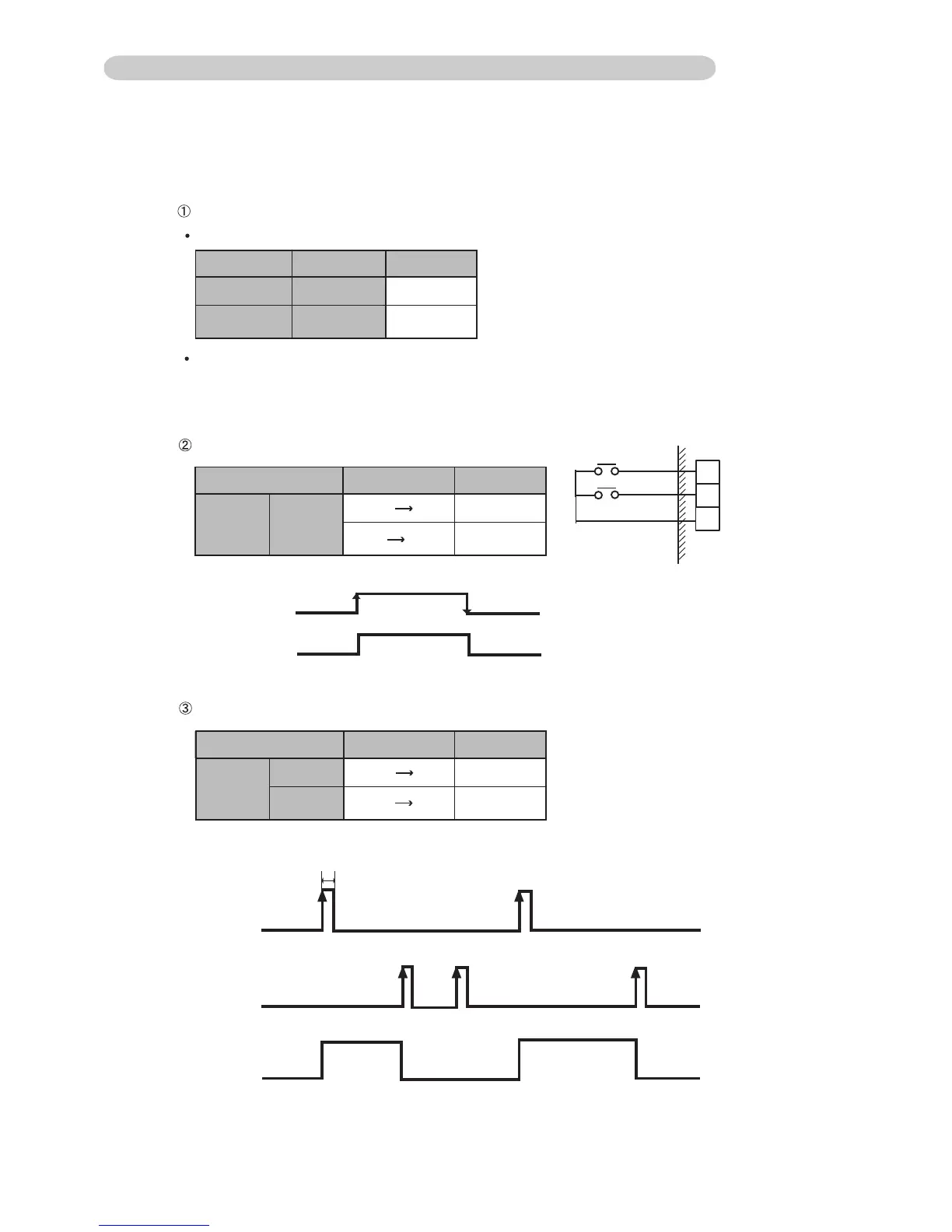

In the case of "Edge" input
CONNECTOR INPUT SIGNAL COMMAND
CN9
(RED)
All ON
All OFF
OFF ON
ON OFF
On
Off
CN9
Ch1
Indoor
Unit
All ON
All OFF
In the case of "Pulse" input
DipSW2-2 Input select
"Edge"
"Pulse"
ON
ON
CN9
Ch2
OFF
ON
Ch1
CONNECTOR INPUT SIGNAL COMMAND
CN9
(RED)
All ON
All OFF
OFF ON
Ch1
Ch2
OFF ON
All OFF
On
Off
On
Off
The width of pulse must be longer than 300ms.
Ch1
1
2
3
P.C.B
Ch2
