SERVICE PARTS INFORMATION 11

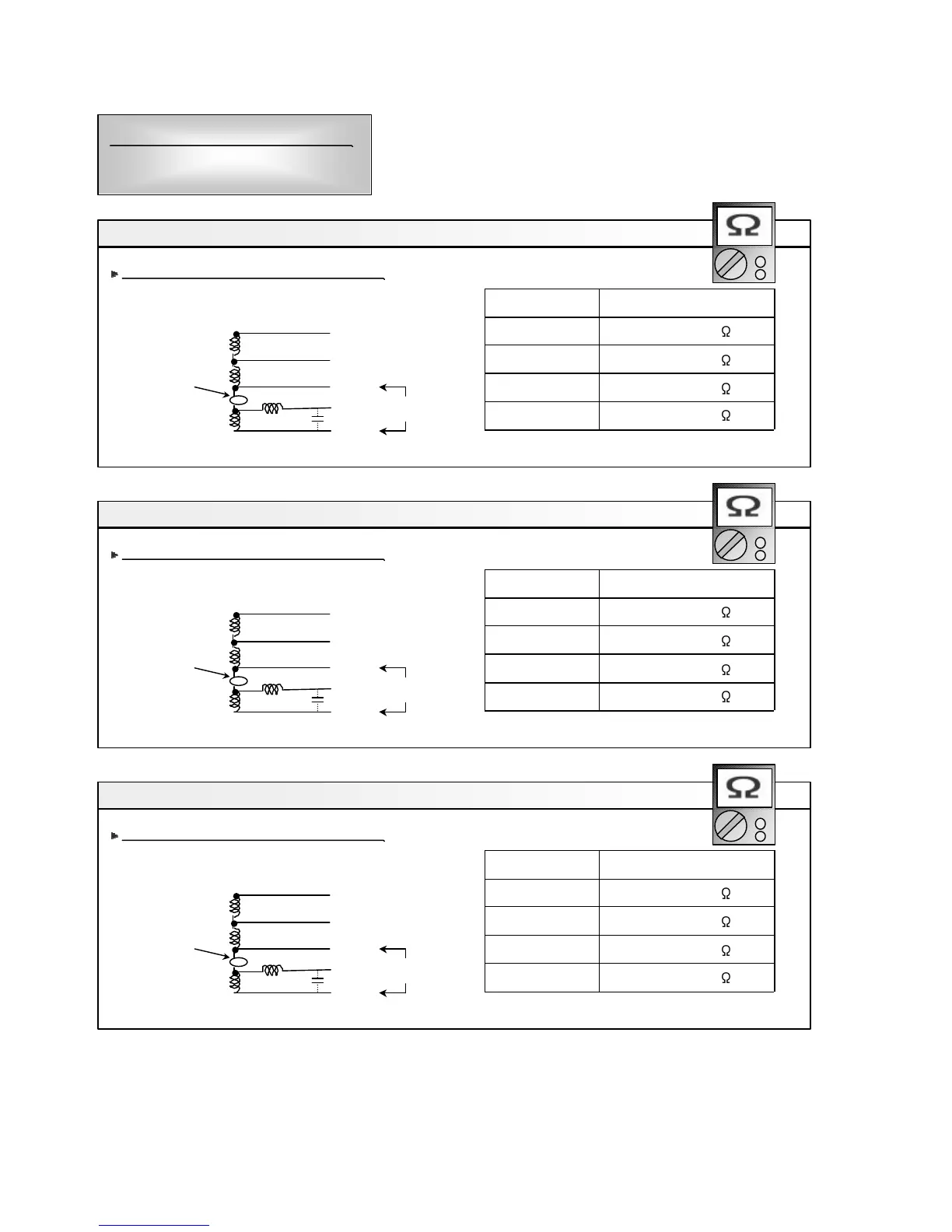

Indoor Unit Fan Motor
Check Point : ABYA12 / 14LATF
p Check each winding resistance of the motor
If Resistance value is abnormal, replace motor.
59.5 ± 8%Violet - Blue
59.5 ± 8%Red - Violet
337 ± 8%Red - Black
White - Red
Read Wire
252 ± 8%
Resistance value(20°C)
Low(Blue)
Med(Violet)
Hi(Red)
(Black)
(White)
(AC)
Thermal protector
(150°C)
Check Point : ABYA18LATF
p Check each winding resistance of the motor
If Resistance value is abnormal, replace motor.
63.1 ± 8%Violet - Blue
63.1 ± 8%Red - Violet
243 ± 8%Red - Black
White - Red
Read Wire
134
±
8%
Resistance value(20°C)
Low(Blue)
Med(Violet)
Hi(Red)
(Black)
(White)
(AC)
Thermal protector
(150°C)
Check Point : ABYA24LATF
p Check each winding resistance of the motor
If Resistance value is abnormal, replace motor.
64.9 ± 8%Violet - Blue
64.9 ± 8%Red - Violet
181 ± 8%Red - Black
White - Red
Read Wire
110 ± 8%
Resistance value(20°C)
Low(Blue)
Med(Violet)
Hi(Red)
(Black)
(White)
(AC)
Thermal protector
(150°C)
06-98
