06-107
SERVICE PARTS INFORMATION 15

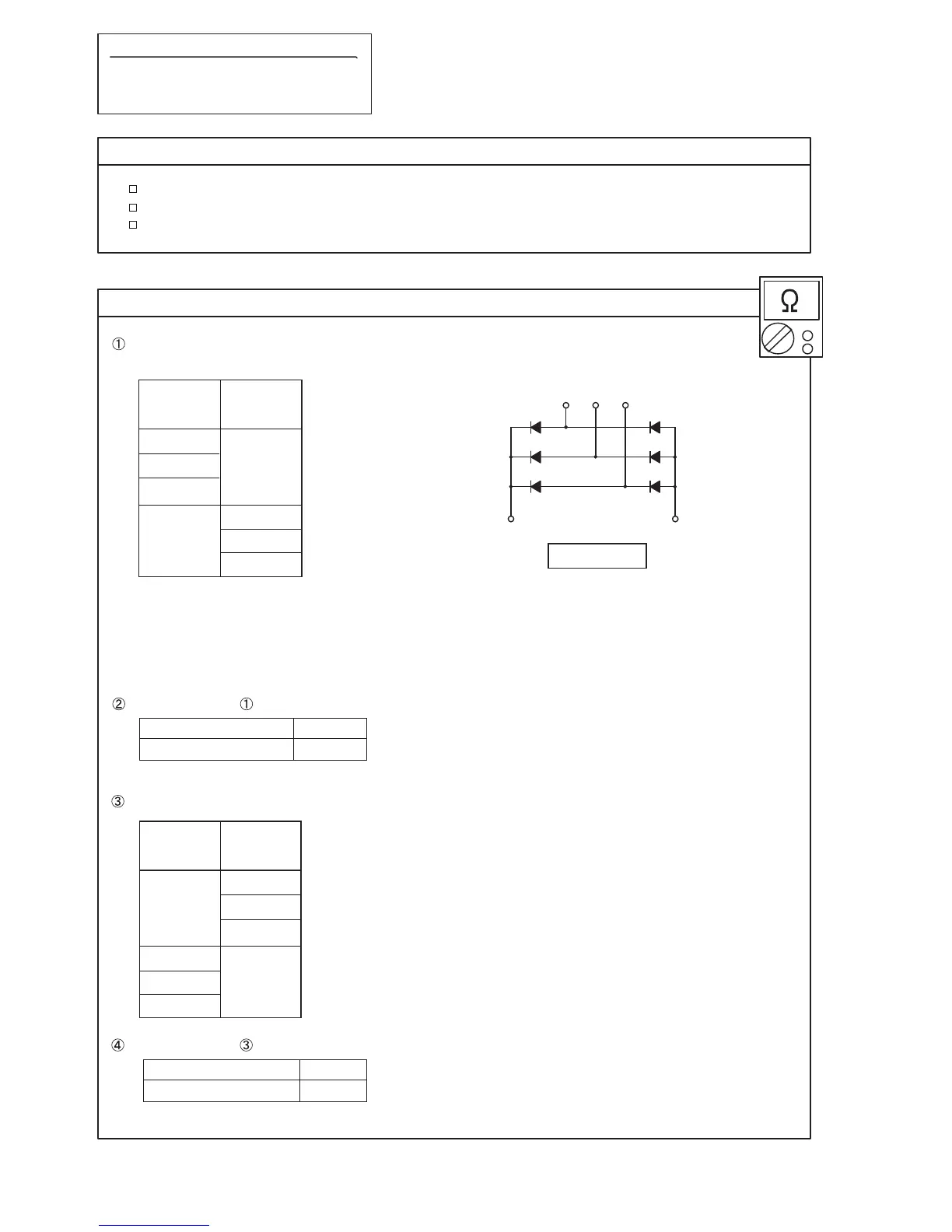

Diode Bridge
(Mounted on Transistor PCB)
Check Point 1 : Appearance check
Check Point 2 : Electric check
Pin 1
Pin 2
Pin 3
Pin 23
Pin 21
Pin 2
Pin 1
Pin 3
In the 3-phase diode bridge single part state, set the tester to the "Resistance" mode,
and check for open/short between the following terminals.
All 6 points shorted : Normal
1 or more points open : Defective
Tester + side
(red)
Tester - side
(black)
Tester + side
(red)
Tester - side
(black)
Pin 1
Pin 2
Pin 3
Pin 23
Pin 21
Pin 2
Pin 1
Pin 3
Set the tester to the "Resistance" mode, and check for open/short between the following terminals.
All 6 points open : Normal
1 or more points shorted : Defective
No fissures, breaks, damage, etc. at body and terminal section?
Is the rear of the body coated with silicone grease?
Are there no abnormalities at threaded parts (stripped threads, deformation, damage, etc.) ?
+ 21 - 23
Diode bridge
Judge the result of as follows:
Judge the result of as follows:
1~ 2~ 3~
When it is difficult to measure, it is no problem also with the terminal on the same pattern.
For example. Pin 1 ---> TB-L1
Pin 2 ---> TB-L2
Pin 3 ---> TB-L3
Pin 21 ---> Relay(X52A) terminal near the pin 21
Pin 23 ---> TB-N1
