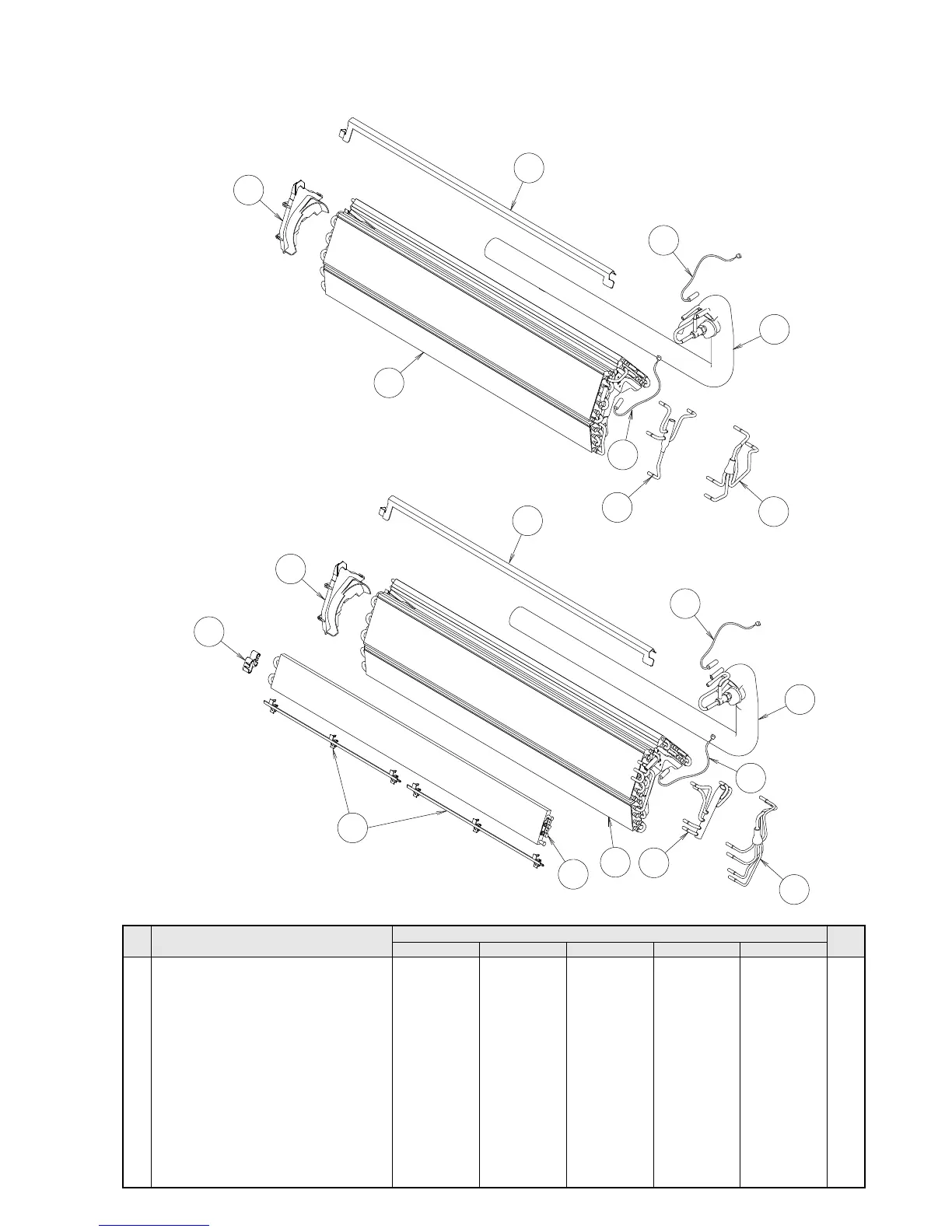

08-73
AS*A18 AS*A24 AS*A30
44 KIT (EVA SUP L SA)
45 KIT(EVA BRKT SA)
EVAPORATOR TOTAL ASSY46
- EVAPORATOR ASSY
47 EVAPORATOR TOTAL ASSY
- EVAPORATOR A ASSY
Parts No.
Description
Ref
No.
Q'ty
9371165011
9371166018
9369202223
9372102015
-
-
9371165011
9371166018
9369202223
9368576011
-
-
9371165011
9371166018
-
-
9369202230
9369366000
48 EVAPORATOR B ASSY - - 9369373008
49 JOINT PIPE ASSY 9373768067 9373768067 9373768074
50 DISTRIBUTOR ASSY 9371041001 9371041001 9371091006
51 COUPLING PIPE ASSY 9369241000 9369241000 9369370007
52 EVA HOLDER - - 9368775001
53 WATER PLATE - - 9368569006
54 THERMISTOR (PIPE-MID) 9900367015 9900367015 9900367015
55 THERMISTOR (PIPE-IN) 9900220037 9900220037 9900220037
MODELS : AS*A18, AS*A24
MODELS : AS*A30
45
49
45
44
44
49
51
51
50
50
52
46
47
48
53
55
55
54
54
