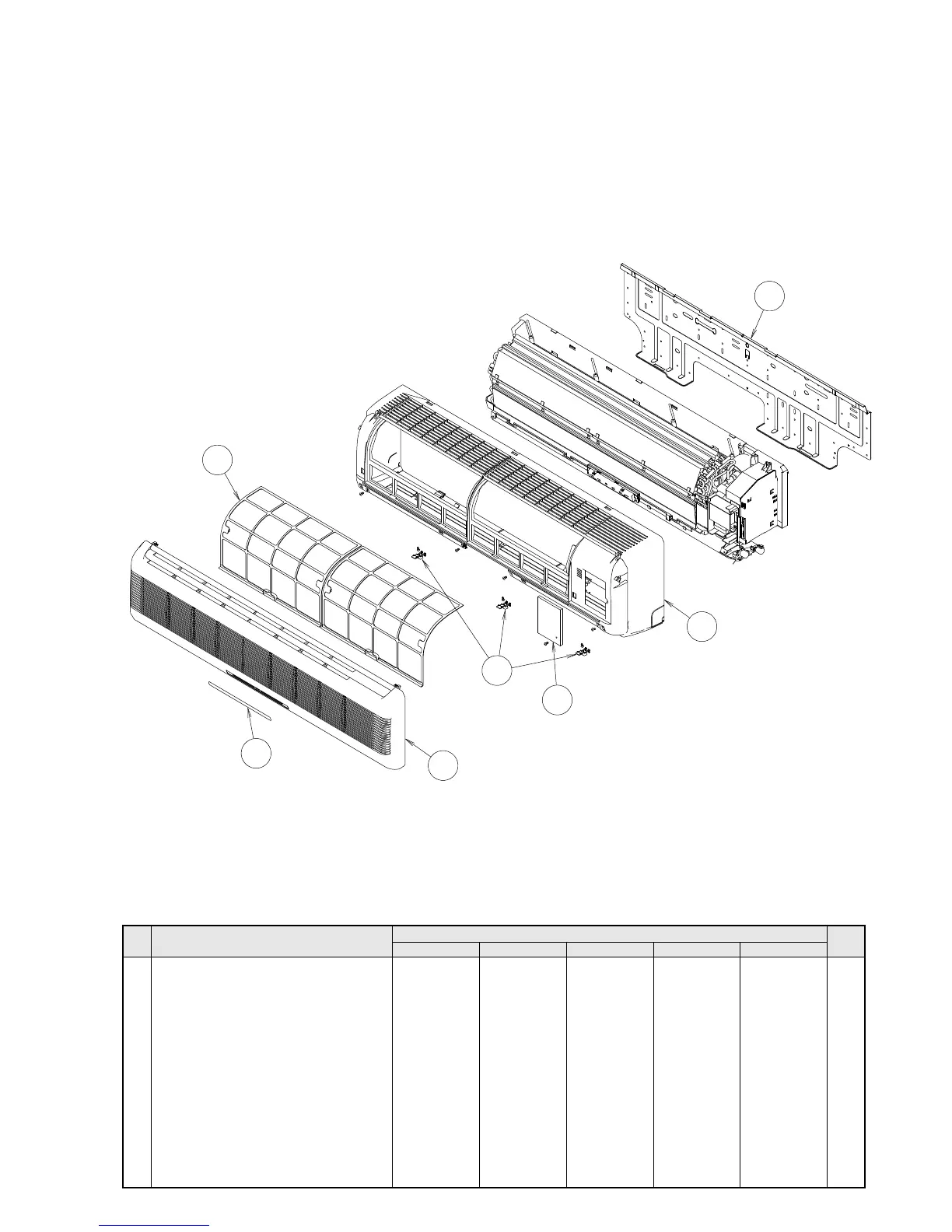

Fujitsu Airstage V series - Indoor Unit Exploded View - Models: AS*A18, AS*A24, AS*A30

MODELS :
AS*A30
AS*A18, AS*A24
08-70
AS*A18 AS*A24 AS*A30
1 FIXING PLATE
2 FRONT PANEL
3 CONTROL BOX COVER
4 SCREW COVER
5 AIR FILTER
6 INTAKE GRILLE F
Parts No.
Description
Ref
No.
Q'ty
9368579005
9368540012
9368611002
9368576011
9373613015
9368541019
9368579005
9368540012
9368611002
9368576011
9373613015
9368541019
9368579005
9368540012
9368611002
9368576011
9373613015
9368541019
7 DISPLAY F 9368757014 9368757014 9368757014
1
4
3
2
5
6
7
