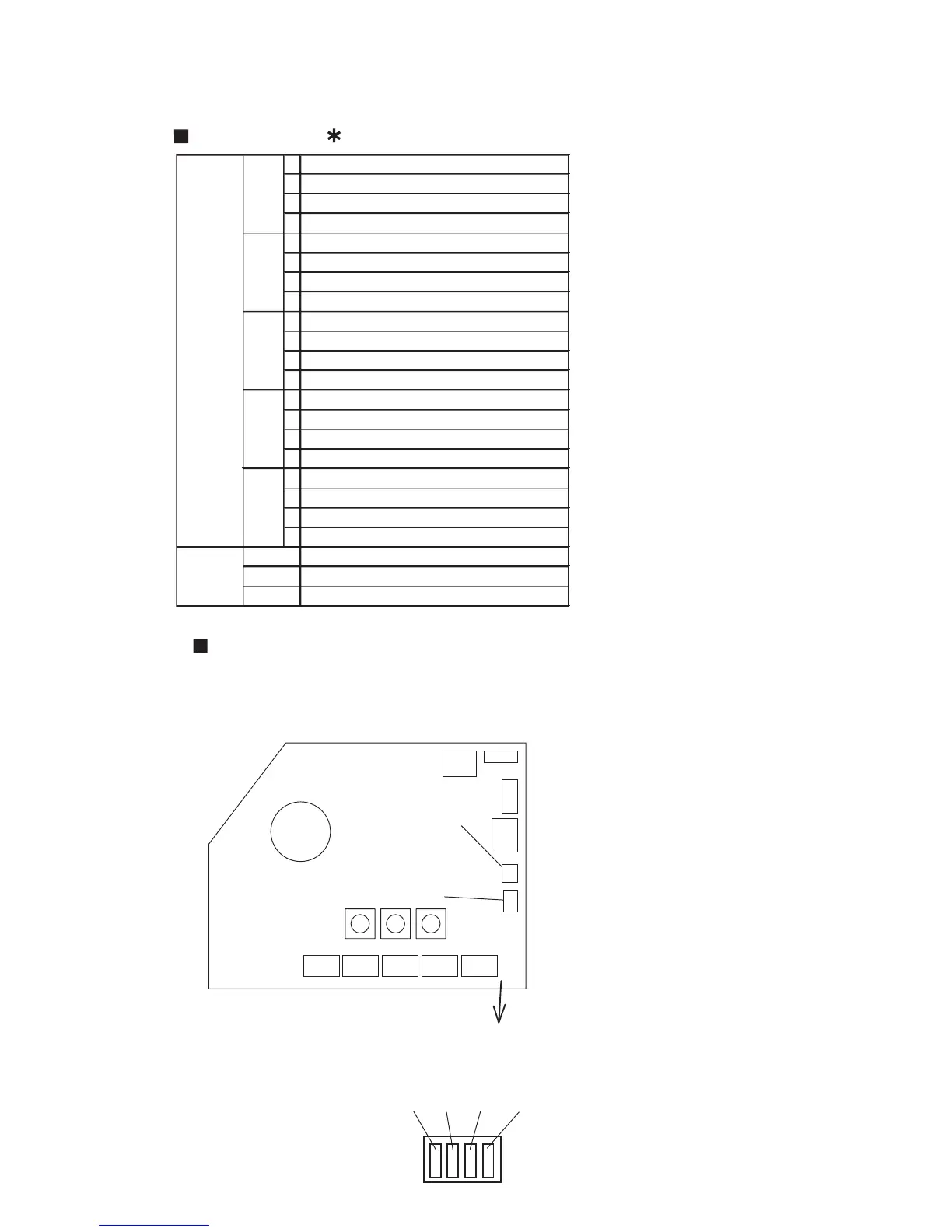

SWITCH POSITION
Compact wall mounted type indoor unit control circuit board
Controller PCB
02-02
2.COMPACT WALL MOUNTED TYPE
MODELS : AS E07-14
1 Forbidden (Indoor unit fan speed switch 1)
2 Forbidden (Indoor unit fan speed switch 2)
3 Forbidden
4 External input select edge / pulse
1 Forbidden (Indoor unit model code)
2 Forbidden (Indoor unit model code)
3 Forbidden
4 Auto restart validity / invalidity
1 Wireless remote controller custom code switch 1
2 Wireless remote controller custom code switch 2
3 Outdoor unit series setting
4 Refrigerant type
1 Indoor unit address switch 2
2 Indoor unit address switch 3
3 Forbidden
4 Forbidden
1 Refrigerant circuit address switch 2
2 Refrigerant circuit address switch 3
3 Refrigerant circuit address switch 4
4 Forbidden
Indoor unit address switch 1
Refrigerant circuit address switch 1
Remote controller address switch
Rotary SW
DIP SW
SW 1
SW 2
SW 3
SW 4
SW 5
SW 6
SW 7
SW 8
DIP SWITCH (SW1~5)
Example : SW3
ON
OFF
SW
3-1
SW
3-2
SW
3-4
SW
3-3
CN8
CN9
SW1SW2SW3SW4SW5
SW8 SW7 SW6
