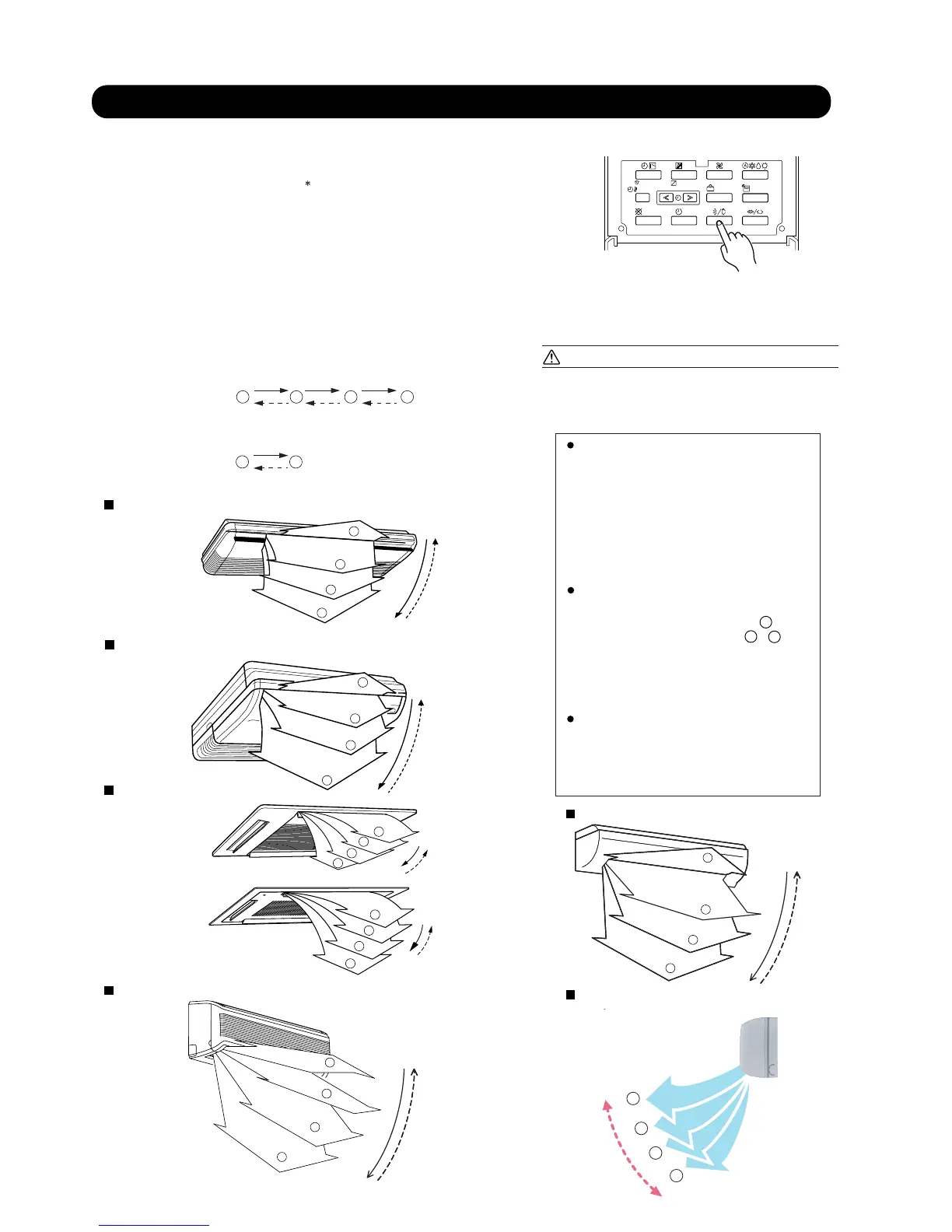

5-3 LOUVER CONTROL
05-04
Instructions relating to heating ( ) are applicable only to heat pump type
outdoor unit.
Begin air conditioner operation before performing this procedure.
Vertical Air Direction Adjustment
This instructions are applicable to "LARGE CEILING TYPE",
"UNIVERSAL FLOOR/CEILING TYPE", "CASSETTE TYPE",
"WALL MOUNTED TYPE","COMPACT WALL MOUNTED TYPE"
and "CEILING WALL TYPE".
Press the VERTICAL AIR FLOW DIRECTION SET button.
Each time the button is pressed, the air direction will change as
follows, expept for compact wall mounted type indoor units operating
under cooling mode.
LARGE CEILING TYPE
The remote controller's display does not change.
UNIVERSAL FLOOR/CEILING TYPE
Example : When set to vertical air direction.
DANGER!
(1) ADJUSTING THE DIRECTION OF AIR CIRCULATION
WALL MOUNTED TYPE
1 2 3 4
1
2
3
4
1
2
3
4
1
2
3
4
3
4
2
1
Never place fingers or foreign objects inside the
outlet ports, since the internal fan opertes at
high speed and could cause personal injury.
Always use the remote control umit's
AIR FLOW DIRECTION button to adjust
the UP/DOWN air direction flaps or
RIGHT/LEFT air direction louvers. At-
tempting to move them manually
could result in improper operation; in
this case, stop operation and restart.
The louvers should begin to operate
properly again.
During use of the Cooling and Dry
modes, do not set the UP/DOWN air
direction flaps in the position of
(Compact wall mounted type &
long periods of time, since water vapor
may condense near the outlet port and
drops of water may drip from the air
conditioner.
When used in a room with infants, chil-
dren, elderly or sick persons, the air
direction and room temperature
should be considered carefully when
making settings.
4
CEILING WALL TYPE
For compact wall mounted type indoor units operating under
cooling mode.
1 2
4
3
for
COMPACT WALL MOUNTED TYPE
1
2
3
4
DAY OFF
DELETE SET
ENERGY
SAVE
SET BACK
DAY
CLOCK ADJUST
THERMO
SENSOR
CASSETTE TYPE
1
3
4
2
1
2
3
4
To Next Page
