Fujitsu Airstage V series User Manual

MODELS :
AS*A30
AS*A18, AS*A24
08-74
AS*A18 AS*A24 AS*A30

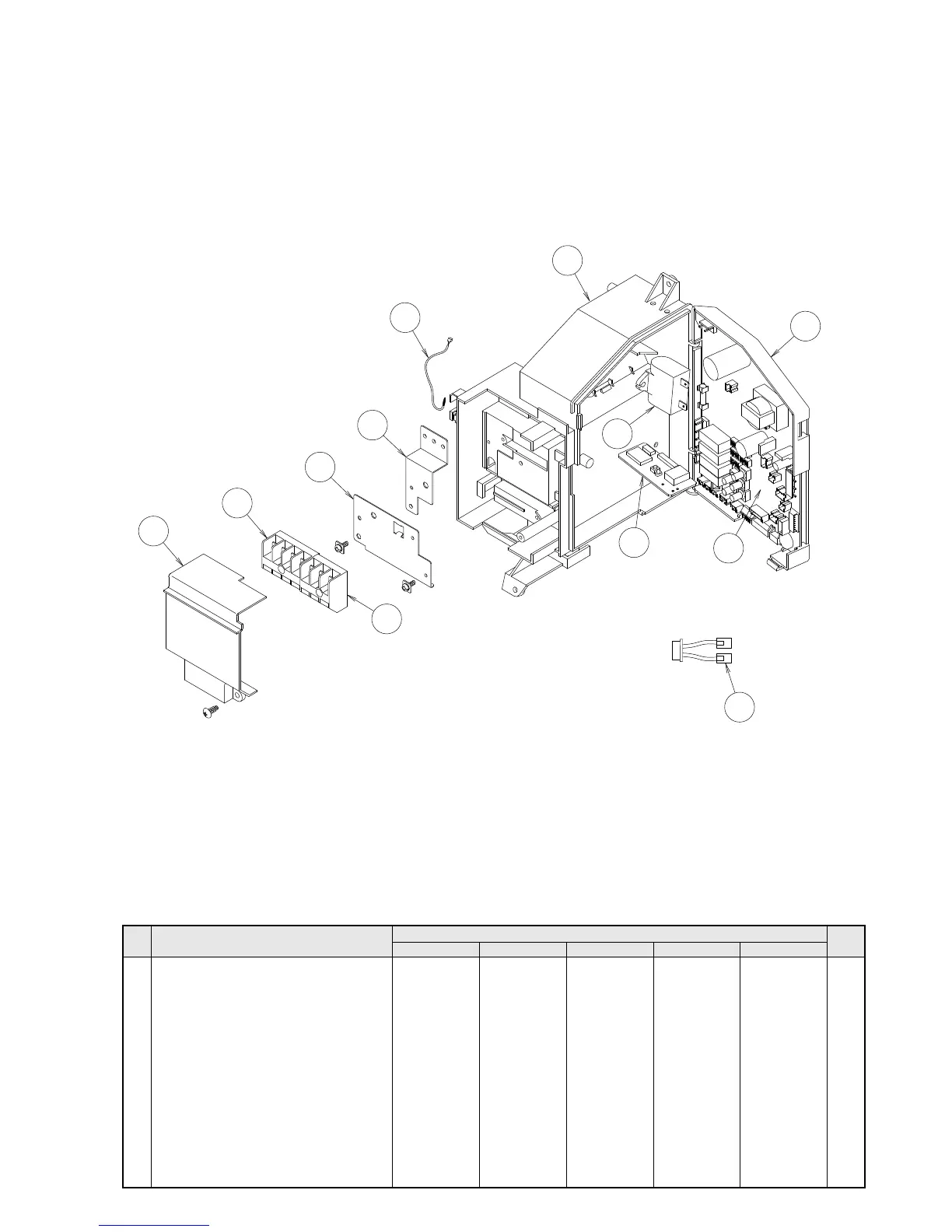

100 CONTROL BOX COVER R
101 CONTROL BOX
102 EARTH PLATE
103 TERMINAL PLATE
104 TERMINAL 4P
105 TERMINAL 3P
Parts No.
Description
Ref
No.
Q'ty
9369631009
9368543006
9368580001
9374875016
9306488086
9703345029
9369631009
9368543006
9368580001
9374875016
9306488086
9703345029
9369631009
9368543006
9368580001
9374875016
9306488086
9703345029
106 CORD HOLDER 9368566005 9368566005 9368566005
107 CAPACITOR (FAN MOTOR) 9704305060 9704305060 9704305060
108 COMMUNICATION PCB 9704424044 9704424044 9704424044
109 CONTROLLER PCB 9704815033 9704815033 9704815033
110 THERMISTOR (ROOM) 9900368012 9900368012 9900368012
THERMISTOR CONNECTION WIRE 9705465015 9705465015 9705465015111
- FUSE 250V 3.15A 0600222512 0600222512 0600222512
- FUSE HOLDER 0500158072 0500158072 0500158072
111
100
104
101
103
102
106
105
107
108
109
110
