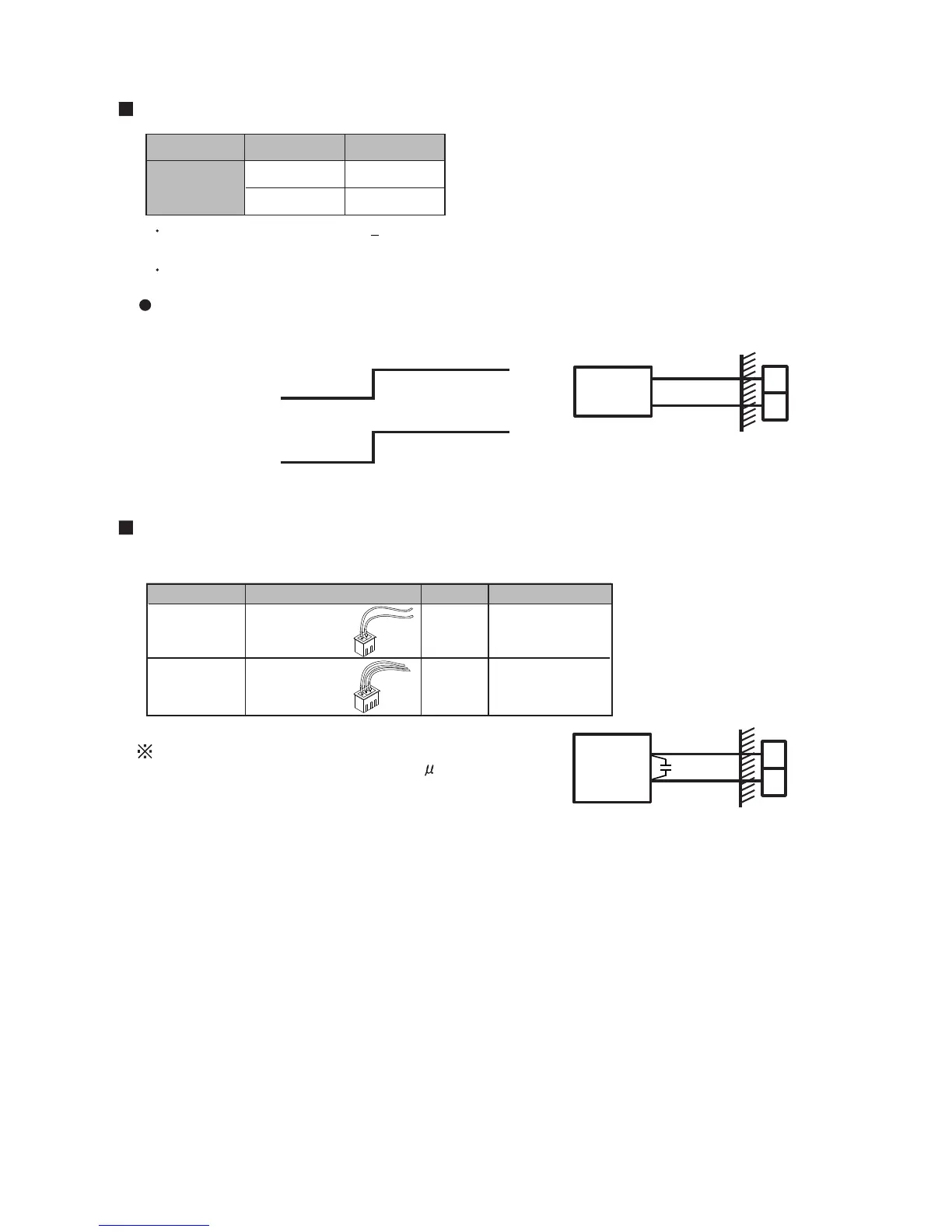

02-39
OUTPUT
CONNECTOR OUTPUT VOLTAGE STATUS
Operation12V
0V Stop
CN8
(WHITE)
Operation
CN 8
OUTPUT
Indoor
unit
1
2
CN 8
(WHITE)
+
-
Operation
Indicator
Operation
Indicator
12V
PARTS
Following cord (service parts) is required. Please use the parts number shown below
to order the cord from your sales representative.
Name and shapes Q'ty Parts No.
1
1
EXTERNAL
INPUT WIRE
EXTERNAL
INPUT WIRE
9368778002
9368779009
Usage
For output port
For control
input port
Operation display
Output voltage : Hi DC12V + 2V
Permissible current : 15mA
Lo 0V
Stop
0V
1
2
+
-
If the external indicator has malfunction, due to noise
please insert a ceramic capacitor (0.1 F 25V or more)
near the input port of the equipment.
The output for CN8 is ON when the indoor unit is operating.
The output is off when the unit is stopped.
