Chapter 1: Installation and wiring
2 Vigilant VS1 and VS2 Technical Reference Manual
Cabinet box installation
The cabinet box can be surfaced mounted or semiflush mounted.
To surface mount the cabinet box:
1. Position the cabinet box on the finished wall surface.
2. Fasten the cabinet box to the wall surface where indicated.
To semiflush mount the cabinet box:
1. Frame the interior wall as required to support the full weight of the cabinet and
standby batteries.
2. Install a semiflush trim ring (optional) to the cabinet.
3. Fasten the cabinet box to the framing studs where indicated.

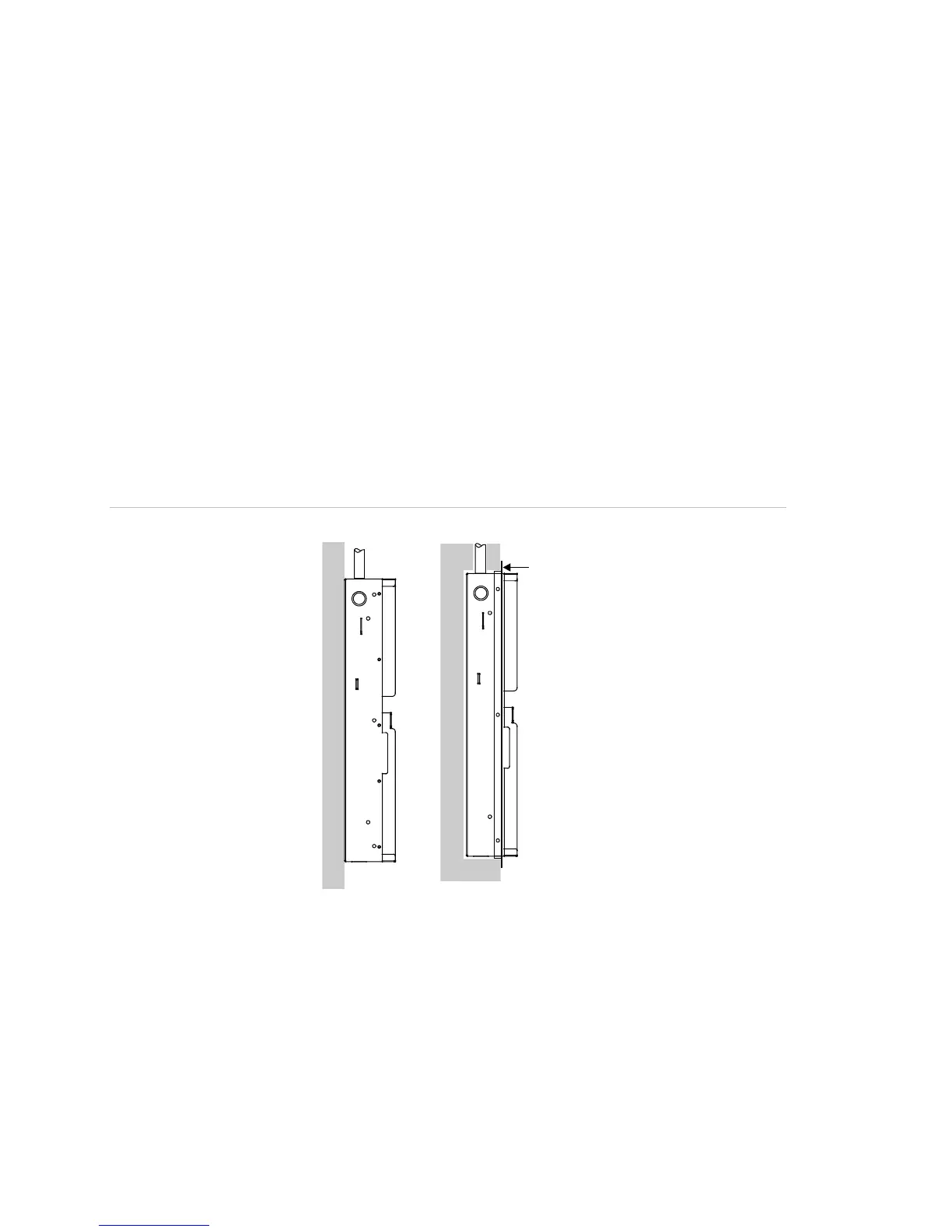

Figure 1: Surface and semiflush mounting details
ur
ace mount
emi
lush mount
Trim rin
